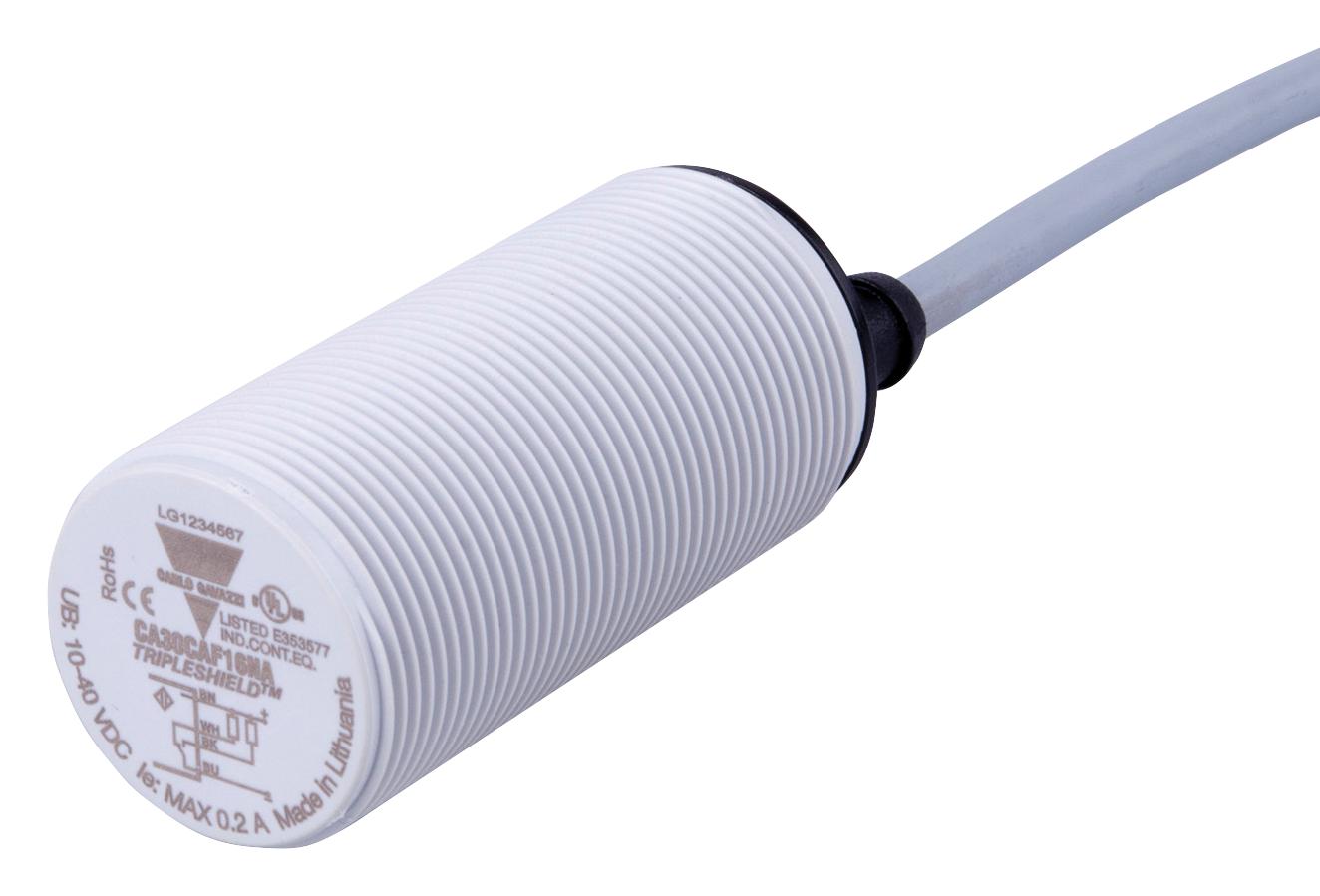

CARLO GAVAZZI CA30CAF16PA Capacitive Proximity Sensor
The CA30CA capacitive proximity switches feature an advanced 4th Generation TRIPLESHIELD™ technology, offering increased immunity to electromagnetic interference, humidity, and dust. Their robust thermoplastic polyester housing is rated IP69K, ECOLAB-approved, and suitable for high-pressure washdowns. The sensors detect both metallic and non-metallic objects with adjustable sensing distances between 2 and 30 mm, either flush or non-flush mounting. With LED indicators for power, stability, and output, they are ideal for industrial automation, packaging, and material detection applications. Optional dust and temperature alarms enhance reliability in harsh environments.
CARLO GAVAZZI CA30CAF16PA Capacitive Proximity Sensor Specifications:
- Housing Material: Thermoplastic Polyester
- Housing Diameter: 30 mm
- Protection: IP69K, IP67, NEMA 1, 2, 4, 4X, 5, 6, 6P, 12
- Rated Operating Voltage: 10-40 VDC
- Output: NPN or PNP, NO & NC, 200 mA
- Sensing Distance: 2-30 mm, adjustable
- Sensitivity Adjustment: via potentiometer
- Response Time: <10 ms ON-ON, <10 ms ON-OFF
- Temperature Range on Face: Up to 120°C
- Temperature Alarm: 60°C ± 5°C
- Environmental: Suitable for wash-down, high-pressure cleaning, vibration, shock-resistant
- Certifications: cULus, CE, ECOLAB approval
- Connections: Cable PVC, 2m, or M12 connector, 4-pin
- Vibration & Shock: IEC compliant; vibration 10-150Hz, shock 2m from 1m height
- Degree of Pollution: 3
- Installation: Suitable for industrial environments, with correct cable strain relief
Buy the Buy Carlo Gavazzi Capacitive Proximity Part Number CA30CAF16PA Online
Secure your industrial detection applications with Carlo Gavazzi's capacitive proximity sensor CA30CAF16PA, featuring adjustable sensing distance up to 30 mm, high immunity to EMI, humidity, and dust, IP69K rated housing, and compliance with industry standards. Perfect for detecting plastics, liquids, ceramics, and other non-metallic materials in demanding environments. The sensor offers easy installation with LED indicators, sensitivity adjustment, and robust construction, ensuring operational reliability in chemical, packaging, wood, and glass industries. Order online today for fast, dependable delivery and enhanced process efficiency.
Buy Carlo Gavazzi CA30CAF16PA now and experience unmatched reliability and industrial-grade performance for your non-metallic object detection needs.
