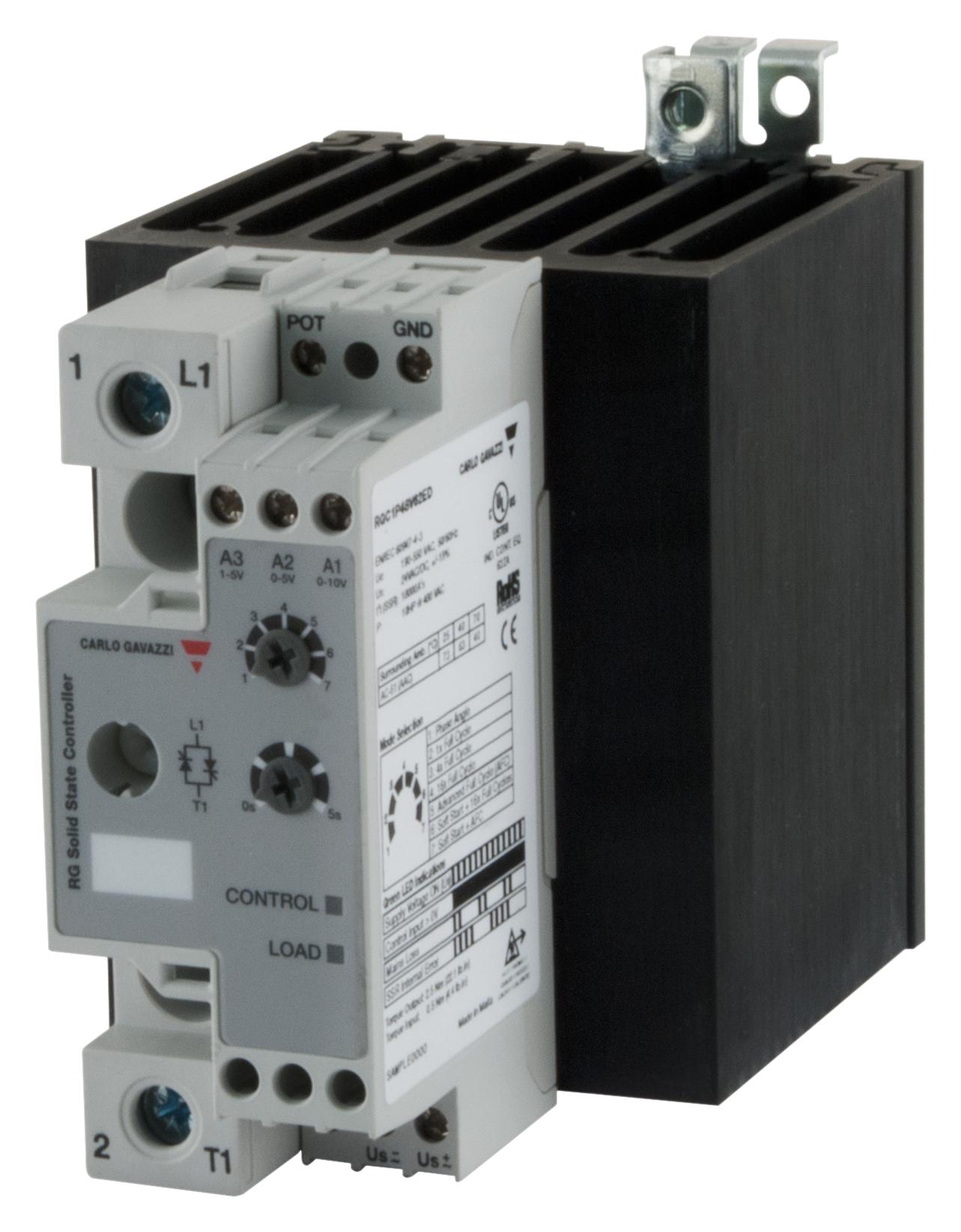

CARLO GAVAZZI RGC1P60V62ED Solid State Relay
The RGC1P series of solid state contactors feature integrated heatsinks, enabling precise control of 1-phase loads with an analog input. Suitable for controlling infrared heaters and soft starting applications, these relays support multiple switching modes including phase angle, full cycle, advanced full cycle, and soft start. They are protected against overvoltages, have LED indicators for status, and offer selectable control inputs such as 4-20 mA, 0-10 V, and external potentiometers. Suitable for high voltage (up to 660 VAC) and current applications up to 63 AAC, these relays are ideal for industrial automation and precise load control.
CARLO GAVAZZI RGC1P60V62ED Solid State Relay Specifications:
- Operational Voltage Range: 85-265 VAC, 190-550 VAC, 410-660 VAC
- Rated Operational Current: 12 AAC, 30 AAC, 42 AAC, 50 AAC, 62 AAC
- Blocking Voltage: 800 Vp (RGC1P23), 1200 Vp (RGC1P48, 60)
- Leakage Current: <5 mAAC at rated voltage
- Integrated Varistor Protection on Output
- Control Inputs: 4-20 mA, 0-10 V, 0-5 V, 1-5 V, external potentiometer
- Input Impedance: 100k ohms (V model)
- Supply Voltage: 24 VDC ±15%, 90-250 VAC, 410-660 VAC
- Ambient Temperature: -40°C to +70°C
- Protection Degree: IP20
- Impact Resistance: 15/11 g/ms
- Vibration Resistance: 2g per axis (IEC 60068-2-6)
- Relative Humidity: 95% non-condensing @ 40°C
- UL Short Circuit Current Rating: 100kA
Buy the Carlo Gavazzi Series RGC1P Control: RGC1P60V62ED
Secure your industrial automation needs with the Carlo Gavazzi RGC1P60V62ED solid state relay. Featuring integrated heatsink, multiple switching modes including soft start, and high voltage support up to 660 VAC, this relay offers precise control for 1-phase loads. Its protection features, LED indicators, and a wide control input range make it ideal for controlling infrared heaters and soft start applications. Available for online purchase today, ensuring high performance, safety, and durability for your manufacturing and control systems.
Buy Carlo Gavazzi RGC1P60V62ED now and experience unmatched reliability and performance for industrial load control and infrared heater applications.
