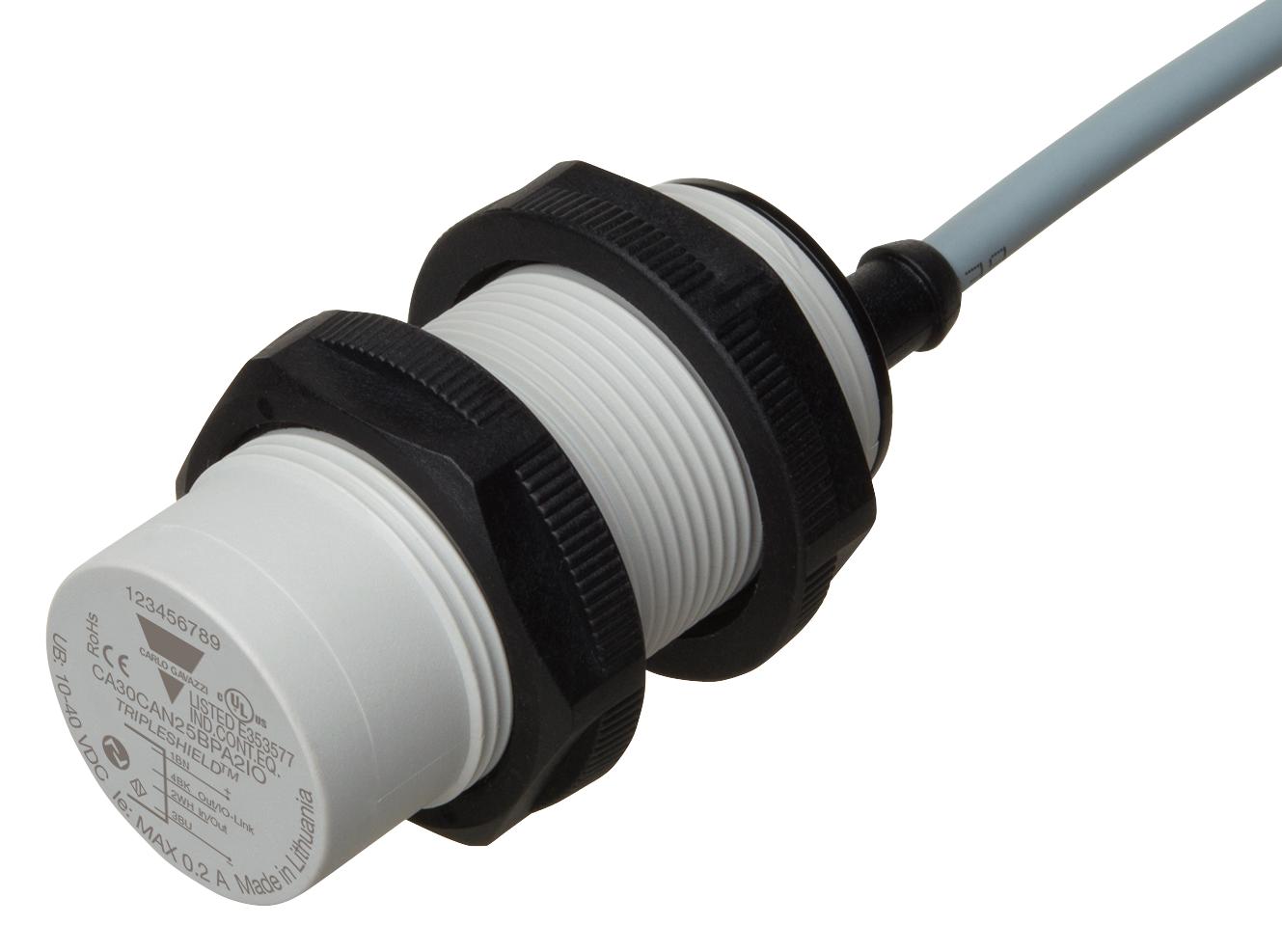

CARLO GAVAZZI CA30CAN25BPA2IO Capacitive Proximity Sensor
The CA30CAN25BPA2IO is a high-performance capacitive proximity sensor suitable for detecting solid or liquid targets in industrial environments such as plastic, rubber, agriculture, food, and material handling. Featuring IP69K protection and ECOLAB approval, it withstands harsh cleaning agents and disinfection processes. Equipped with advanced |O-Link communication, the sensor offers customizable settings, multiple detection modes, timers, and analogue output for precise control. Its robust construction and electromagnetic immunity ensure reliable operation in demanding industrial applications.
CARLO GAVAZZI CA30CAN25BPA2IO Capacitive Proximity Sensor Specifications:
- Housing material: PBT, grey, 30% glass-reinforced
- Cable type: 2m, 4-wire PVC, @5.2 mm diameter, oil-proof
- Connection: M12 x 1, 4-pin male connector
- Detection distance: 16 mm (flush), 25 mm (non-flush)
- Operating voltage: 10-40 VDC, ripple 510%
- Output type: configurable as PNP / NPN / Push-Pull / External input
- Response time: OFF-ON < 10 ms, ON-OFF = 10 ms
- IP rating: IP67, IP68/60 min., IP69K tested for high-pressure washdown
- Temperature range: -30°C to +85°C, max. sensing face temperature: 120°C
- Vibration: 10-150 Hz, 1mm / 15G; Shock: 30 G/11 ms
- Compliance: EN60947-5-2, EN60947-1, CE marked
- Ingress Protection: IP69K for wash-downs, dust tight
- Communication: |O-Link 1.1, profile 2nd edition, 38.4 kbaud
- Power supply: 10-40 VDC, <20mA, ripple 510%
- Dimensions: M30 x 1.5 mm thread, 59.5 mm length (flush), 45.5 mm length (non-flush)
- Weight: 190g (cable version), 106 g (plug version)
Buy the Gavazzi CA30CAxxBPxIO – Reliable Capacitive Proximity Sensor for Industrial Applications
Purchase the Gavazzi CA30CAxxBPxIO capacitive proximity sensor today for reliable detection of solids and liquids in harsh industrial settings. Featuring IP69K protection, ECOLAB approval, and advanced |O-Link communication, this sensor ensures precise operation with configurable detection modes, timers, and analogue output. Its robust PBT housing withstands high-pressure washdowns, dust, and temperature extremes, making it ideal for food, agriculture, plastic, and material handling applications. Easy to install, customize, and operate, this sensor is an essential component for ensuring accuracy and efficiency in your industrial processes.
Get Gavazzi CA30CAxxBPxIO today—built for precision, durability, and easy communication in demanding industrial environments.
