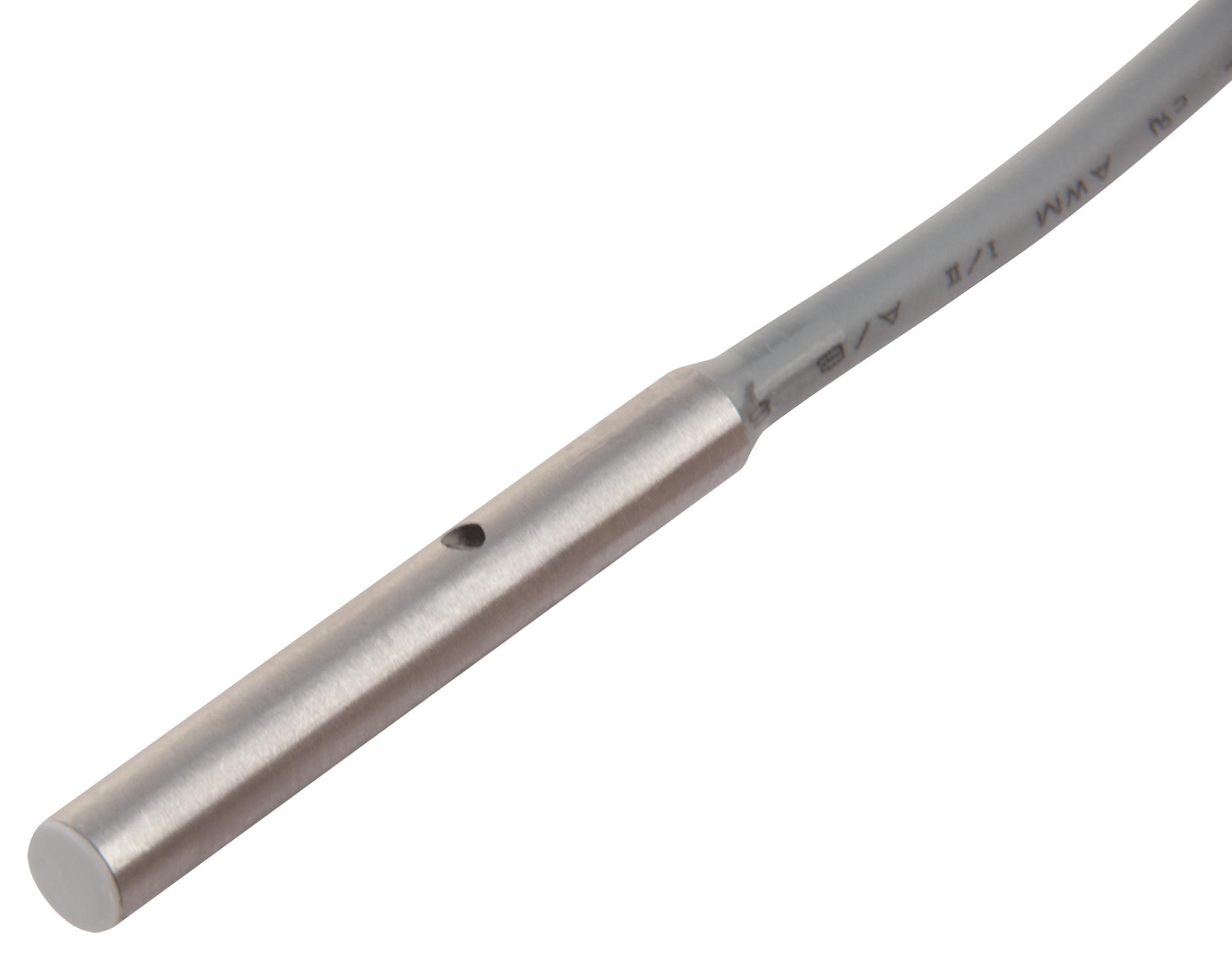

CARLO GAVAZZI IBS04SF08A2PO Inductive Proximity Sensor
The IBS04 and ICS05 series are compact inductive proximity sensors with IO-Link communication, designed for space-constrained industrial automation. Enclosed in robust stainless steel housings, they feature high-speed detection up to 6 kHz, with adjustable sensing distances of 0.8 to 1.3 mm. The sensors support both switch and IO-Link modes, with configurable outputs (PNP/NPN) and integrated diagnostics. Easy flush mounting, flexible connection options, and environmental stability ensure reliable performance in various industrial applications including tool selection and robotic sensing.
CARLO GAVAZZI IBS04SF08A2PO Inductive Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output Current: Up to 100 mA
- Response Time: Up to 6 kHz
- Detection Distance: 0.8 mm (standard range), 1.3 mm (extended range)
- Housing Material: Stainless steel AISI304
- Protection Class: IP67
- Operating Temperature: -25°C to +70°C
- Vibration Resistance: 10-55 Hz, amplitude 1.0 mm
- Shock Resistance: 30 G/11 ms
- Connection: 2m PVC cable or M8 plug, 3-pin
- Communication: IO-Link V1.1, configurable via master
- Weight: Cable version: 33.1g (4 mm), 35.4g (M5); Plug version: 5.6g (4 mm), 7.6g (M5)
Buy the Carlo Gavazzi Series ICS05 Inductive Proximity Sensor: IBS04SF08A2PO
Experience reliable and high-speed detection with the compact stainless steel inductive proximity sensor from Carlo Gavazzi. Featuring IO-Link communication, adjustable sensing distances, and versatile connection options, this sensor is ideal for industrial applications demanding precision and environmental resilience. Easy to install and configure, it offers enhanced stability and diagnostic functions to ensure continuous operation in demanding settings. Upgrade your automation system with this durable, space-saving sensor designed for tool selection, robotic sensing, and micro-mechanism control.
Get Carlo Gavazzi IBS04SF08A2PO today—built for precision, durability, and flexible mounting in industrial automation.
