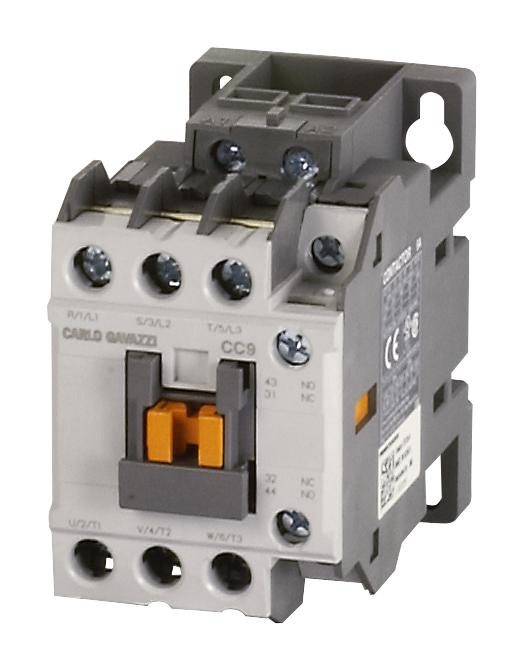

CARLO GAVAZZI CC18SA240 Industrial Control Contactor
The CC18SA240 is a versatile 3-pole contactor designed for industrial switching applications. It features screw terminals, a finger-proof design, and supports both AC and DC control voltages. Suitable for use in automation systems, it is DIN rail or screw mountable with front and side mounting accessories available. Capable of handling up to 690V and various current ratings, it includes built-in auxiliary contacts, overload relay compatibility, and meets IEC/EN and UL standards for safety and reliability.
CARLO GAVAZZI CC18SA240 Industrial Control Contactor Specifications:
- Type: 3-pole NO main contact with finger-proof design
- Voltage Ratings: 690V AC, 1000V DC
- Control Voltage: 24V to 600V AC/DC (various options)
- Rated Operational Voltage: 690V
- Rated Insulation Voltage: 690V
- Rated Impulse Withstand Voltage: 6kV
- Operational Life: 1 million operations
- Construction: DIN rail or screw mountable, front/side accessories available
- Auxiliary Contacts: 1NO+1NC standard
- Maximum Conductors: 2 solid or stranded wires, size AWG 16-10 or mm2 1.5-10
- Standards: IEC/EN 60947-4-1, UL, CE certified
- Degree of Protection: IP20
- Ambient Temperature: -5°C to +60°C
- Operating Altitude: up to 3000m
- Weight: Approximately 0.5kg
- Connection Terminals: Screw type
- Mounting Options: DIN rail or screw mounting
- Suitable for automation, control panels, and industrial machinery
Buy the Gavazzi Series CC18SA240 Contactors: 690V AC/DC Control
Enhance your automation control with the Gavazzi Series CC18SA240 industrial control contactor. Designed for durability and versatility, it supports both AC and DC control voltages up to 690V, featuring screw terminals and auxiliary contacts. Easy to install with DIN rail or screw mounting options, it meets IEC and UL standards for safety and performance. This contactor is ideal for controlling motors, machinery, and automation systems in various industrial applications. Reliable, safe, and efficient, it is the perfect addition to your control panels and automation setups.
Order your Gavazzi Series CC18SA240 contactor today and give your industrial automation projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI CC18SA240?
You can click on the BUY or RFQ button to purchase CC18SA240 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part CC18SA240?
You can download the CC18SA240 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of CC18SA240?
CARLO GAVAZZI
