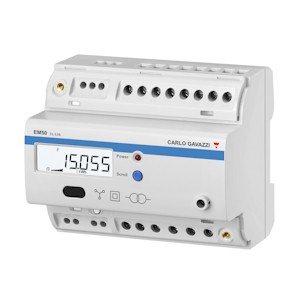

CARLO GAVAZZI EM50DINAV53HRSX Three-Phase Energy Analyzer
The CARLO GAVAZZI EM50DINAV53HRSX is a versatile three-phase energy analyzer ideal for building and industrial automation. It features flexible installation for various voltage levels, selectable communication protocols (Modbus RTU and BACnet MS/TP), and extended energy measurements including 4-quadrant reactive power and multi-tariff metering. The analyzer supports direct voltage connection up to 600 V L-L and current measurement via various methods including current transformers and Rogowski coils. It's particularly suited for energy efficiency monitoring, cost allocation, and fiscal/legal sub-billing, especially where Measurement Canada approval is required.
CARLO GAVAZZI EM50DINAV53HRSX Three-Phase Energy Analyzer Specifications:
- Protection degree: Front: IP40, Terminals: IP20
- Terminal type: Screw terminals, Voltage and current: max: 4 mm2, min: 0.2 mm2, Outputs and communication: max: 2.5 mm2
- Overvoltage category: Cat. III
- Pollution degree: 2
- Noise rejection: 100 db, 45-65 Hz
- Mounting: DIN rail
- Weight: 340g
- Operating temperature: From -25 to +75 °C / from -13 to +167 °F
- Storage temperature: From -40 to + 85 °C / from -40 to +185 °F
- Voltage inputs: AV5, MV5, RG5, MA5
- Voltage connection: Direct or via VT
- Max VT ratio: 200000
- Rated voltage L-N: 100 to 347 V
- Rated voltage L-L: 100 to 600 V
- Voltage tolerance: -20%, +15%
- Overload: Continuous: 1.5 Un max
- Input impedance: ≤ 0.6 VA
- Frequency: 50/60 Hz
- Current connection: Via CT, Via 333 mV current sensor, Via Rogowski coil, Via 80 mA current sensor
- Max CT ratio: 50000
- Rated current: 5 A
- Minimum current: 0.05 A
- Maximum current: 10 A
- Start-up current: 5 mA
- Crest factor: 5 (Imax peak 25 A)
- Measurements: TRMS measurements of distorted waveforms
- Sampling: 3200 samples/s @50 Hz, 3840 samples/s @60 Hz
