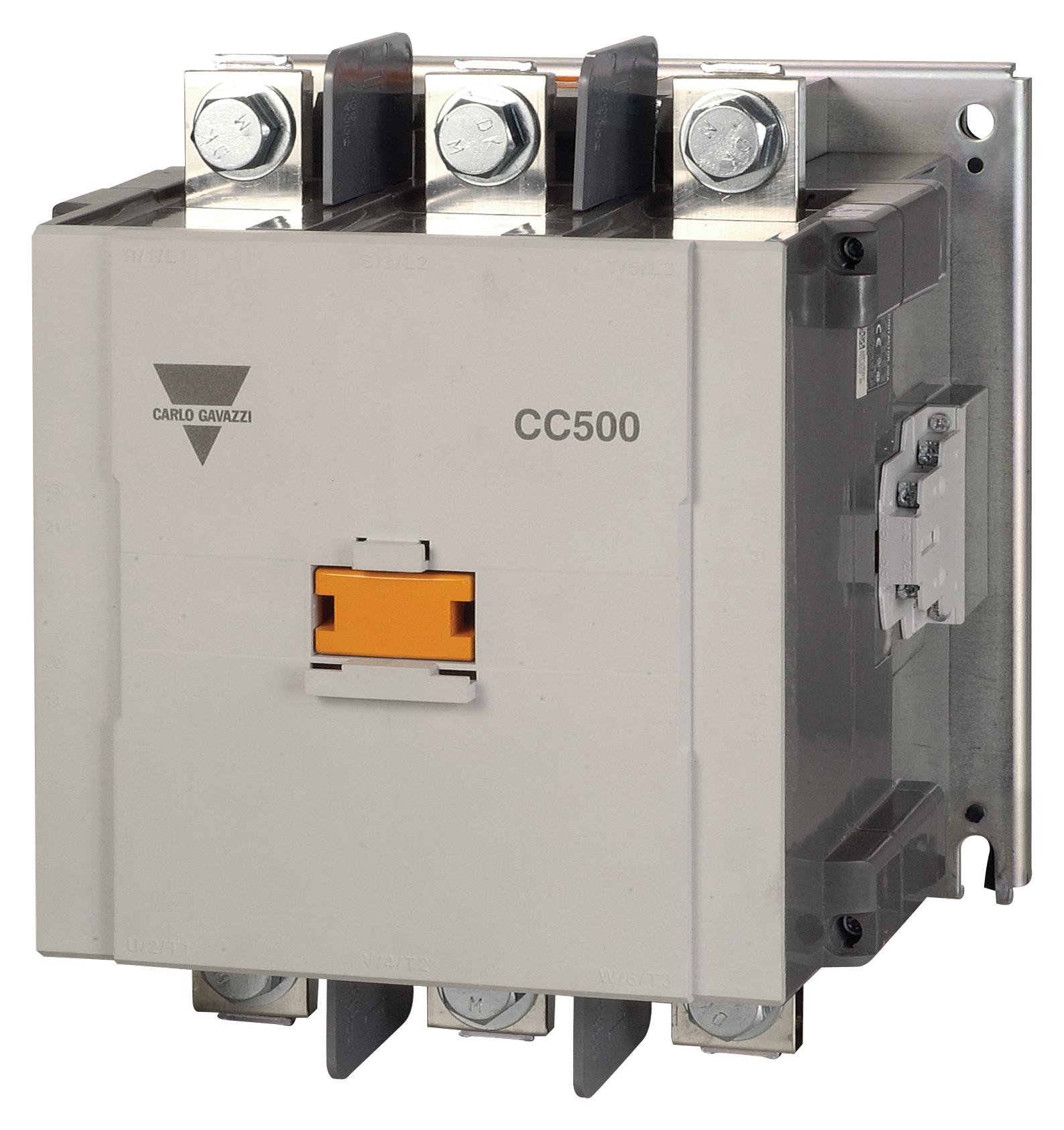

CARLO GAVAZZI CC500SAD200 Industrial Contactor
The CC500SAD200 is a high-capacity industrial contactor designed for heavy-duty electrical switching applications. It features a 3-pole NO main contact with finger-proof design, and auxiliaries including built-in 1NO1NC contact for enhanced control. Suitable for AC and DC control voltages, it is DIN rail or screw mountable, with front or side mountable accessories available. The device supports direct mounting of overload relays and accommodates conductor sizes up to 2 conductors. Rated for up to 690V, it offers reliable operation with robust construction for demanding industrial environments.
CARLO GAVAZZI CC500SAD200 Industrial Contactor Specifications:
- Poles: 3-pole NO main contact
- Rated operational voltage: 690V AC/DC
- Control voltage: 24V to 600V AC/DC various options
- Conductor size: Supports up to 2 conductors (solid/stranded)
- Mounting options: DIN rail or screw mounting, front or side mountable accessories
- Auxiliary contact: Built-in 1NO1NC as standard
- Control contact coil: AC/DC control voltage, pick-up voltage 85-110%, drop-out 30-60%
- Control coil power consumption: varies with voltage, approx. 9-58 VA at 20°C
- Mechanical durability: 5 million operations, electrical durability: 2.5 million operations
- Protection class: IEC conformity, CE and UL approved
- Ambient temperature: -25°C to +55°C
- Degree of protection: IP20
- Operational altitude: up to 3000m
- Size: Standard DIN rail or screw mount compatible
- Auxiliary units and accessories: Auxiliary contact units, surge absorbers, interlock units available
Buy the Gavazzi Series CC Contactor: CC500SAD200
Secure your control system with the Gavazzi CC500SAD200 industrial contactor, supporting up to 690V. This robust device features a 3-pole NO contact with finger-proof design, built-in auxiliaries, and multiple mounting options. Ideal for heavy-duty switching, it ensures reliable operation with a long lifespan, suitable for demanding environments. Easy to install with support for overload relays and various control voltages, the CC500SAD200 offers superior performance and flexibility tailored to industrial automation needs. Purchase online for dependable control solutions today!
Buy Gavazzi CC500SAD200 now and experience unmatched reliability and industry-grade performance for demanding control applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI CC500SAD200?
You can click on the BUY or RFQ button to purchase CC500SAD200 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part CC500SAD200?
You can download the CC500SAD200 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of CC500SAD200?
CARLO GAVAZZI
