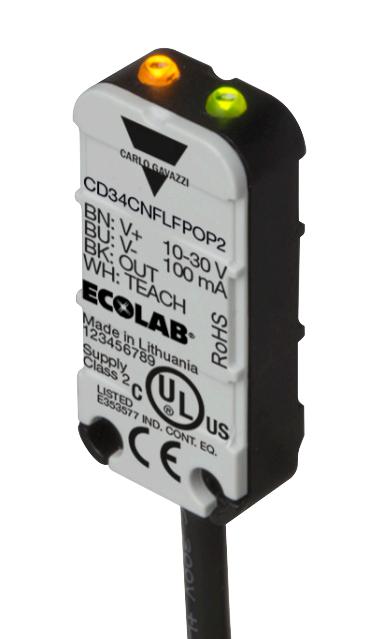

CARLO GAVAZZI CD34CNFLFPCT5 Capacitive Liquid Sensor
The capacitive sensor detects water-based liquids through non-metallic container walls with ease, automatically adapting to various wall thicknesses. Its compact, IP69K-rated housing makes it ideal for wash-down applications, and it features teach-in capabilities for customization. Equipped with LED indicators, it operates reliably with a supply voltage of 10 to 30 VDC, supporting NPN or PNP outputs. This versatile sensor is suitable for detecting liquids like water, milk, or body fluids, ignoring foam or film build-up, and handles conductive liquids up to 50 mS/cm conductivity. Its robust design ensures precision in industrial liquid level measurement, making it a dependable choice for demanding environments.
CARLO GAVAZZI CD34CNFLFPCT5 Capacitive Liquid Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output: NPN or PNP preset, Make or break switching function
- Output Current: 100 mA
- Protection: Reverse polarity, short circuit, transients
- Housing: Compact, IP69K-rated, body made of PC/PBT
- Sensing Surface: Recessed for enhanced detection
- Detection of liquids: Water-based fluids with conductivity up to 50 mS/cm
- Detection Wall Thickness: Plastic 0.5-6 mm (factory), up to 10 mm (manual setup); Glass 0.5-4 mm (factory), up to 10 mm (manual)
- Operating Temperature: -25°C to +80°C
- Dimensions: 8 x 16 x 34 mm
- Ingress Protection: IP69K and other IP ratings (IP65, IP66, IP67, IP68)
- EMC Compatibility: Meets IEC standards
- Certifications: UL, CE, Ecolab approval
- Installation: Universal mounting brackets, cable or pigtail options
- Teach-in Functionality: Full and empty calibration with LED indicators
Buy the Gavazzi CD34CNFLF – Reliable Capacitive Liquid Sensor for Industrial Applications
Order the Carlo Gavazzi capacitive liquid sensor today for reliable and precise detection of water-based fluids through non-metallic walls. This sensor features compact, IP69K-rated housing suitable for wash-down environments and easy universal mounting brackets. It supports teach-in calibration for full or empty tank detection, adjusting automatically to various wall thicknesses. With LED indicators, protection features, and support for NPN or PNP outputs, it ensures robust operation with high conductivity liquids up to 50 mS/cm. Perfect for industrial liquid level measurement in food, beverage, or pharmaceutical applications.
Get Carlo Gavazzi CD34CNFLF today—built for precision and long-lasting durability in demanding liquid detection environments.
