CARLO GAVAZZI CTG035 Core Balance Transformer
The CTG series core balance transformers are designed to monitor earth leakage currents from 0.03A to 30A, with a 1000/1 ratio. Available in various sizes from 35mm to 210mm internal diameter, they support 3-phase pass-through connections and operate at 50-60Hz frequency. These transformers feature a maximum system voltage of 720V AC and an insulation level of 3kV AC. Approved by CE and cUL when used with DMPUC-EL, they offer durable, reliable performance suitable for industrial earth leakage detection and alarm systems.
CARLO GAVAZZI CTG035 Core Balance Transformer Specifications:
- Current transformer ratio: 1000/1
- Internal diameter: 35mm, 70mm, 120mm, 210mm
- Earth leakage current range: 0.03A to 30A
- Operating frequency: 50-60Hz
- Max system voltage: 720V AC
- Rated insulation level: 3kV AC
- Dimensions: 64x74x40mm (35mm), 104x116x40mm (70mm), 154x169x40mm (120mm), 209x304x90mm (210mm)
- Primary connection: 3-phase pass through
- Connection type: Screw type 2 x 2.5mm²
- Protection degree: 1P20
- Approvals: CE, cUL (when used with DMPUC-EL)

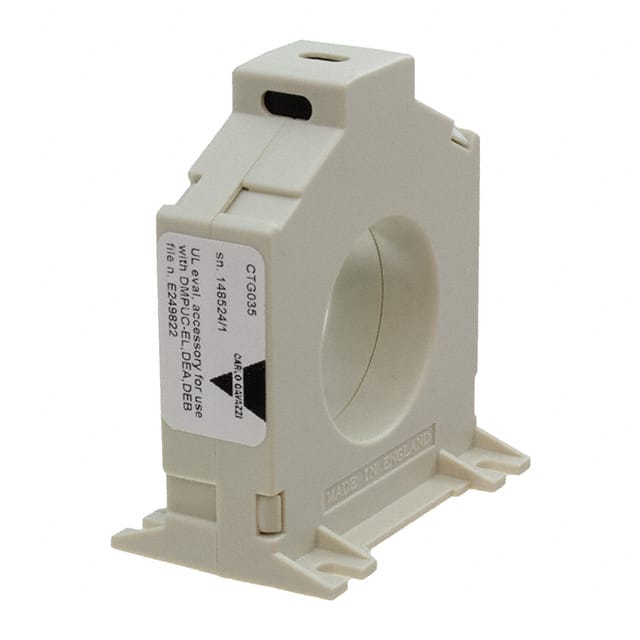

Buy the Carlo Gavazzi Series CTG Current Balance Transformer: CTG035
Order the Carlo Gavazzi CTG035 core balance transformer online now for dependable earth leakage detection. Designed with a 1000/1 ratio and available in 35mm size, it ensures precise current monitoring. Its robust construction features a maximum system voltage of 720V AC and CE and cUL approvals, making it suitable for safety-critical applications. Easy to install with screw connections, this transformer offers durability and accurate alarm set-point measurement for industrial safety systems. Purchase today for enhanced protection and reliable operation in your electrical installations.
Get Carlo Gavazzi CTG035 today—built for accurate earth leakage monitoring and reliable industrial safety performance.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI CTG035?
You can click on the BUY or RFQ button to purchase CTG035 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part CTG035?
You can download the CTG035 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of CTG035?
CARLO GAVAZZI
