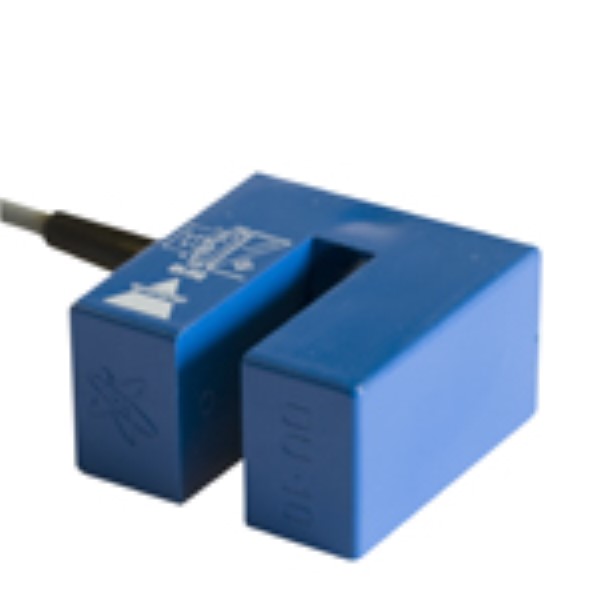

CARLO GAVAZZI DU6E Fork-shaped Proximity Sensor
The CARLO GAVAZZI DU6E is a robust fork-shaped inductive proximity sensor featuring an ABS housing, making it suitable for various industrial environments. It provides flexible sensing capabilities with slot sizes of 3.5, 5, 6, and 10 mm, and offers both NAMUR (DIN 19234) and transistor NPN output options. The sensor is designed for reliable object detection and is commonly used in automated manufacturing, material handling, and positioning applications. Its reverse polarity protection and transient voltage protection enhance its durability and operational safety.
CARLO GAVAZZI DU6E Fork-shaped Proximity Sensor Specifications:
- Rated operational voltage (Ue) (UB): NAMUR: 8.2 VDC, 7 to 9 VDC (6 to 35 VDC), Transistor NPN: 24 VDC (21.6 to 26.4 VDC)
- Self-inductance: ≤500µH
- Self-capacitance: ≤120 nF
- Ripple: ≤10%
- Rated operational current (Ie): ≤200 mA
- No-load supply current (Io): Activated: ≤1 mA, Not activated: ≥3 mA, Max.: 9.35 mA
- Voltage drop (Ud): DU 6 E: ≤2.0 V at max. load, DU 10 E: ≤1.0 V at max. load
- Protection: Reverse polarity (NPN version)
- Transient voltage: ≤1 kV/0.5 J (prepared)
- Power ON delay: None
- Frequency of operating cycles (f): DU 3.5/6: 2000 Hz, DU 5/10: 1000 Hz
- Size of test object (height x length x width): DU 3.5/5: 10 x 10 x 0.5 mm, DU 6/10: 16 x 20 x 1 mm
- Repeat accuracy (R): ≤10%
- Effective operating distance (Sr): 0.9 x Sn ≤ Sr ≤ 1.1 x Sn
- Usable operating distance (Su): 0.8 x Sr ≤ Su ≤ 1.2 x Sr
- Ambient temperature (Operating): -20° to +60°C (-4° to +140°F)
- Ambient temperature (Storage): -25° to +70°C (-13° to +158°F)
- Degree of protection: IP 67 (Nema 1,3,4,6,13)
- Housing material: Blue ABS
- Cable: DU 3.5/5: 2 m, 2 x 0.1 mm2, DU 6/10: 2 m, 2 x 0.25 mm2, grey PVC, oilproof, DU 6 E: 2 m, 3 x 0.25 mm2, DU 10 E: 2 m, 3 x 0.25 mm2, grey PVC, oilproof
- Weight (cable included): DU 3.5/5: 17 g, DU 6: 72 g, DU 10: 116g
- CE-marking: Yes
- Slot sizes: 3.5, 5, 6, 10 mm
- Power supply: 8.2 VDC (NAMUR), 24 VDC (NPN)
