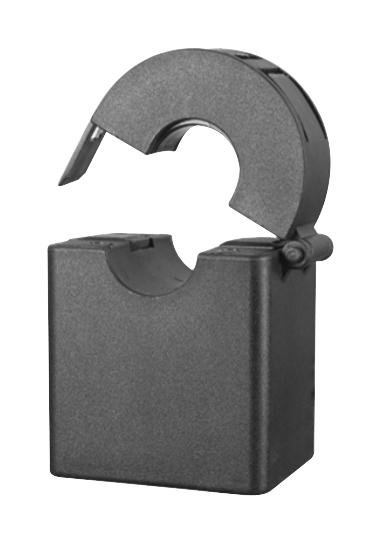

CARLO GAVAZZI CTV2X100A333MV Split Core Current Sensor
The split core current sensor is designed for quick and easy installation in residential, commercial, and industrial applications. It manages primary currents from 60 A to 800 A depending on the model, making it suitable for retrofit projects where disconnection of cables isn't feasible. With a compact design, 333 mV secondary output, and a cable length of 1.5m, it features detachable screw terminals on the CTV-8X model. Its broad compatibility and flexible installation options make it an ideal solution for energy monitoring systems and retrofitting existing electrical setups.
CARLO GAVAZZI CTV2X100A333MV Split Core Current Sensor Specifications:
- Material: PA66
- Protection Degree: IP20
- Cable: 24 AWG (0.3mm)
- Secondary Output Voltage: 333mV
- Operating Temperature Range: -40°C to +65°C
- Storage Temperature Range: -45°C to +80°C
- Maximum Continuous Current: 1.2xIn
- Rated System Voltage: 600 V ac
- Winding DC Resistance at 20°C: CTV1X: 560Ω max, CTV2X: 384Ω +10Ω, CTV3X: 160Ω, CTV4X: 130Ω, CTV6X: 90Ω +10Ω
- Insulation Class: A (105), UL 94V-0
- Dielectric Withstand Voltage: CTV1X, CTV2X: 2.5kV ac/4min, others: 3kV ac/1min
- Maximum Current: CTV1X: 60A, CTV2X: 100A, CTV3X: 200A, CTV4X: 400A, CTV6X: 400A, CTV8X: 800A
- Max Cable Diameter: 10 - 21 mm depending on model
- Max Busbar Size: up to 50 x 90 mm (CTV-8X)
- Mounting Hole Diameter: 9.5 to 36 mm, CTV-8X: 50 x 90 mm
- Cable Length: 1.5 m
- Certifications: CE Approved
Buy the Carlo Gavazzi Series CTV: Split Core Current Sensor 333mV with Part Number CTV2X100A333MV
Ensure efficient energy monitoring with the split core current sensor, suitable for retrofit in residential, commercial, and industrial environments. Easily install this compact device with detachable screw terminals, managing currents up to 800A. Its 333mV secondary output makes it compatible with energy analyzers like EM210 72 D MV, providing accurate readings without disconnecting existing wiring. Designed for durability and simplicity, this sensor enables quick deployment in various electrical systems, enhancing energy efficiency and operational safety with minimal disruption.
Order your Carlo Gavazzi Series CTV split core current sensor with 333mV output today and enhance your energy management projects with reliable and easy-to-install measurement tools.
