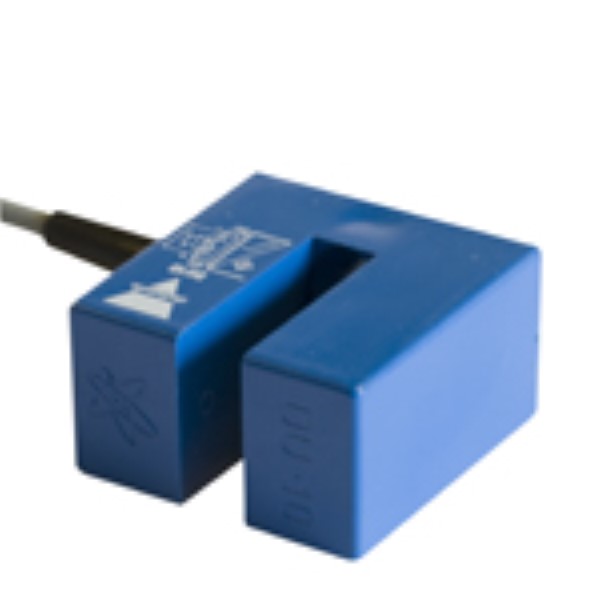

CARLO GAVAZZI DU5 Fork-Shaped Proximity Sensor
The CARLO GAVAZZI DU5 is a robust, fork-shaped inductive proximity sensor ideal for detecting metallic targets in industrial environments. Its ABS housing provides durability, while the available slot sizes (3.5, 5, 6, and 10 mm) allow for versatile application. The sensor supports both NAMUR (DIN 19234) and transistor NPN output configurations, catering to diverse system requirements. It is commonly used in automated manufacturing, material handling, and security systems where reliable and non-contact object detection is crucial.
CARLO GAVAZZI DU5 Fork-Shaped Proximity Sensor Specifications:
- Slot sizes: 3.5, 5, 6, 10 mm
- Power supply: 8.2 VDC (NAMUR), 24 VDC (NPN)
- Output: NAMUR (DIN 19234), Transistor NPN, normally open
- Protection: Reverse polarity (NPN version)
- Cable length: 2 m
- Rated operational voltage (Ue) (UB): 8.2 VDC (NAMUR), 24 VDC (Transistor NPN)
- Self-inductance: ≤500µH
- Self-capacitance: ≤120 nF
- Ripple: ≤10%
- Rated operational current (Ie): ≤200 mA
- No-load supply current (Io): Activated:≤1 mA, Not activated:≥3 mA, Max.: 9.35 mA
- Voltage drop (Ud): DU 6 E: ≤2.0 V at max. load, DU 10 E: ≤1.0 V at max. load
- Transient voltage: ≤1 kV/0.5 J (prepared)
- Power ON delay: None
- Frequency of operating cycles (f): DU 3.5: 2000 Hz, DU 5: 1500 Hz, DU 6: 2000 Hz, DU 10: 1000 Hz, DU 6 E: 2000 Hz, DU 10 E: 1000 Hz
- Size of test object (height x length x width): DU 3.5: 10 x 10 x 0.5 mm, DU 5: 10 x 10 x 0.5 mm, DU 6: 16 x 16 x 1 mm, DU 10: 16 x 20 x 1 mm, DU 6 E: 16 x 16 x 1 mm, DU 10 E: 16 x 20 x 1 mm
- Repeat accuracy (R): ≤10%
- Effective operating distance (Sr): 0.9 x Sn≤Sr≤1.1 x Sn
- Usable operating distance (Su): 0.8 x Sr≤Su≤1.2 x Sr
- Ambient temperature (Operating): -20° to +60°C (-4° to +140°F)
- Ambient temperature (Storage): -25° to +70°C(-13° to +158°F)
- Degree of protection: IP 67 (Nema 1,3,4,6,13)
- Housing material: Blue ABS
- Cable: DU 3.5: 2 m, 2 x 0.1 mm2, DU 5: 2 m, 2 x 0.1 mm2, DU 6: 2 m, 2 x 0.25 mm2, DU 10: 2 m, 2 x 0.25 mm2, grey PVC, oilproof, DU 6 E: 2 m, 3 x 0.25 mm2, DU 10 E: 2 m, 3 x 0.25 mm2, grey PVC, oilproof
- Weight (cable included): DU 3.5: 17 g, DU 5: 17g, DU 6: 72 g, DU 10: 116g, DU 6 E: 72 g, DU 10 E: 116g
- CE-marking: Yes
