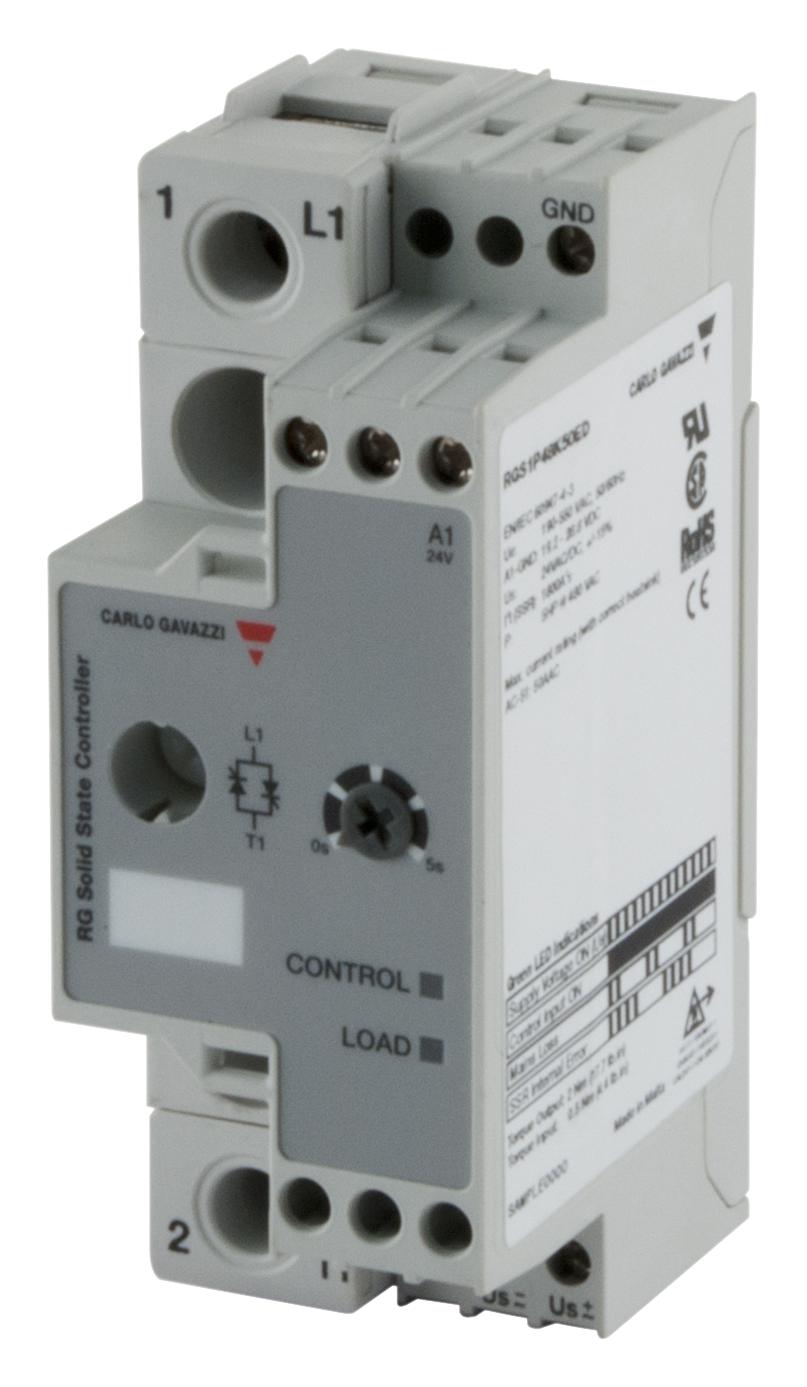

CARLO GAVAZZI RGS1P60K50ED Solid State Relay
The RGS1P60K50ED is a 1-pole solid state relay designed for soft start switching of loads such as short wave infrared heaters. It features a rated operational voltage of 410-660 VAC, control input of 24 VDC, and a rated current of up to 50 AAC. The relay includes integrated varistor protection, status LEDs for load and control, and offers adjustable soft start timing via an accessible potentiometer. Suitable for industrial applications, it conforms to UL508 and EN/IEC 60947-4-3 standards, providing reliable overload and short circuit protection for safe operation in demanding environments.
CARLO GAVAZZI RGS1P60K50ED Solid State Relay Specifications:
- Rated operational voltage: 410-660 VAC
- Rated operational current: 50 AAC
- Control input: 24 VDC
- Integrated varistor protection on output
- Operating frequency: 45 to 65 Hz
- Input voltage range: 19.2-28.8 VDC / 24 VAC (-15% / +15%)
- Maximum transient surge current: 600 A at 10ms
- Maximum junction temperature: 125°C
- Output leakage current: <5 mAAC at rated voltage
- Ingress Protection: IP20
- Dimensions: Housing width approximately 35mm, depth varies with mounting
- Weight: approximately 180g
- Compliance: UL508, EN/IEC 60947-4-3, IEC/EN 60947-4-3
- EMC Immunity: EN 61000-4-4, EN 61000-4-2, EN 61000-4-3
- Environmental temperature: -40°C to +70°C
- Vibration resistance: 2g (IEC 60068-2-6)
Buy the CARLO GAVAZZI RGS1P60K50ED – Reliable Soft Start Relay for Industrial Applications
Purchase the CARLO GAVAZZI RGS1P60K50ED solid state relay online today and benefit from dependable soft start switching for industrial loads. With a voltage range of 410-660 VAC and a rated current of 50 AAC, this relay is ideal for infrared heaters and other high-inrush appliances. It features integrated protection, adjustable soft start timing, and LED indicators for load and control status. Ensure safe, efficient operation in your demanding environment by ordering now for quick delivery and professional support.
Order your CARLO GAVAZZI Series RGS1P60K50ED relay today and ensure smooth, reliable startup for your infrared heating systems.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGS1P60K50ED?
You can click on the BUY or RFQ button to purchase RGS1P60K50ED from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGS1P60K50ED?
You can download the RGS1P60K50ED datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGS1P60K50ED?
CARLO GAVAZZI
