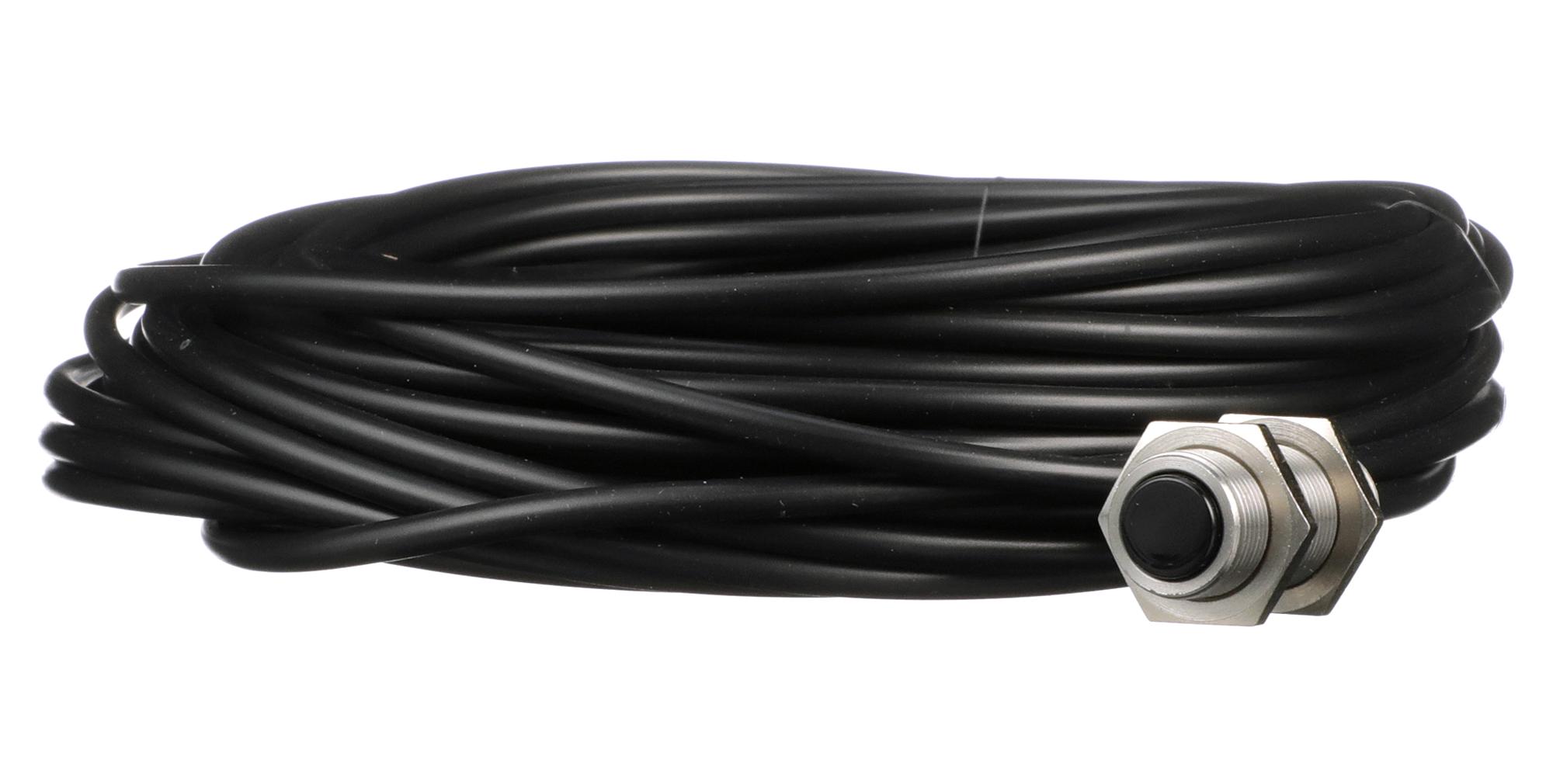

CARLO GAVAZZI MOFT20M148 Through-beam Photoelectric Switch
The MOFT small through-beam photoelectric switch features an 8° built-in lens with a rated operating distance of 20 meters. It employs modulated infrared light, providing high immunity to ambient light conditions. Designed for harsh environments, it has an IP66/IP67 protection rating and offers high penetration power. Compatible with amplifier series S142 and S143, it is suitable for demanding industrial applications. The package includes two switches (emitter and receiver) packed separately with two M14 nuts and a plastic bag, along with the part number MOFT20M148.
CARLO GAVAZZI MOFT20M148 Through-beam Photoelectric Switch Specifications:
- Built-in lens: 8°
- Range: 20 m
- Light source: GaAlAs LED, 880 nm
- Light type: Infrared, modulated
- Rated operational voltage (U.): 3 V (square wave) supplied by amplifier
- Supply current (Io): MOFT 20: <15mA, MOFT 20-5: <50mA, MOFT 20-8: <50mA
- Optical angle: +2°, +5°, +8°
- Housing material: Polycarbonate
- Protection: IP66/IP67
- Environmental temperature: -20°C to +60°C
- Vibration: 10-150 Hz, 0.5 mm
- Shock resistance: 2x1m & 100x0.5m
- Connection: 15 m shielded PVC cable
- Dimensions: Suitable for mounting with M14 nuts, cable length 15 m
- Indications: On amplifier
- Protection: Short-circuit, reverse polarity
Buy the Carlo Gavazzi MOFT20M148 – Reliable Photocell for Industrial Applications
Enhance your industrial sensing capabilities with the Carlo Gavazzi MOFT20M148 through-beam photoelectric switch. Featuring an 8° lens and a 20-meter range, it offers high immunity to ambient light and operate reliably in harsh environments with IP66/IP67 protection. It includes an emitter and receiver, each with durable mounting accessories. Ideal for automation, safety, and object detection, this sensor ensures high penetration power and consistent performance. Order online now for fast delivery and reliable operation in demanding industrial settings.
Order your Carlo Gavazzi Series MOFT20M148 small through-beam photoelectric sensor today and ensure precise, reliable detection in demanding industrial environments.
