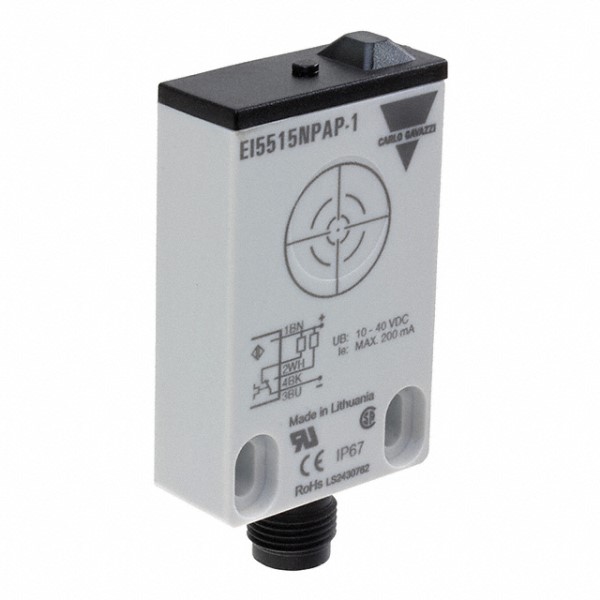

CARLO GAVAZZI EI5515NPAP1 Inductive Proximity Switch
The CARLO GAVAZZI EI5515NPAP-1 is a robust inductive proximity switch designed for reliable detection in demanding environments. Its polycarbonate housing provides excellent protection, while the IP67 rating ensures resistance to dust and water. Ideal for applications such as material handling, conveyor systems, and machine automation, this switch offers a sensing distance of 10-15mm and supports both NPN and PNP output configurations. Easy mounting and versatile connectivity options make it a convenient choice for a wide range of industrial needs.
CARLO GAVAZZI EI5515NPAP1 Inductive Proximity Switch Specifications:
- Sensing distance: 10 or 15 mm
- Rated operational voltage: 10 to 40 VDC
- Output: DC 200 mA, NPN or PNP
- Housing material: Polycarbonate
- Degree of protection: IP 67
- Ambient temperature: Operating -25° to +70°C
- Frequency of operating cycles: EI 5515: 250 Hz
- Assured operating dist.: 0 ≤ Sa ≤ 0.81 Sn
- Hysteresis: 1 to 15% of sensing distance
- EMC ratings: Acc. to EN 50 082-2
- Approvals: UL, CSA
- CE-marking: Yes
- Ripple: ≤ 10%
- Rated operational current: Continuous ≤ 200 mA
- No-load supply current: ≤ 7 mA
- Voltage drop: ≤ 2 VDC at max. load
- Power ON delay: ≤ 50 ms
- Repeat accuracy: ≤ 5%
- Effective operating dist.: 0.9 x Sn ≤ Sr ≤ 1.1 x Sn
- Usable operating dist.: 0.9 x Sr ≤ Su ≤ 1.1 x Sr
Buy the EI5515NPAP-1 CARLO GAVAZZI Inductive Proximity Switch | myMectronic
Purchase the CARLO GAVAZZI EI5515NPAP-1 securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy CARLO GAVAZZI EI5515NPAP1?
You can click on the BUY or RFQ button to purchase EI5515NPAP1 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part EI5515NPAP1?
You can download the EI5515NPAP1 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of EI5515NPAP1?
CARLO GAVAZZI
