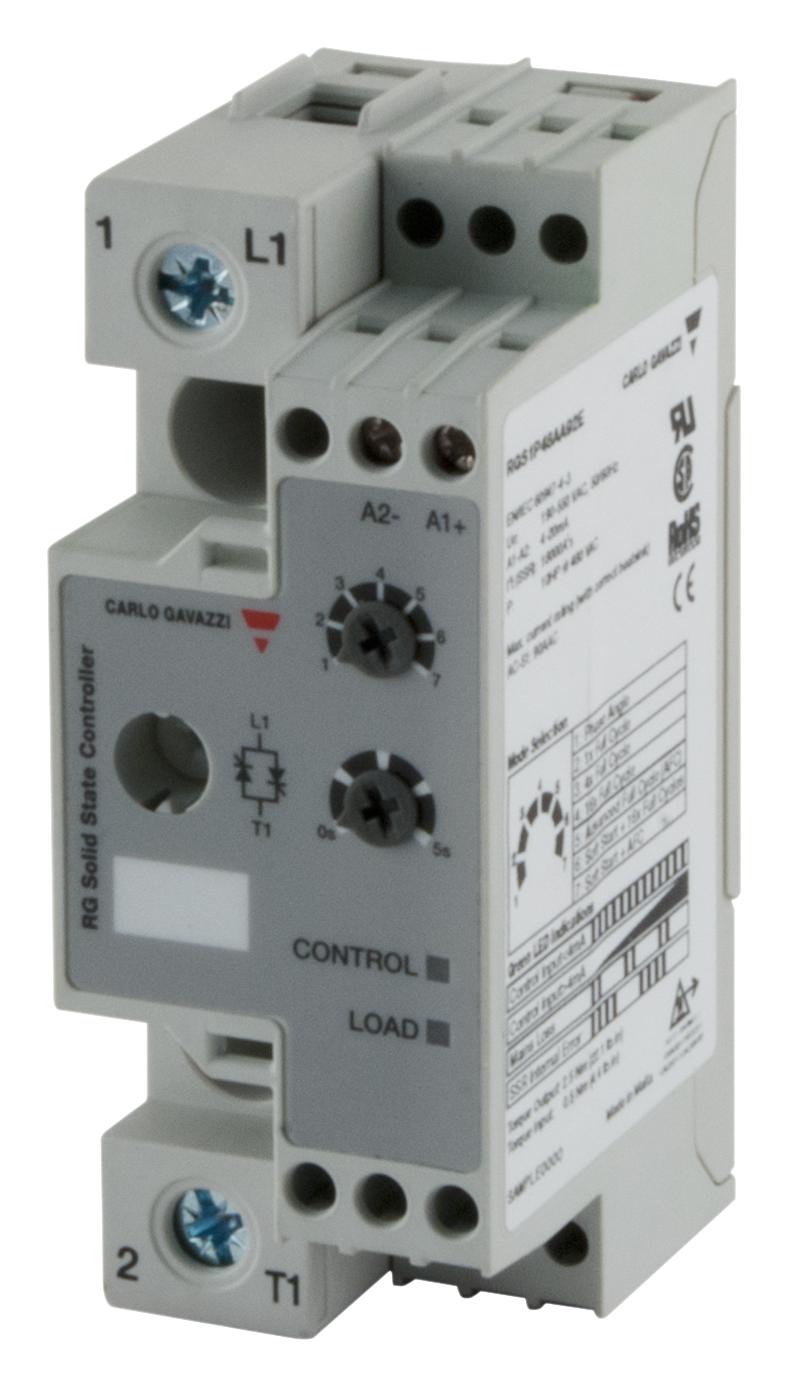

CARLO GAVAZZI RGS1P60AA92E Solid State Relay
The RGS1P series is a set of 1-phase solid state relays with proportional switching capabilities, designed for high efficiency control of loads up to 660 VAC and 90 AAC. Suitable for applications requiring phase angle, full cycle, advanced full cycle, soft start, or combined switching modes, these relays feature integrated overvoltage protection via varistors, LED status indicators, and control via multiple inputs including 4-20 mA, 0-10 V, and external potentiometers. Mountable on chassis or heatsinks, they ensure reliable operation in industrial systems with adjustable parameters for optimized load management and inrush current limiting.
CARLO GAVAZZI RGS1P60AA92E Solid State Relay Specifications:
- Operational Voltage Range: 85-265 VAC / 190-550 VAC / 410-660 VAC depending on model
- Rated Operational Current: up to 90 AAC
- Blocking Voltage: 800 Vp /1200 Vp
- Leakage Current: <5 mAAC
- Protection: Integrated varistor across output and overload protection features
- Switching Modes: Phase angle, 1x, 4x, 16x full cycle, advanced full cycle, soft start, and combined modes
- Control Inputs: 4-20 mA, 0-10 V, 0-5 V, 1-5 V, external potentiometer with 10kΩ resistance
- Input Pickup Voltage: 0-5 VDC or 0-10 VDC with specific dropout at 0.05-1.02 VDC
- Control Input Impedance: 100kΩ (for voltage inputs)
- Power Factor: >0.7 at rated voltage
- Operating Frequency Range: 45-65 Hz
- Enclosure Protection: IP20, suitable for industrial environments
- Ambient Operating Temperature: -40°C to +70°C
- Housing Material: PA66, RAL7035 color
- Standards & Approvals: UL, cUL recognized, CSA, IEC/EN 60947-4-3
- Dimensions: Vary by model, approx. 35-51 mm width, depth 28-51 mm
Buy the Buy Carlo Gavazzi Solid State Relay Part Number RGS1P60AA92E Online
Enhance your industrial automation with the Carlo Gavazzi Solid State Relay RGS1P60AA92E, designed for controlling loads up to 660 VAC and 90 AAC. With multiple switching modes including phase angle, full cycle, advanced full cycle, and soft start, it provides precise load management, overload protection, and LED indicators for easy status monitoring. Mountable on chassis or heatsinks, these relays ensure durability and reliability for demanding applications. Purchase online now for efficient, safe, and seamless load control.
Buy Carlo Gavazzi RGS1P60AA92E now and experience unmatched reliability and performance for high-current industrial control applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGS1P60AA92E?
You can click on the BUY or RFQ button to purchase RGS1P60AA92E from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGS1P60AA92E?
You can download the RGS1P60AA92E datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGS1P60AA92E?
CARLO GAVAZZI
