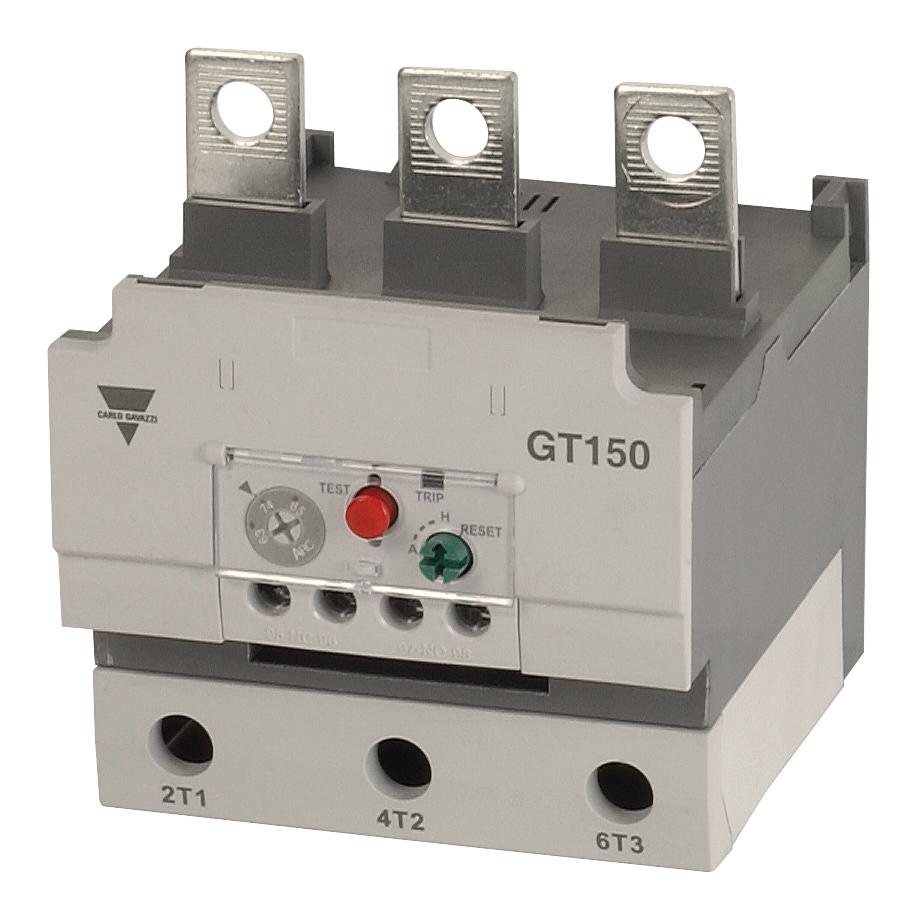

CARLO GAVAZZI GT150L130A Bimetallic Overload Relay
The GT150L130A is a bimetal-style overload relay designed for protecting AC circuits and motors against overloads, phase failure, and stalling. It features manual and automatic reset options, trip indication, and a temperature compensation range of -5°C to +40°C. Compatible with contactors, it supports rated operational voltages up to 690V, rated insulation voltage of 690V, and rated impulse voltage of 6kV. This relay offers reliable thermal overload protection with a trip class of 10, making it suitable for various industrial motor control applications.
CARLO GAVAZZI GT150L130A Bimetallic Overload Relay Specifications:
- Rated operational voltage: up to 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6kV
- Degree of protection: IP 20 (IEC 60 529)
- Temperature compensation: -5°C to +40°C
- Trip class: 10
- Number of poles: 3
- Functions: Trip indication, Stop, Test, Manual/Automatic Reset
- Setting range: 34-150A
- Rated current: 34-150A
- Applied contactors: CC130, CC150
- Terminal type: Screw Clamp or Lug
- Rated operation current: 0.1 to 0.4A depending on model
- Wire size: AWG 10-8
- Dimensions and weight vary per model; for GT150L130A, weight approximately 284g
Buy the Buy Gavazzi GT150L130A Part Number GT150L130A Online
Secure your industrial motor systems with the Gavazzi GT150L130A overload relay, engineered for accurate overload protection up to 690V. Featuring manual and automatic reset options, trip indication, and temperature compensation from -5°C to +40°C, this relay provides dependable control and safety. It is suitable for various contactors in industrial environments, ensuring optimal circuit protection. Easily order online and enhance your electrical safeguarding with Gavazzi's precision-designed overload relays for reliable and efficient motor management.
Order your Gavazzi GT150L130A overload relay today and ensure reliable motor protection with manual and automatic reset features for industrial applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI GT150L130A?
You can click on the BUY or RFQ button to purchase GT150L130A from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part GT150L130A?
You can download the GT150L130A datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of GT150L130A?
CARLO GAVAZZI
