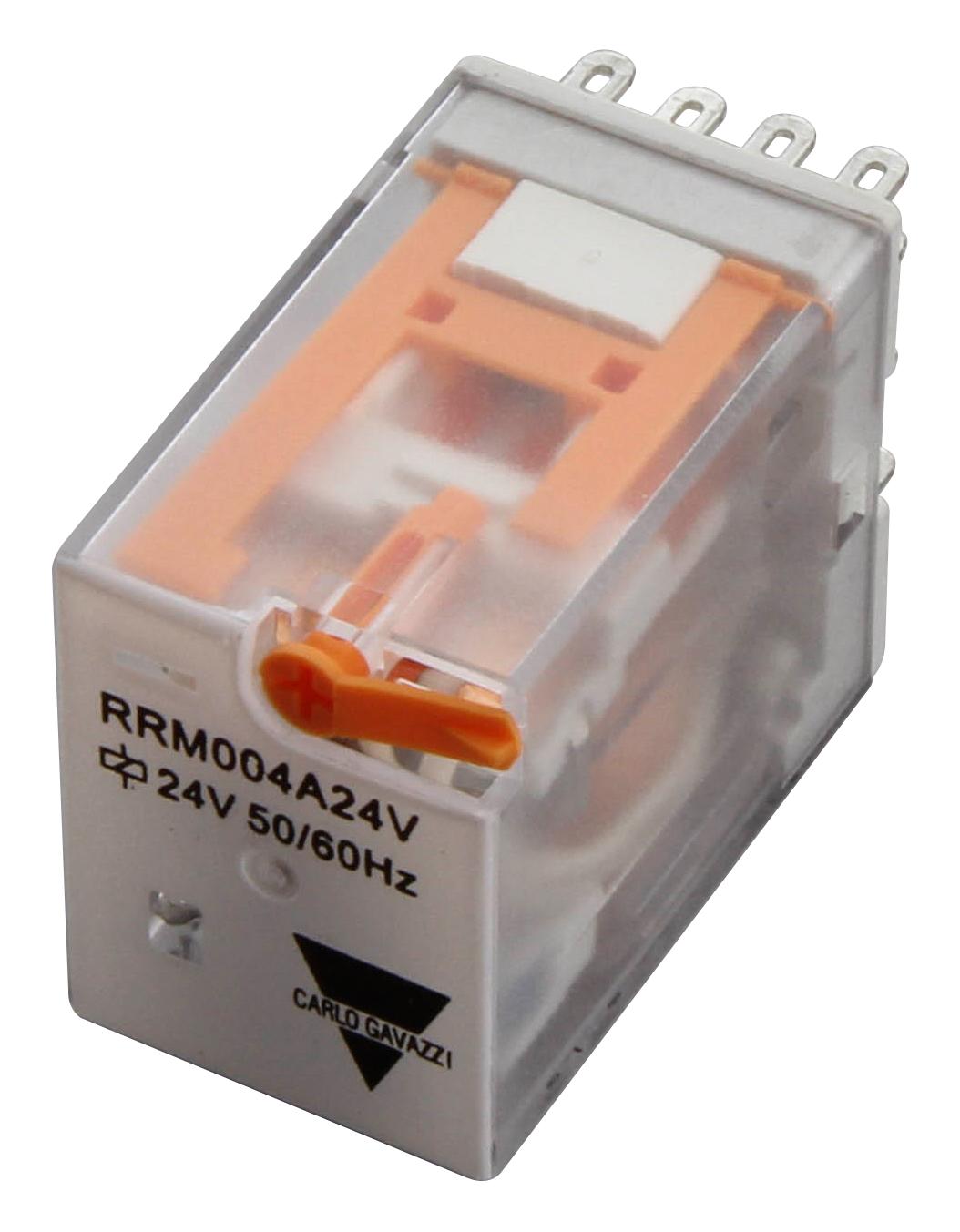

CARLO GAVAZZI RRM004A24V Industrial Relay
The RRM is an industrial monostable relay designed for reliable switching in automation systems, available with 2 or 4 change-over contacts and rated at 10A. It features socket mounting options, LED indicators, and test flags for easy operation and testing. Suitable for applications requiring electrical life of 100,000 cycles and mechanical life of 10 million cycles, it supports voltages up to 250 VAC/VDC. The relay is UL, CSA, CE, and ROHS approved, ensuring compliance with safety standards. It is ideal for industry automation and control systems requiring robust relay performance.
CARLO GAVAZZI RRM004A24V Industrial Relay Specifications:
- Type: Monostable relay with 2 or 4 change-over contacts
- Contact Rating: 10A at 250VAC / 30VDC
- Switching Voltage: Up to 250 VAC/VDC
- Coil Voltage: 12 ~ 240 VAC or 12 ~ 110 VDC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Mounting: DIN socket with two terminal layout options
- Indicators: Standard LED, push arm, test flag
- Approval: UL, CSA, CE, ROHS
- Reaction Time: <20ms for close and open
- Insulation Voltage: 2500 VAC between coil and contact
- Operational Temperature: -40°C to +70°C
- Operating Humidity: 35% to 85%
- Dimensions: compatible with DIN-rail mounting, specific size varies
- Certifications: UL Listed, CSA Certified, CE Compliant, ROHS compliant
Buy the Buy Carlo Gavazzi Industrial Relay Part Number RRM004A24V Online
Purchase the Carlo Gavazzi industrial relay RRM004A24V online today for reliable switching in automation and control applications. Designed with 4 change-over contacts rated at 10A, it supports voltages up to 250 VAC/VDC and features socket mounting, LED indicators, and test flags for easy operation. Approved by UL, CSA, CE, and ROHS, this relay offers electrical life of 100,000 cycles and mechanical life of 10 million cycles. Order now and enhance your industrial equipment with a durable, high-performance relay designed for continuous operation and safety compliance.
Get Carlo Gavazzi RRM004A24V today—built for precision and long-lasting durability in industrial automation systems.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RRM004A24V?
You can click on the BUY or RFQ button to purchase RRM004A24V from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RRM004A24V?
You can download the RRM004A24V datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RRM004A24V?
CARLO GAVAZZI
