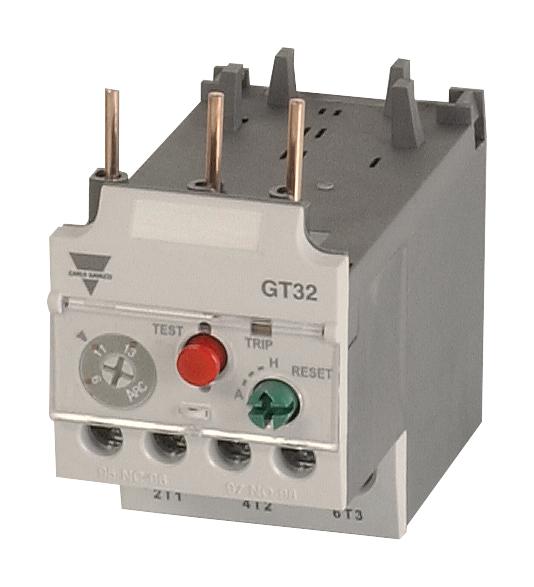

CARLO GAVAZZI GT32S025A Thermal Overload Relay
The GT32S025A is a thermal overload relay designed to protect three-phase motors and AC circuits against overloads, phase failure, and stalling. It features a screw clamp terminal connection, rated operational voltage up to 690V, and a trip class of 10 or 20 depending on configuration. This relay provides manual or automatic reset options, trip indication, and compatibility with various contactors. Its compact, DIN rail-mountable design ensures reliable overload protection for industrial motor control systems, complying with IEC standards and safety certifications.
CARLO GAVAZZI GT32S025A Thermal Overload Relay Specifications:
- Rated operational voltage: Up to 690V
- Rated insulation voltage: 690V
- Rated impulse voltage: 6kV
- Degree of protection: IP 20
- Temperature compensation: -5~+40°C
- Connection: Screw Clamp or Lug
- Number of poles: 3
- Trip class: 10 or 20 (depending on model)
- Functions: Trip indicating, Stop, Test, Manual or Automatic Reset
- Wire size: AWG 16-14, 14-12
- Rated current range: 0.1~40A
- Applied contactors: Suitable for contactors with terminal type GGZ32S, GGZ63S, GGZ95S, GGZ150S
- Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, CE, CSA, UL
Buy the Gavazzi Series GT Overload Relay: GT32S025A
Secure your motor's safety with the Gavazzi GT32S025A thermal overload relay, featuring rated voltage up to 690V, adjustable settings, trip indication, and compatibility with various contactors. Designed for industrial automation, it offers manual or automatic reset modes, robust IP20 protection, and conforming IEC standards for safety and reliability. Easy to install with screw clamp terminals, this relay provides precise overload protection, preventing motor damage and downtime. Enhance your control panel with this compact, durable overload relay designed for demanding industrial environments.
Buy Gavazzi GT32S025A overload relay now and ensure reliable motor protection with precision control and easy installation.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI GT32S025A?
You can click on the BUY or RFQ button to purchase GT32S025A from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part GT32S025A?
You can download the GT32S025A datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of GT32S025A?
CARLO GAVAZZI
