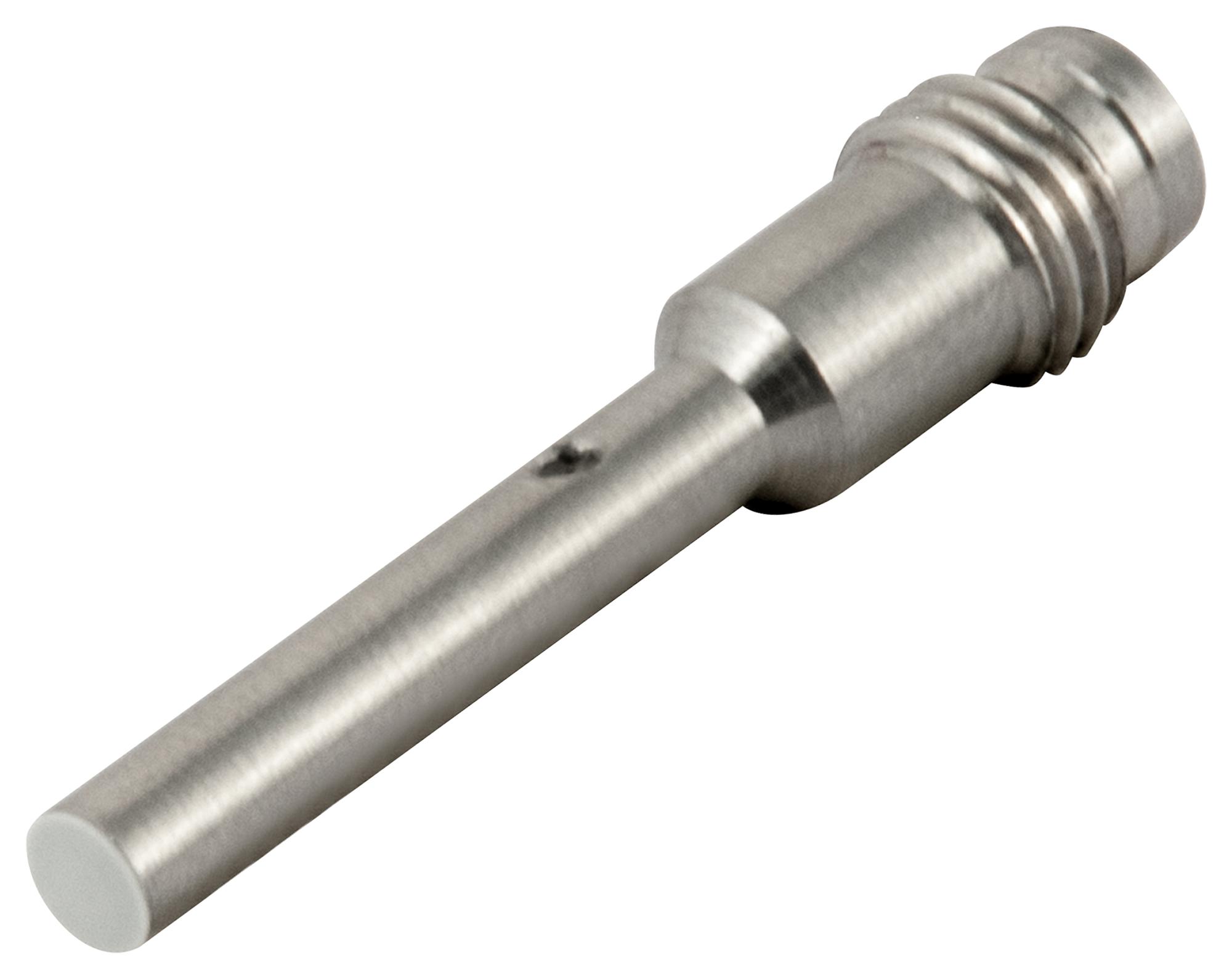

CARLO GAVAZZI IBS04SF08M5PO inductive proximity sensor
The IBS04 and ICS05 series are miniature inductive proximity sensors with IO-Link communication, housed in robust stainless steel for industrial automation. They feature high-speed detection up to 6 kHz, adjustable sensing distance, and configurable output modes for versatile automation tasks like tool-selection, robotics, and micro-mechanism control. Easy flush installation, M8-plug, and 2m PVC cable enhance their flexibility. They provide environmental stability from -25°C to +70°C, with diagnostic functions for short-circuits and overloads, plus customizable options for OEM needs, making them ideal for precise metal detection in confined spaces.
CARLO GAVAZZI IBS04SF08M5PO inductive proximity sensor Specifications:
- Power Supply: 10 to 30 VDC
- Output: Configurable PNP/NPN, N.O./N.C., up to 100 mA
- Detection Distance: 0.8 mm (standard), 1.3 mm (extended)
- Response Time: 6 kHz detection frequency
- Enclosure: Stainless steel AISI304
- Ambient Temperature: -25°C to +70°C
- Protection Class: IP67
- Vibration Resistance: IEC 60068-2-6, 10-55Hz, amplitude 1.0mm
- Shock Resistance: IEC 60068-2-27, 30G/11ms
- Connection: 2m PVC cable or M8 quick disconnect
- Compliance: IEC 61000-4 EMC standards, IEC 60947-5-2
Buy the Carlo Gavazzi Series IBS04 Inductive Proximity Sensor Metal Detection: IBS04SF08M5PO
Discover the Carlo Gavazzi IBS04 inductive proximity sensor, engineered for precise metal detection in space-constrained industrial automation. Featuring stainless steel housing, adjustable sensing distances of 0.8 and 1.3mm, and high-speed detection up to 6 kHz, it offers reliable operation in temperature ranges from -25°C to +70°C. Easy to install with flush-mount options, available with cable or M8 connections. Its diagnostic capabilities include short-circuit and overload alerts, ensuring seamless integration into your automation system. Order online today for fast delivery and reliable performance.
Buy Carlo Gavazzi IBS04 now and experience unmatched reliability and high-speed performance in metal detection for industrial automation.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI IBS04SF08M5PO?
You can click on the BUY or RFQ button to purchase IBS04SF08M5PO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part IBS04SF08M5PO?
You can download the IBS04SF08M5PO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of IBS04SF08M5PO?
CARLO GAVAZZI
