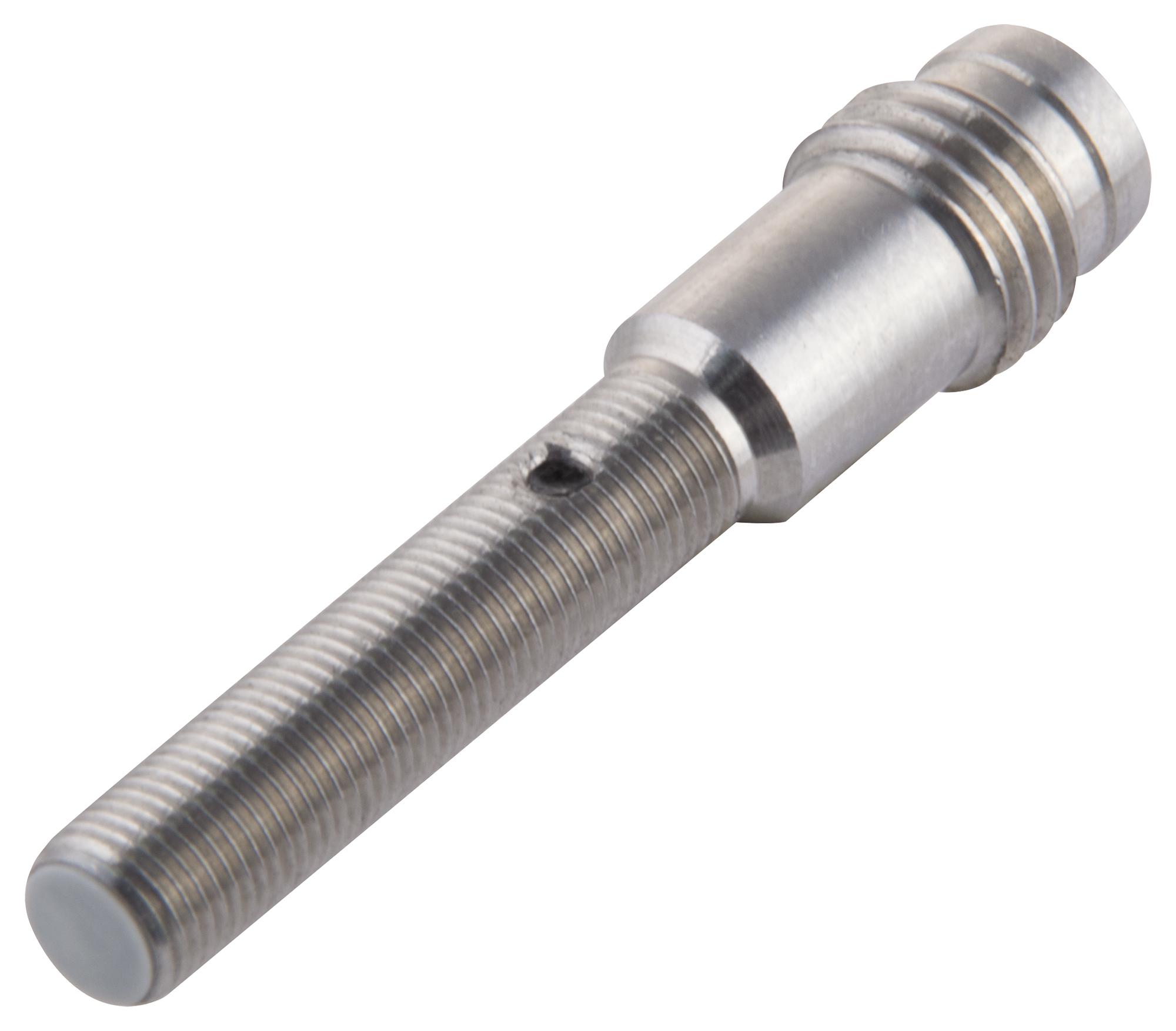

CARLO GAVAZZI ICS05S23F08M5PO Inductive Proximity Sensor
The ICS05 series inductive proximity sensors are compact, stainless steel devices featuring IO-Link communication, designed for precise metal detection in limited spaces. They offer adjustable sensing distances of 0.8mm or 1.3mm, high-speed detection up to 6 kHz, and robust environmental resistance. Easy flush mounting with flexible connection options, including M8 connectors and 2m PVC cables, coupled with configurable PNP/NPN push-pull outputs. Ideal for industrial automation, speed monitoring, and position sensing, these sensors ensure reliable operation in harsh environments with advanced diagnostics and customization features.
CARLO GAVAZZI ICS05S23F08M5PO Inductive Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output: PNP/NPN configurable, normally open or normally closed
- Current Output: up to 100 mA
- Response Time: up to 6 kHz
- Sensing Distance: 0.8mm standard, 1.3mm extended range
- Hysteresis: 1-20%
- Temperature Range: -25°C to +70°C
- Protection: IP67, short circuit, reverse polarity, transient protection
- Housing Material: Stainless steel AISI304
- Connection: 2m PVC cable or M8 connector
- Vibration Resistance: IEC 60068-2-6
- Shock Resistance: IEC 60068-2-27
- EMC Compatibility: IEC 61000-4 series
- Weight: Cable version approx. 33-35g, plug version approx. 6-8g
- Mounting: Flush mountable, stainless steel housing
- Maximum Tightening Torque (for ICS05): 1.5 Nm
Buy the Gavazzi Series ICS05 Inductive Proximity Sensor: ICS05S23F08M5PO
Experience reliable metal detection with the Gavazzi inductive proximity sensor. Featuring adjustable sensing distances of 0.8mm or 1.3mm, high-speed detection up to 6 kHz, and robust IP67 rated stainless steel housing, it is perfect for space-constrained automation tasks. Easily connect via M8 or 2m PVC cable, and customize output configurations with IO-Link for enhanced process control. Ideal for speed monitoring, position sensing, and industrial automation, this sensor combines durability, precision, and flexible installation for demanding manufacturing environments.
Get Gavazzi ICS05S23F08M5PO today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS05S23F08M5PO?
You can click on the BUY or RFQ button to purchase ICS05S23F08M5PO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS05S23F08M5PO?
You can download the ICS05S23F08M5PO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS05S23F08M5PO?
CARLO GAVAZZI
