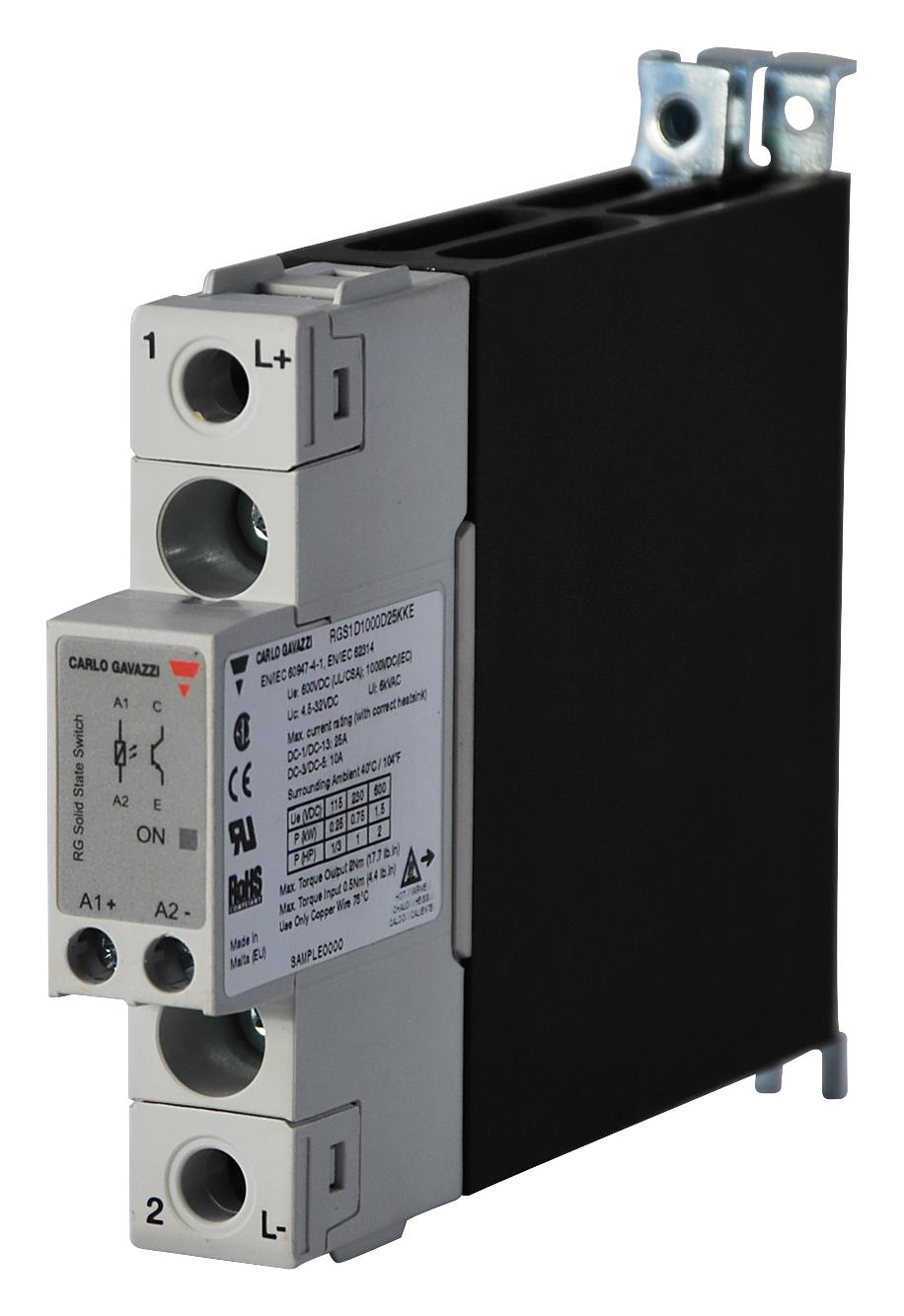

CARLO GAVAZZI RGC1A23D20KKE Solid State Contactor
The RGC is a slimline, ready-to-use solid state contactor with an integrated heatsink, rated up to 37 AAC and only 17.5 mm wide. It features overvoltage protection via a varistor, green LED indicator for control status, and options for spring-loaded or screw control terminals. Suitable for panel space-saving applications in industrial machinery, the RGC supports UL508A standards, UL short circuit rating of 100 kA, and can handle voltages up to 660 VAC with ratings up to 85 A at 40°C. It offers fast wiring, integrated protection, and optional overtemperature alarm with fan operation, ensuring reliable and maintenance-efficient operation in various control systems.
CARLO GAVAZZI RGC1A23D20KKE Solid State Contactor Specifications:
- Ratings up to 660 VAC, 85 A@T, 40°C
- Integrated heatsink for thermal management
- Overvoltage protection via varistor
- UL508A compliant, Short Circuit Current Rating 100 kA
- Control voltage: 3-32 VDC, 20-275 VAC/VDC options
- Dimensions: 17.5 mm width, various model heights
- Maximum load currents up to 37 AAC
- Operation temperature: -40°C to +70°C (with overtemperature alarm variants up to +70°C)
- Protection class: IP20, DIN rail mounting
- Conformant to standards: EN/IEC 60947-4-2, 4-3, UL508, VDE
- Supports UL 600 V max switching voltage, UL short circuit protection, and optional fan overtemperature alarm
- Compatible with Miniature Circuit Breakers for protection coordination
- Designed for various industrial applications including heating, extrusion, control panels, and machinery
Buy the Buy Carlo Gavazzi RGC Part Number RGC1A23D20KKE Online
Purchase the Carlo Gavazzi RGC solid state contactor online today and benefit from a space-efficient, reliable control solution with integrated heatsink, overvoltage protection, and high current ratings up to 85 A. Designed for industrial machinery, this slim contactor ensures quick wiring, minimal maintenance, and compliance with UL508A standards. Whether needed for heating, extrusion, or automation, buy online and enjoy fast delivery, excellent durability, and ease of installation in your control panels and equipment.
Buy Carlo Gavazzi RGC1A23D20KKE now and experience unmatched reliability and space-saving performance in industrial control systems.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGC1A23D20KKE?
You can click on the BUY or RFQ button to purchase RGC1A23D20KKE from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGC1A23D20KKE?
You can download the RGC1A23D20KKE datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGC1A23D20KKE?
CARLO GAVAZZI
