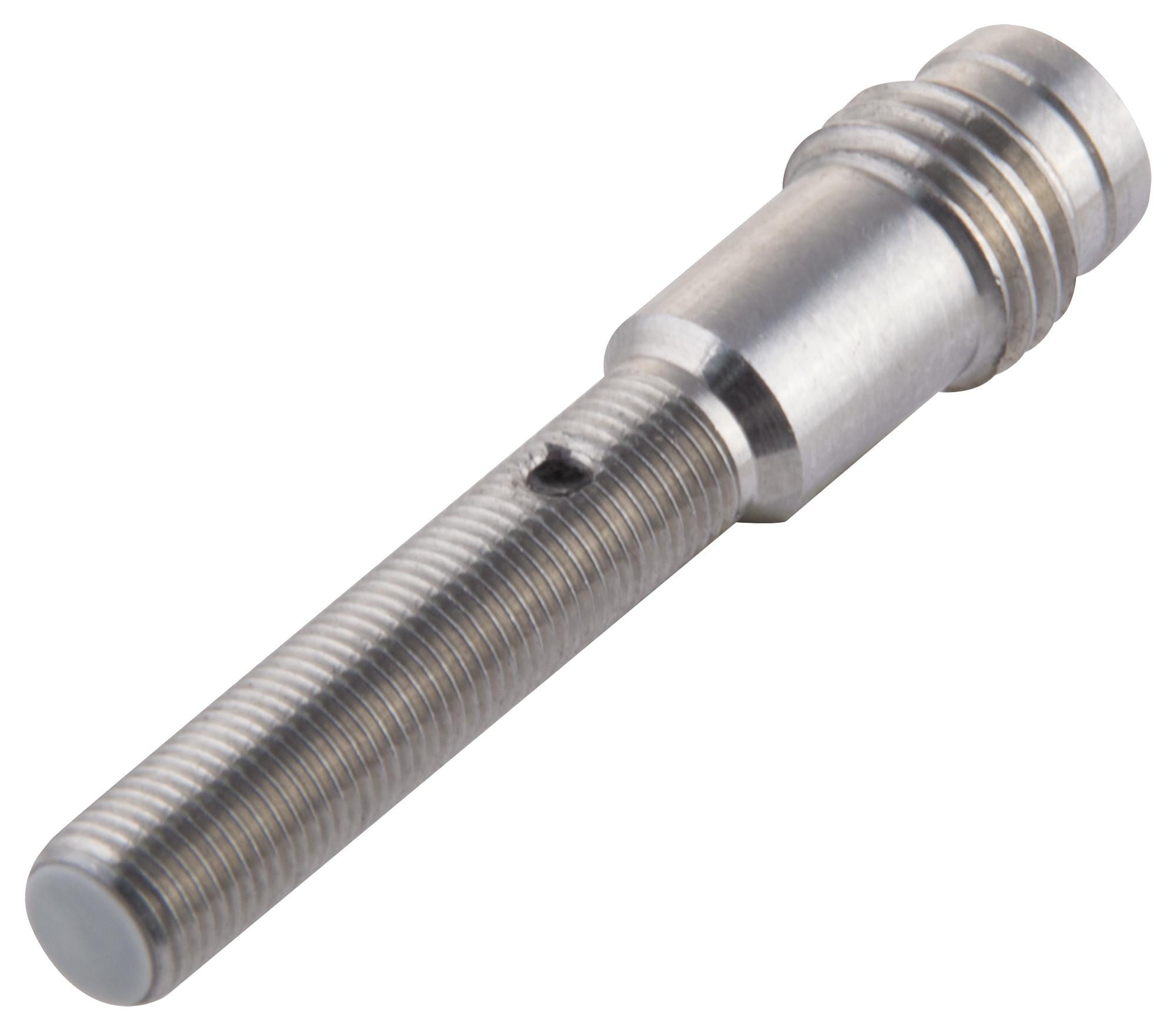

CARLO GAVAZZI ICS05S23F15M5PO Inductive Proximity Sensor
The ICS05 series inductive proximity sensors are miniaturized, stainless steel housing devices equipped with IO-Link communication. They are ideal for limited space applications such as tool selection, robotic positioning, and micro-mechanism control. These high-speed sensors feature adjustable sensing distances (0.8mm or 1.3mm), onboard microcontrollers for environmental stability, and configurable electrical outputs. Mounted flush, they are suitable for industrial automation, offering easy installation, precise detection, and advanced parameter setup via IO-Link, with versions available for different mounting and connection preferences.
CARLO GAVAZZI ICS05S23F15M5PO Inductive Proximity Sensor Specifications:
- Supply Voltage: 10 to 30 VDC
- Output Types: NPN or PNP, configurable via IO-Link
- Maximum Output Current: 100 mA
- Response Time: Up to 6 kHz
- Housing Material: Stainless steel AISI304
- Sensing Distance: 0.8mm standard, 1.3mm extended
- Temperature Range: -25°C to +70°C
- Vibration Resistance: 10 to 55 Hz, amplitude 1.0 mm
- Protection Class: IP67
- Installation: Flush mount, with stainless steel housing options
- Connection: 2m PVC cable or M8 quick disconnect with 3-pin male connector
- EMC Immunity: IEC 61000-4-2/4-4/4-6/4-8
- Shock Resistance: 30G/11ms
- Weight: 33.1g (cable version, @4 housing), 5.6g (plug version, @4 housing)
Buy the Buy Carlo Gavazzi Io-Link Proximity Sensor Part Number ICS05S23F15M5PO Online
Purchase your Carlo Gavazzi inductive proximity sensor with IO-Link communication online today. Designed for precise metal detection in limited spaces, it offers adjustable sensing distances, fast response times up to 6 kHz, and robust stainless steel housing. Easy to install flush-mounted with configurable electrical outputs, it ensures high environmental stability and reliability for industrial automation. Ideal for robotics, tool positioning, and micro-mechanism control, this sensor improves efficiency and simplifies setup through intuitive IO-Link configuration, making it a perfect choice for modern manufacturing environments.
Order your Carlo Gavazzi Series ICS05 proximity sensor with IO-Link today and enhance your automation projects with reliable, high-speed metal detection.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS05S23F15M5PO?
You can click on the BUY or RFQ button to purchase ICS05S23F15M5PO from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS05S23F15M5PO?
You can download the ICS05S23F15M5PO datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS05S23F15M5PO?
CARLO GAVAZZI
