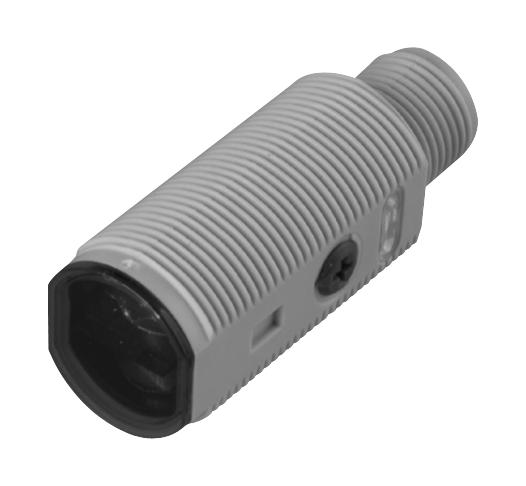

CARLO GAVAZZI PA18CAD10PAM1SA Diffuse Reflective Sensor
The CARLO GAVAZZI PA18CAD10PAM1SA is a versatile diffuse reflective photoelectric sensor designed for a wide range of industrial applications. Its compact size, combined with a high-power LED, provides an excellent performance-to-size ratio. The integrated potentiometer allows for easy and precise adjustment of sensitivity, making it adaptable to diverse sensing requirements. The sensor's robust construction, including IP67 and IP69K protection, ensures reliable operation in harsh environments. It supports both NPN and PNP output types with NO and NC switching functions, offering flexibility in system integration. Its features like reverse polarity, short circuit, and transient protection enhance its durability and reliability.
CARLO GAVAZZI PA18CAD10PAM1SA Diffuse Reflective Sensor Specifications:
- Range: 1 m (Axial), 0.8 m (Radial)
- Sensitivity adjustment: Potentiometer
- Light type: Modulated, red light 625 nm
- Supply voltage: 10 to 30 VDC
- Output: 100 mA, NPN or PNP, N.O & N.C.
- Degree of protection: IP67, IP69K
- LED indication: Output, stability and power ON
- Protection: reverse polarity, short circuit and transients
- Operating frequency: 500 Hz
- Response time (tON): ≤ 1.0 ms
- Response time (tOFF): ≤ 1.0 ms
- Power ON delay (tv): ≤ 100 ms
- Output function: NO and NC
- Rated insulation voltage: 500 VAC (rms)
- Housing material (Body): ABS, grey
- Housing material (Front): PMMA, red
- Cable: PVC, grey, 2 m
- Weight (with cable): 85g
- CE-marking: Yes
- Approvals: cULus (UL508)
