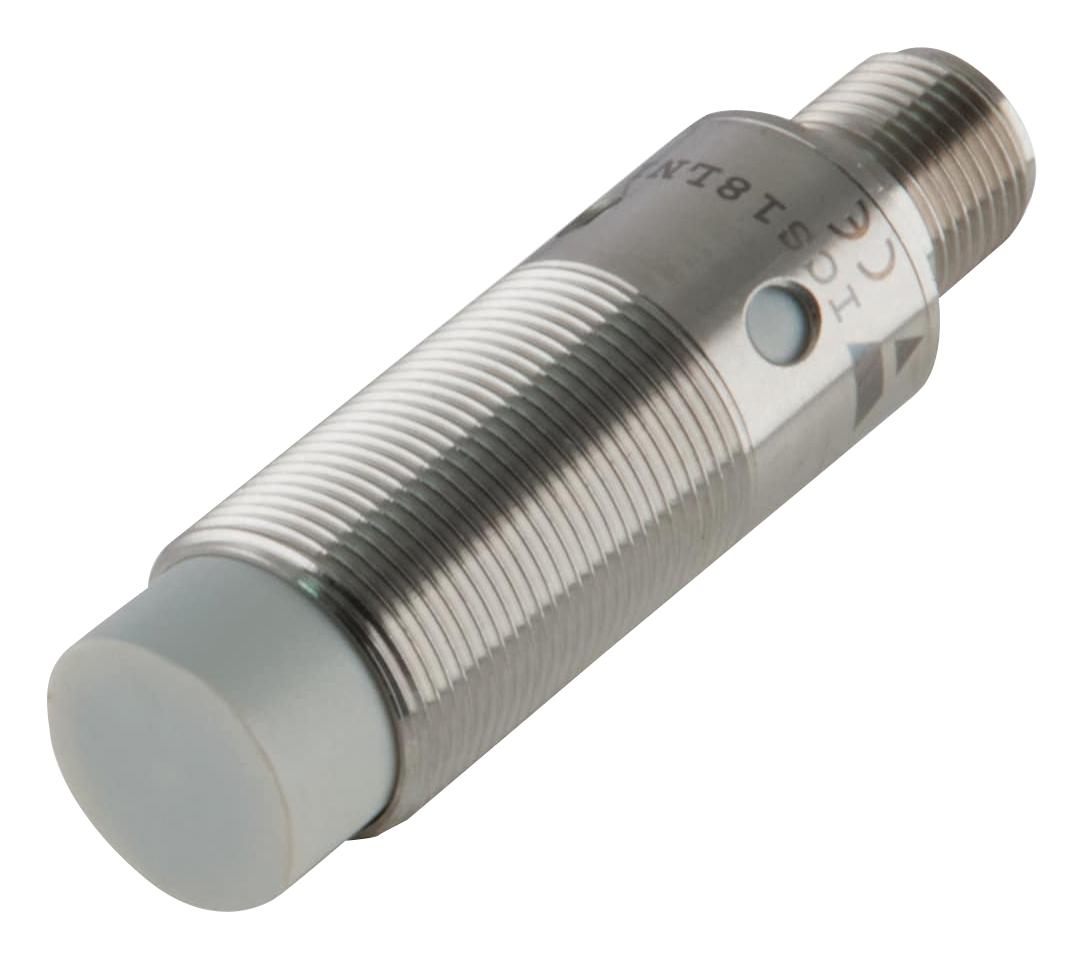

CARLO GAVAZZI ICS18LN12POM1FB Inductive proximity sensor
The inductive proximity sensor in stainless steel offers high-pressure washdown resistance, suitable for food and beverage applications. It features sensing distances from 5 to 12 mm, with flush or non-flush mounting options, and is certified for hazardous areas with CSA approval. Made from FDA-certified plastic and AISI 316L stainless steel, it withstands high temperatures, acids, and disinfectants. The sensor includes LED indicators for output status, emergency protection against reverse polarity, short circuits, and transients, ensuring reliable operation in demanding environments. It supports NPN or PNP outputs, with robust IP69K/IP68/IP67 ratings for washdown sealing.
CARLO GAVAZZI ICS18LN12POM1FB Inductive proximity sensor Specifications:
- Housing Material: Stainless steel AISI 316L
- Housing Size: M18
- Sensing Distance: 5 to 12 mm
- Rated Operational Voltage: 10 - 36 VDC
- Output: DC 200 mA, NPN or PNP, Normally open or closed
- Mounting: Flush or non-flush
- Protection: IP69K, IP68, IP67, CSA certified for Hazardous Locations
- Operating Temperature Range: -40°C to +80°C
- Electrical Protection: Reverse polarity, short circuit, transients
- Response Time: Power ON delay less than 20 ms
- Operating Frequency: Up to 1500 Hz
- Shock & Vibration: Compliant IEC 60947-5-2/7.4
- EMC Immunity: IEC 61000-4-3/4/6/8, IEC 61000: KV air/contact discharge, 3V/m
- Dimensions: See diagrams, approximate length 23-26 mm depending on sensing distance
- Weight: Max 70 g (cables included)
Buy the Buy Carlo Gavi Inductive Proximity Sensor Part Number ICS18LN12POM1FB Online
Order the Carlo Gavi inductive proximity sensor ICS18LN12POM1FB online today. Designed for high-pressure washdowns, it provides precise detection from 5 to 12 mm. Made from durable stainless steel AISI 316L, it withstands high temperatures, acids, and disinfectants, ideal for food, beverage, and hazardous locations. With LED indicators, reverse polarity protection, and certification for IP69K, IP68, and hazardous environments, this sensor ensures reliable, safe operation. Purchase now for quick delivery and maximum operational confidence in tough industrial conditions.
Buy Carlo Gavi ICS18LN12POM1FB now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS18LN12POM1FB?
You can click on the BUY or RFQ button to purchase ICS18LN12POM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS18LN12POM1FB?
You can download the ICS18LN12POM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS18LN12POM1FB?
CARLO GAVAZZI
