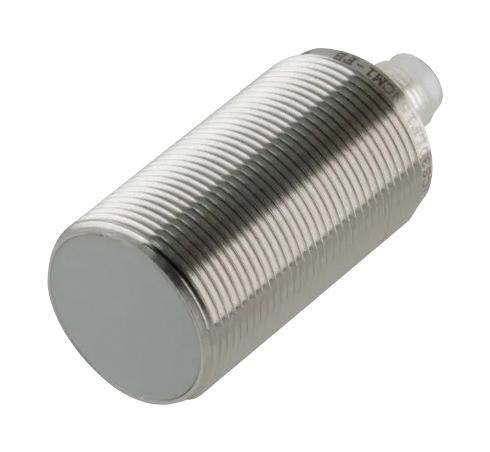

CARLO GAVAZZI ICS30LF15POM1FB Inductive proximity sensor
The ICS30LF15POM1FB is a stainless steel inductive proximity sensor rated IP69K, suitable for food and beverage applications involving high pressure and temperature cleaning. It features a sensing distance of 15 mm, an extended temperature range of -40°C to +85°C, and offers NPN or PNP outputs with normally open or normally closed contacts. Designed for flush or non-flush mounting, it is fully sealed, resistant to acids and disinfectants, and includes LED indicators for output status, overload, or short circuit, making it ideal for harsh industrial environments.
CARLO GAVAZZI ICS30LF15POM1FB Inductive proximity sensor Specifications:
- Housing Material: Stainless steel (AISI 316L)
- Sensing Distance: 15 mm
- Operating Voltage: 10 - 36 VDC, ripple included
- Output Current: < 200 mA @ 50°C
- Temperature Range: -40°C to +85°C
- Protection: IP69K, IP68, reverse polarity, short circuit, transients
- Certifications: CE, cULus (UL508), rated for hazardous locations
- Effective Operating Distance: 0.9 x S to 1.1 x S
- Repeatability: 55%
- Shock & Vibration: IEC 60947-5-2/7.4
- Housing Dimensions: 67.5 mm length, 30 mm diameter, top mounting
- Connection Type: M12 connector, 4-wire, angled or straight
- Mounting Torque: 75 Nm
- Housing: Grey PPS (FDA-certified), front, back parts Grilamid
- Degree of Protection: IP67, IP68, IP69K, certified for high-pressure washdowns
- Weight: Max. 130 g
- Effective Operating Distance: 15 mm, with reduction factors for metals (steel, brass, aluminum, copper)
Buy the Buy Carlo Gavazzi Inductive Proximity Sensor Part Number ICS30LF15POM1FB Online
Purchase the Carlo Gavazzi inductive proximity sensor ICS30LF15POM1FB online now to experience superior detection capabilities in high-pressure, high-temperature environments. Its stainless steel construction ensures durability and resistance to chemicals and disinfectants, making it ideal for food, beverage, and harsh industrial environments. With IP69K protection, extended temperature range, and available NPN or PNP outputs, this sensor provides dependable operation. Order today for quick delivery and enhance your automation and safety systems with this high-performance sensing solution.
Order your Carlo Gavazzi Series ICS30LF15POM1FB proximity sensor today and secure reliable detection for your challenging industrial applications.
