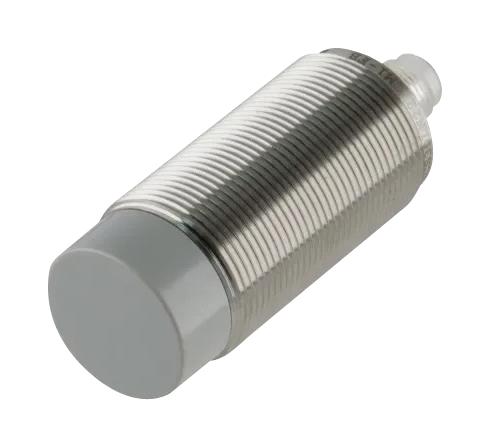

CARLO GAVAZZI ICS30LN15POM1FB Inductive proximity sensor
Inductive proximity sensors with stainless steel housing designed for food and beverage industry applications, offering high-pressure washdown resistance, IP69K and IP68 ratings, and Ecolab certification. These sensors feature adjustable sensing distances from 10 to 22 mm, multiple mounting options (flush or non-flush), and outputs in NPN or PNP configurations. They operate at 10-36 VDC, with LED indicators for status, and are suitable for hazardous locations, with a durable construction resistant to acids, alkalis, and disinfection agents, ensuring reliable performance in harsh environments.
CARLO GAVAZZI ICS30LN15POM1FB Inductive proximity sensor Specifications:
- Housing Material: Stainless Steel (AISI 316L)
- Sensing Distance: 10 to 22 mm, adjustable with fixed ratios 0.85x to 1.15x
- Rated Operational Voltage: 10 - 36 VDC, ripple included
- Output: NPN or PNP, normally open or normally closed, max 200 mA
- LED Indicators: Output ON, short-circuit, overload, yellow LED
- Protection: Reverse polarity, short-circuit, transients, IP69K, IP68 (1 m, 7 days)
- Temperature Range: -40°C to +85°C, storage up to -40°C to +85°C
- Operating Frequency: Up to 1000 Hz, response delay less than 20 ms
- Dimensions: Approx. 47.5 mm to 79.5 mm in length, 30 mm diameter
- Certifications: UL (UL508), CE, CSA, compliance with IEC 60947-5-2
- Shock & Vibration: Compliant with IEC standards, robust sealing for harsh environment
- Wiring: 4-wire connection with angled or straight M12 connectors
- Protection Rating: IP69K, IP67, IIP67, IIP68
Buy the Carlo Gavazzi Series ICS Inductive Proximity Sensor: ICS30LN15POM1FB
Purchase the Carlo Gavazzi Series ICS30LN15POM1FB inductive proximity sensor online and benefit from its robust stainless steel construction, high-pressure washdown resistance, and range of sensing distances. Ideal for food, beverage, and harsh industrial environments, this sensor offers adjustable sensing distances from 10 to 22 mm, NPN or PNP outputs, and is certified for hazardous locations. Its sealed design ensures performance against acids, alkalis, and disinfectants, providing reliable, maintenance-free operation in challenging conditions. Order now for fast delivery and quality assurance.
Order your Carlo Gavazzi Series ICS30LN15POM1FB high-pressure washdown proximity sensor today and ensure reliable detection in demanding food processing environments.
