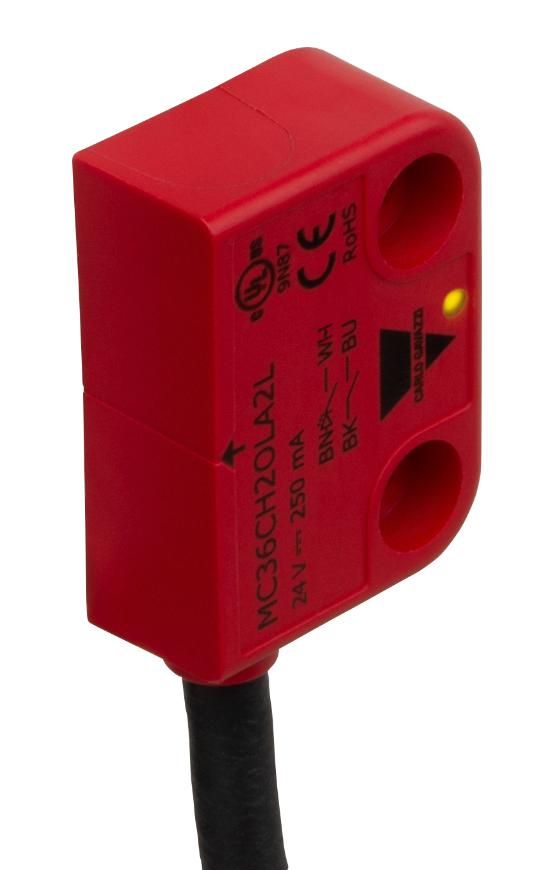

CARLO GAVAZZI MC36CH2OLA2 Safety Magnetic Sensor
The MC36C series are compact, encoded safety magnetic sensors designed for industrial safety applications. Their reinforced polymer casing ensures IP67 protection, operating in temperatures from -25°C to +80°C. These sensors detect the position of hinged or sliding guards without mechanical contact, providing reliable safety shutoff for dangerous machine movements. Suitable for harsh environments with dust and moisture, they support configurations with different outputs, including 2NO or 1NO plus 1NC, and are compliant with EN ISO 13849-1 safety standards up to category 4, PLe, when connected to appropriate safety modules.
CARLO GAVAZZI MC36CH2OLA2 Safety Magnetic Sensor Specifications:
- Housing Material: PBT red
- Dimensions: 36 x 26 x 13 mm
- Detection Distance: 5mm with MC36CM actuator
- Switch-off Distance: 15mm with MC36CM actuator
- Operating Temperature Range: -25°C to +80°C
- Protection Class: IP67
- Connection Types: 2m PVC cable (4 x 0.25 mm²), M8 4-pin connector
- Rated Operating Voltage: 12-24 Vac/dc
- Rated Operating Current: 0.25 A resistive load
- Max Switching Load: 6 W resistive
- Response Time: < 10 ms
- Max Operating Frequency: 100 Hz
- Shock Resistance: 30.9 (11 ms)
- Vibration Resistance: 10 g (EN 60068-2-6)
- Certifications: CE, cULus
- Safety Level: Up to category 4, PLe according to EN ISO 13849-1
- Certifications: EN 60529, IEC 60947-5-1
- Approval: Complies with Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, RoHS 2011/65/EU
Buy the Buy Carlo Gavazzi MC36C Part Number MC36CH2OLA2 Online
Purchase Carlo Gavazzi MC36C safety magnetic sensor online today and ensure reliable protection for your industrial machinery. These compact sensors feature robust PBT housing with IP67 protection, suitable for dusty and damp environments. Easy to install with flexible connection options, including PVC cable and M8 connectors, they support safety categories up to 4, PLe, when integrated with appropriate safety modules. Their quick response time, high durability, and compliance with international safety standards make them essential for safeguarding machine operations and ensuring workplace safety.
Get Carlo Gavazzi MC36C safety sensor today—robust, reliable, designed for harsh industrial conditions with IP67 sealing and high safety standards.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI MC36CH2OLA2?
You can click on the BUY or RFQ button to purchase MC36CH2OLA2 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part MC36CH2OLA2?
You can download the MC36CH2OLA2 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of MC36CH2OLA2?
CARLO GAVAZZI
