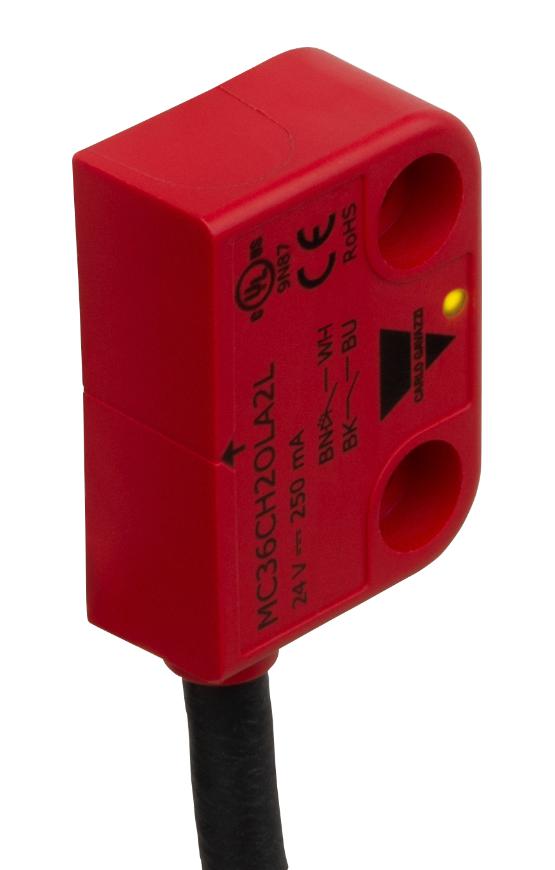

CARLO GAVAZZI MC36CH2OLA2L Safety Magnetic Sensor
The MC36C series are encoded safety magnetic sensors designed for industrial applications involving hinged, sliding, or removable guards. These compact sensors feature reinforced PBT housing with IP67 protection, suitable for harsh environments with dust and moisture. Equipped with various output options like 2NO or 1NO + 1NC, they operate with a rated voltage of 12-24 Vac/dc and can be connected via PVC cable or M8 connector. They ensure safety in machine guarding up to category 4 PLe, with switching distances of 5mm and 15mm, and are ideal for monitoring machine protections efficiently and reliably.
CARLO GAVAZZI MC36CH2OLA2L Safety Magnetic Sensor Specifications:
- Housing Material: PBT
- Protection Degree: IP67
- Operation Temperature: -25°C to +80°C
- Detection Distance: 5mm (actuator MC36CM)
- Switch-off Distance: 15mm (actuator MC36CM)
- Rated Operating Voltage: 12-24 Vac/dc
- Rated Operating Current: 0.25 A resistive load
- Response Time: < 10 ms
- Max Switching Load: 6 W resistive load
- Electrical Connection: PVC cable 2m or M8 4-pin connector
- Mechanical Dimensions: 36 mm x 26 mm x 13 mm
- Vibration Resistance: 10 g (EN 60068-2-6)
- Shock Resistance: 30.9 g (EN 60068-2-27)
- Protection Class: IP67
- Conforms to standards: EN/IEC 60947-5-1, EN ISO 13849-1
- Safety Category: Up to 4 according to EN ISO 13849-1
- Mechanical Endurance: 80 million operations
- Weight: 35 to 75 grams
Buy the GAVAZZI MC36C – Reliable Safety Magnetic Sensors for Industrial Applications
Enhance your safety measures with the Carlo Gavazzi MC36C magnetic safety sensors. Featuring IP67 protection and reliable operation up to safety category 4 PLe, these sensors monitor machine guards effectively in dusty or moist environments. With multiple contact configurations and compact dimensions, they offer high flexibility for installation. Connect via PVC cable or M8 connector, and enjoy quick response times of less than 10ms. Ideal for safeguarding machinery, they ensure maximum safety compliance and operational durability—order online today for dependable safety solutions.
Buy Carlo Gavazzi MC36C magnetic safety sensors now and experience unmatched reliability, safety, and performance in harsh industrial environments.
