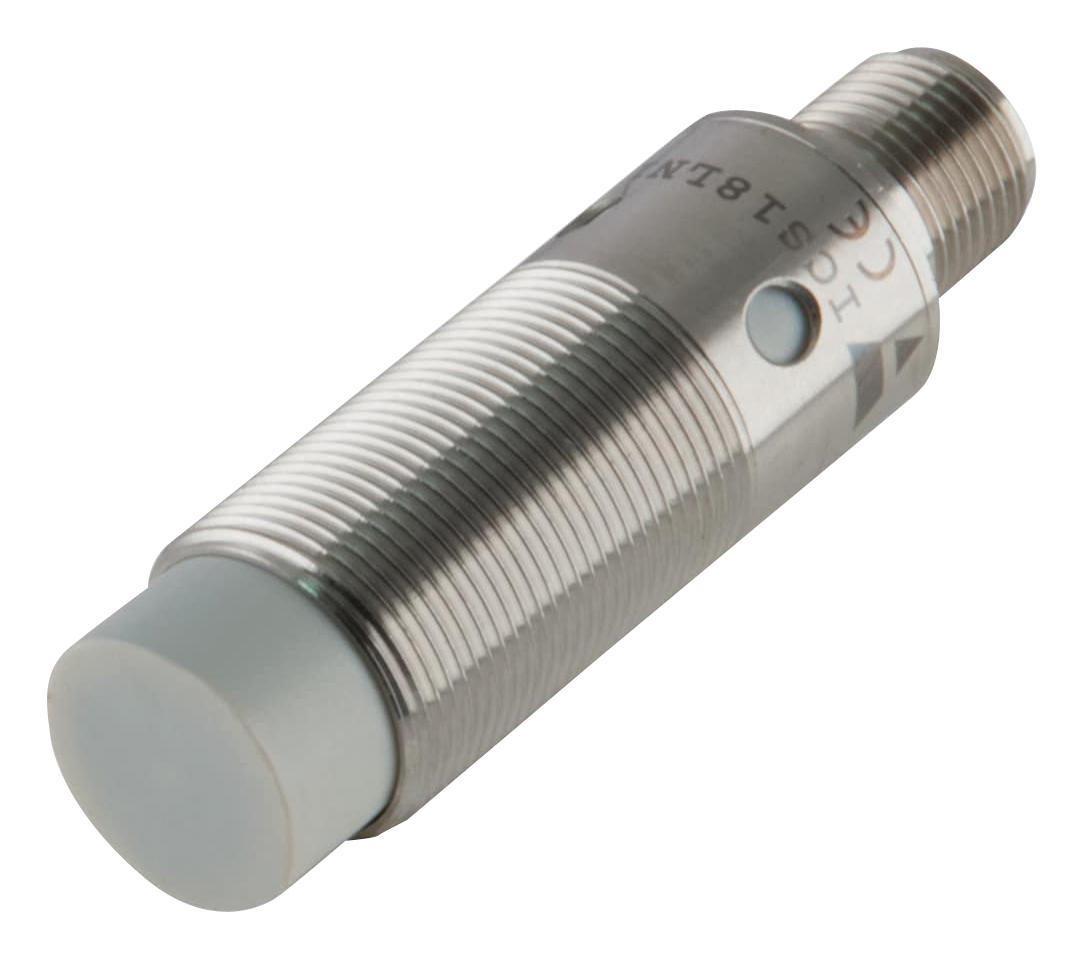

CARLO GAVAZZI ICS18LN12NOM1FB Inductive proximity sensor
Inductive proximity sensors with stainless steel housing, suitable for food and beverage industries. These IEC 60947-5-2 certified sensors offer sensing distances from 5 to 12 mm, with IP69K protection, FDA-certified plastic, and high-pressure washdown resistance. Available in flush or non-flush mounting, they feature LED indicators for output status, reverse polarity, short circuit, and transient protection. With a rated operational voltage of 10-36 VDC, NPN/PNP outputs, and extended temperature range from -40°C to +80°C, these robust sensors ensure reliable detection in harsh environments.
CARLO GAVAZZI ICS18LN12NOM1FB Inductive proximity sensor Specifications:
- Housing Material: Stainless steel AISI 316L
- Protection: IP69K, IP67, IP68 (1m, 7 days)
- Sensing Distance: 5mm to 12mm, effective S., usable S.
- Rated Operational Voltage: 10-36 VDC
- Output: NPN or PNP, DC 200 mA
- Voltage Drop: Max 2 VDC @ 200 mA
- Short-circuit and reverse polarity protection
- Temperature Range: -40°C to +80°C
- Operating Frequency: < 1500 Hz
- Shock and Vibration Resistance: IEC 60947-5-2/7.4
- Housing: Stainless steel, FDA-certified plastic front
- Connectors: M12, straight or angled, cable options available
- Dimensions: See diagrams, approximate length 26-28mm depending on sensing distance
- Certifications: UL, cULus, CSA Hazardous Locations Class I Div 2
- Compliance: IEC 60947-5-2
- Wiring: 4-wire, NPN/PNP, Normally open/closed
Buy the Ecolab ICS – Reliable Inductive Sensors for Industrial Applications
Purchase Ecolab inductive proximity sensors today for robust, stainless steel detection solutions. Ideal for food processing and harsh environments, these sensors feature IP69K protection, extended temperature range, and versatile models with NPN or PNP outputs. Their compact design ensures easy integration into your automated systems, providing reliable operation even under extreme conditions. Experience superior quality, durability, and performance by ordering online now. These certified sensors will enhance your manufacturing process, ensuring safety and efficiency in demanding applications.
Buy Ecolab ICS inductive proximity sensors now and ensure reliable detection with high-pressure washdown resistance for industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI ICS18LN12NOM1FB?
You can click on the BUY or RFQ button to purchase ICS18LN12NOM1FB from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part ICS18LN12NOM1FB?
You can download the ICS18LN12NOM1FB datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of ICS18LN12NOM1FB?
CARLO GAVAZZI
