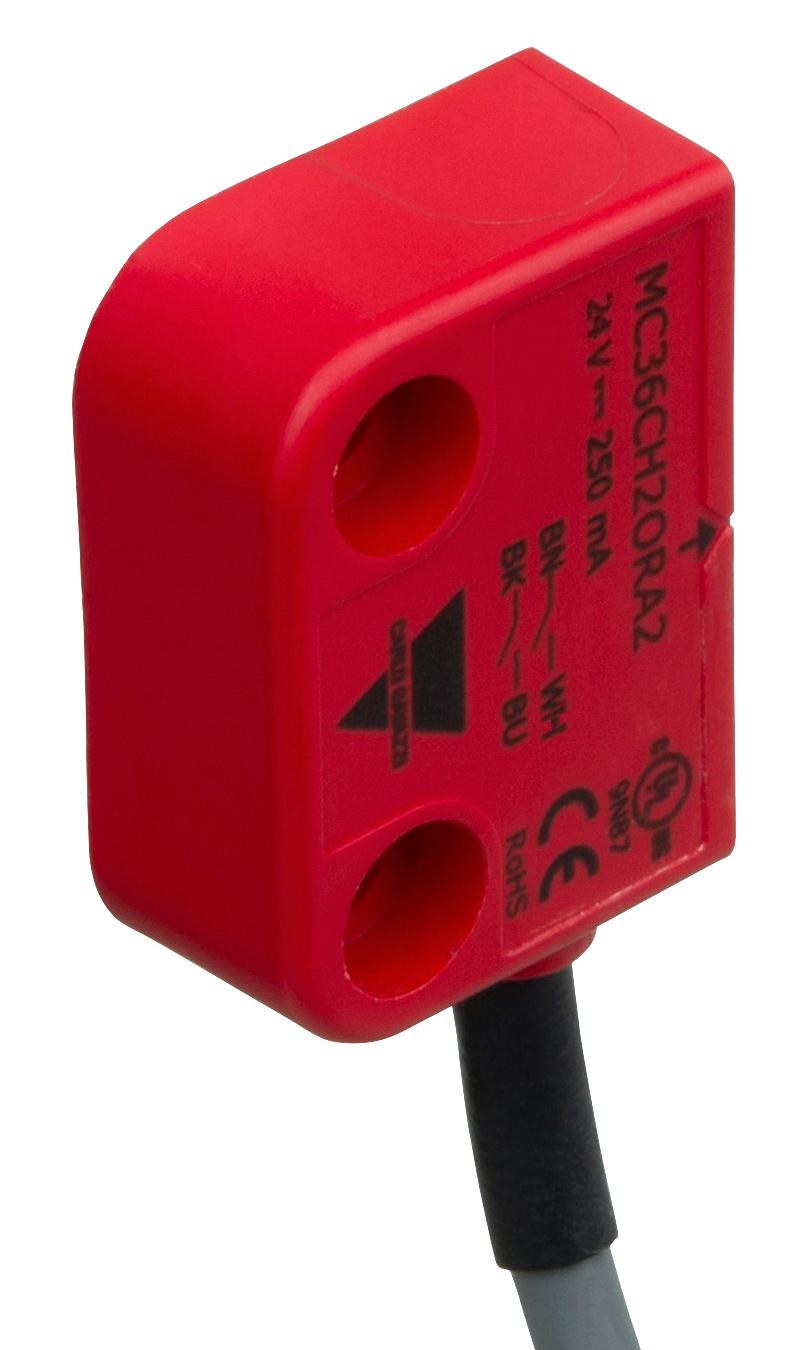

CARLO GAVAZZI MC36CH2ORA2 Safety Magnetic Sensor
The MC36C series are encoded safety magnetic sensors designed for industrial safety applications. Encased in a reinforced polymer casing with IP67 protection, these compact sensors monitor the position of guards and protective doors. Available with various outputs including 2NO or 1NO + 1NC, they offer high durability, resistance to dirt, dust, and harsh environments, and can operate at temperatures from -25°C to +80°C. Suitable for safety categories up to 4, they effectively prevent dangerous machine movements when safety barriers are displaced or opened, ensuring compliance with EN ISO 13849-1 standards.
CARLO GAVAZZI MC36CH2ORA2 Safety Magnetic Sensor Specifications:
- Housing Material: PBT (polybutylene terephthalate)
- Dimensions: 36 x 26 x 13 mm
- Protection Degree: IP67
- Operating Temperature Range: -25°C to +80°C
- Detection Distance: 5 mm (actuator MC36CM)
- Switch-Off Distance: 15 mm (actuator MC36CM)
- Operating Voltage: 12-24 Vac/dc
- Rated Operating Current: 0.25 A resistive load
- Max Switching Load: 6 W resistive
- Response Time: < 10 ms
- Maximum Frequency: 100 Hz
- Shock Resistance: 30.9 (11 ms)
- Vibration Resistance: 10 g (EN 60068-2-6)
- Reverse Polarity Protection: Yes
- Connections: PVC cable 2m or M8 connector
- Certification: CE, cULus
- Safety Category: Up to 4 (EN ISO 13849-1, PLe)
- Mechanical Endurance: 80 million operations
- Weight: 35 to 75 g
Buy the Carlo Gavazzi Series MC36C Safety Magnetic Sensor: MC36CH2ORA2
Order the Carlo Gavazzi MC36CH2ORA2 safety magnetic sensor online today for dependable performance in tough industrial conditions. Designed with IP67 protection, this compact sensor monitors guard positions with high accuracy, ensuring safety compliance up to category 4 standards. Its versatile connections, including a durable M8 connector and PVC cable options, facilitate easy installation. Engineered for long-term operation with over 80 million cycles, this sensor is the ideal safety solution to prevent hazardous machine movements and enhance operational safety.
Get Carlo Gavazzi MC36CH2ORA2 today—built for precision, durability, and reliable safety guarding in demanding industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI MC36CH2ORA2?
You can click on the BUY or RFQ button to purchase MC36CH2ORA2 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part MC36CH2ORA2?
You can download the MC36CH2ORA2 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of MC36CH2ORA2?
CARLO GAVAZZI
