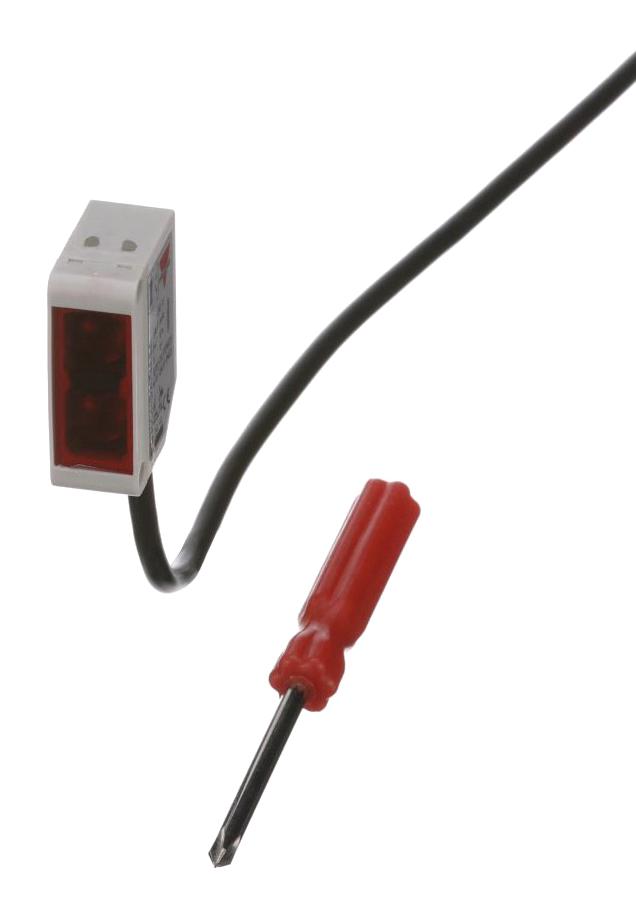

CARLO GAVAZZI PD30CNB20NASA Photoelectric Sensor
The PD30CNB20 sensor family offers compact size, high accuracy, and flexibility for industrial detection applications. Encased in a 10x30x20 mm reinforced PMMA/ABS housing, it features sensitivity adjustment via potentiometer, modulated red light, and makes or breaks switching with NPN or PNP outputs. Suitable for short-range detection up to 200 mm, it ensures excellent EMC, protection against transients, reverse polarity, and short circuit. Ideal for automation, manufacturing, and quality inspection where precise, small sensors are essential for reliable non-contact object detection.
CARLO GAVAZZI PD30CNB20NASA Photoelectric Sensor Specifications:
- Housing Size: 10x30x20 mm
- Housing Material: Reinforced PMMA/ABS
- Detection Range: Up to 200 mm with white background
- Light Source: InGaAIP LED, 625 nm, modulated
- Output Type: NPN or PNP preset, NO/NC switching
- Output Current: Max 100 mA, Continuous or Short-time
- Supply Voltage: 10 to 30 VDC
- Rated Insulation Voltage: < 500 VAC
- Protection: Reverse polarity, short circuit, transients
- Ambient Temp: -25°C to +60°C
- Degree of Protection: IP 67
- Vibration Resistance: 10-150 Hz, 1 mm
- Shock Resistance: 30 g/11 ms
- Response Time: < 1 ms ON-OFF, < 500 Hz frequency
- Output Indicator LEDs: Power (green), Output (yellow)
- Connection: Cable or plug version, 2 m PVC cable
- Certifications: CE, cULus
Buy the Carlo Gavazzi Series PD30 Photoelectric Sensor: PD30CNB20NASA
Order the Carlo Gavazzi PD30CNB20NASA online today to enhance your automation process with a compact, high-precision photoelectric sensor. Featuring adjustable sensitivity, robust IP67 housing, and versatile NPN or PNP outputs, this sensor is ideal for small-sized applications requiring reliable object detection up to 200 mm. Its easy wiring, protection features, and CE certification ensure seamless integration into industrial environments. Purchase now for quick delivery, top performance, and guaranteed quality for your manufacturing or quality control needs.
Buy Carlo Gavazzi PD30CNB20NASA now and experience unmatched reliability and performance in optical detection applications.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI PD30CNB20NASA?
You can click on the BUY or RFQ button to purchase PD30CNB20NASA from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part PD30CNB20NASA?
You can download the PD30CNB20NASA datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of PD30CNB20NASA?
CARLO GAVAZZI
