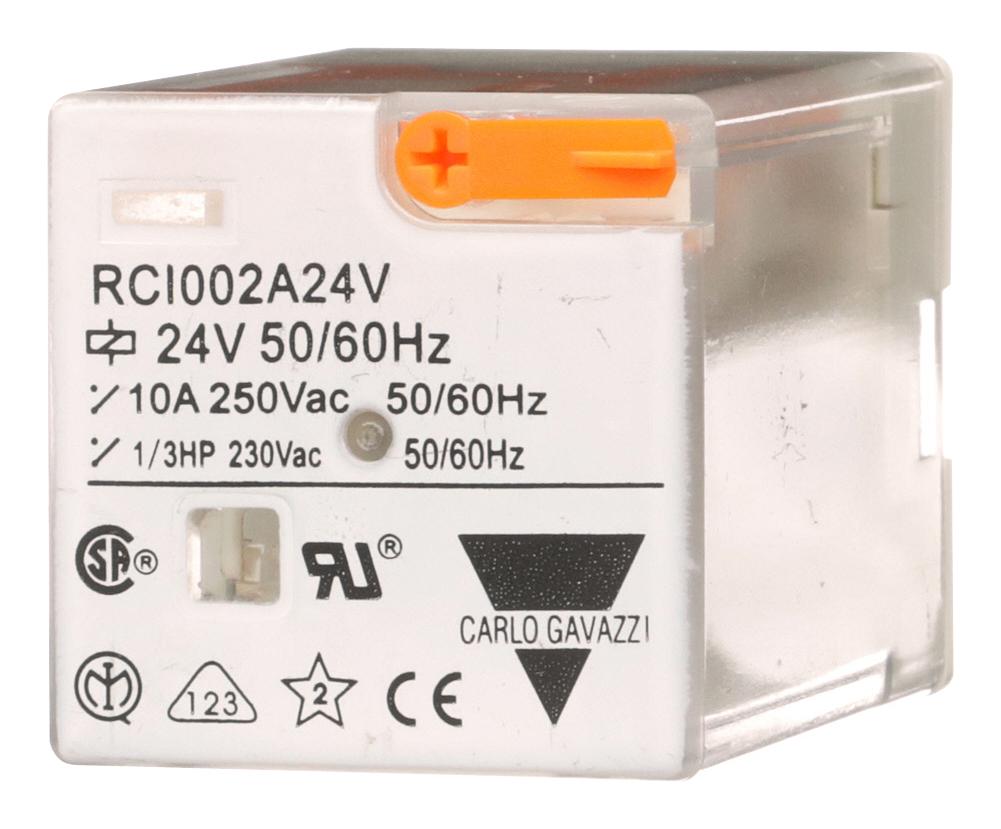

CARLO GAVAZZI RCI002A24V Industrial Relay
The industrial relay offers reliable switching with 10A capacity at 250VAC/VDC, featuring 2 or 3 changeover contacts, various coil voltages from 5V to 240V, and a long electrical life of 100,000 cycles. Designed for versatile applications, it includes DIN sockets, standard LED indicators, test flags, and approvals from UL, CSA, CE, and ROHS. The relay's compact design ensures quick response times (<20ms), robust contact materials, and high insulation strength, making it ideal for automation, control systems, and industrial machinery requiring durable and efficient relay solutions.
CARLO GAVAZZI RCI002A24V Industrial Relay Specifications:
- Contact Rating: 10A 250VAC/30VDC
- Contact Arrangement: DPDT, 3PDT with AgSn02 material
- Coil Voltages: 5VDC, 6VDC, 12VDC, 24VDC, 48VDC, 110VDC, 120VAC, 240VAC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Reaction Time to Close/Open: <20ms
- Insulation Voltage: 21000 VAC for 1 minute between open contacts
- Operating Temperature: -40°C to +55°C
- Dimensions: Includes 8-PIN or 11-PIN DIN-rail mounting sockets
- Approval Standards: UL, CSA, CE, ROHS
- Wire Range: 20-14 AWG (0.5-2.5 mm²)
- Maximum Screw Torque: 0.8Nm
- Operational Humidity: 35% to 85%
- Storage Temperature: -40°C to +55°C
Buy the Carlo Gavazzi Series RCI Industrial Relay: RCI002A24V
Purchase the Carlo Gavazzi industrial relay online today and benefit from its high switching capacity, rapid response times, and long operational life. Designed with robust contacts and versatile coil options, this relay is perfect for automation, machinery, and control systems demanding reliability. Its DIN socket mounting ensures straightforward installation, while UL, CSA, CE, and ROHS approvals guarantee safety and quality standards. Elevate your industrial setup with a durable, efficient relay. Order now for fast, secure online shopping experience—industrial-grade performance at your fingertips.
Get Carlo Gavazzi RCI002A24V today—built for precision and long-lasting durability in industrial control applications.
