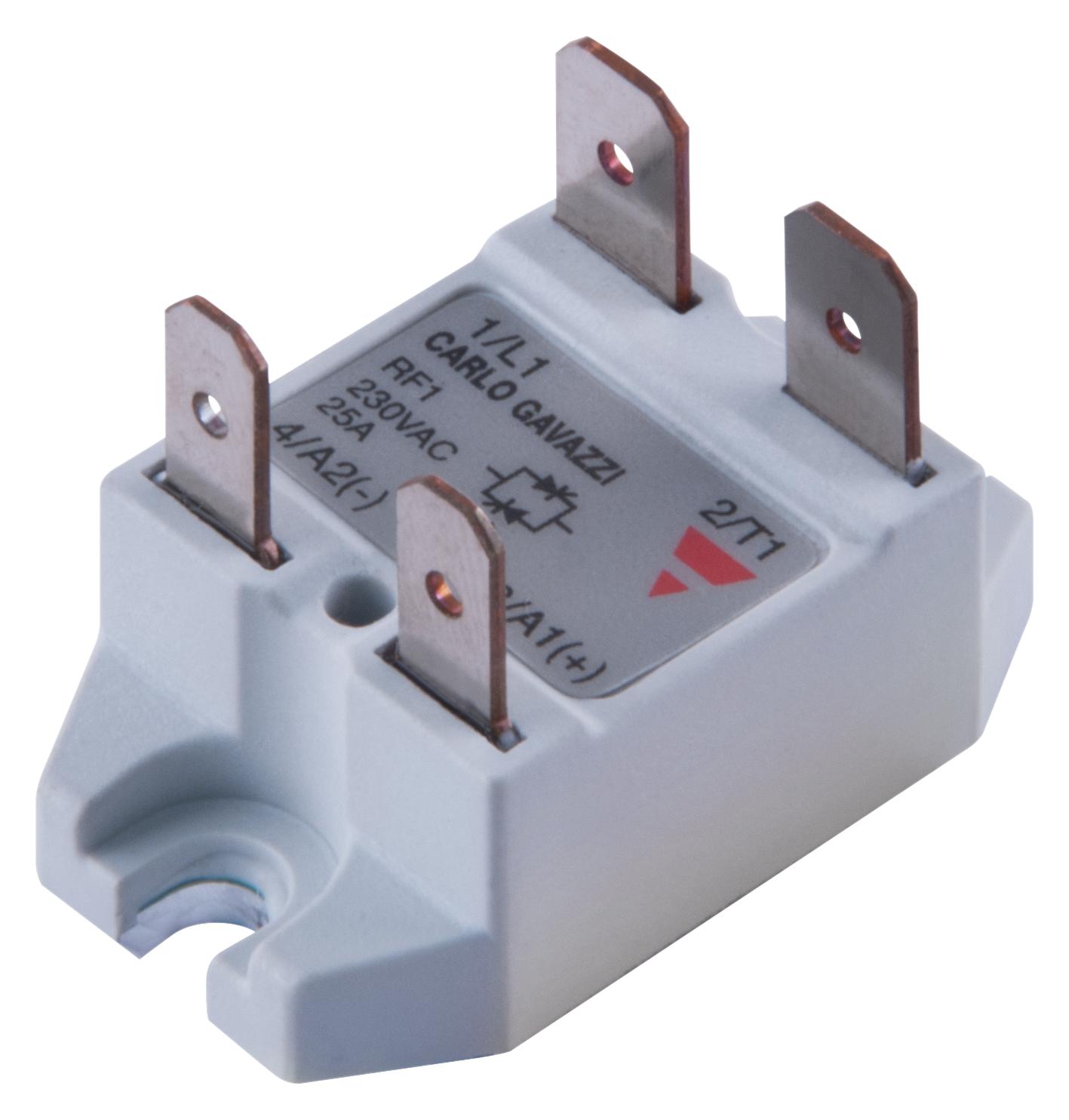

CARLO GAVAZZI RF1B23L25 Solid State Relay
The RF1 series provides a compact, reliable solid state relay solution designed for resistive loads in confined spaces. It features zero cross and instant-on switching modes, integrated overvoltage protection, and a green LED indicator for control status. Suitable for applications like vending machines, food warmers, and temperature control units, it boasts quick Faston terminal connections, pre-attached thermal interface, and high durability with over 400,000 cycle endurance. Certification conformity to UL508 and EN 60335-1 ensures safety and longevity for industrial and food industry use.
CARLO GAVAZZI RF1B23L25 Solid State Relay Specifications:
- Operating voltage range: 24-280 VAC
- Blocking voltage: 600 Vp
- Switching mode: zero cross and instant on
- Rated current up to 25 AAC
- Control voltage options: 4.25 - 9.0 VDC, 9.0 - 18.0 VDC, 18.0 - 28.8 VDC
- Input pick-up voltage: 4.25 - 18.0 VDC depending on mode
- Input drop-out voltage: 1.0 VDC
- Isolation input to output: 3750 Vrms
- Output leakage current: <3 mA
- Max. junction temperature: 100°C
- Operating temperature: -30°C to 80°C
- Vibration resistance: 2g/axis
- Complies with UL508, EN 60335-1, and RoHS requirements
Buy the Carlo Gavazzi RF1B23L25 – Reliable Solid State Relay for Industrial Applications
Purchase the Carlo Gavazzi RF1B23L25 solid state relay online now to ensure reliable switching for resistive loads in your industrial, food, or temperature control equipment. Featuring fast installation, integrated overvoltage protection, and certification conformity to UL508 and EN 60335-1, this compact relay offers long-term durability with over 400,000 cycle endurance. Its quick connect Faston terminals and pre-attached thermal interface enable easy assembly and efficient heat dissipation, minimizing downtime and maximizing system reliability. Order today for dependable automation solutions.
Order your Carlo Gavazzi RF1B23L25 solid state relay today and benefit from dependable, high-performance switching suitable for resistive loads in industrial environments.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RF1B23L25?
You can click on the BUY or RFQ button to purchase RF1B23L25 from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RF1B23L25?
You can download the RF1B23L25 datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RF1B23L25?
CARLO GAVAZZI
