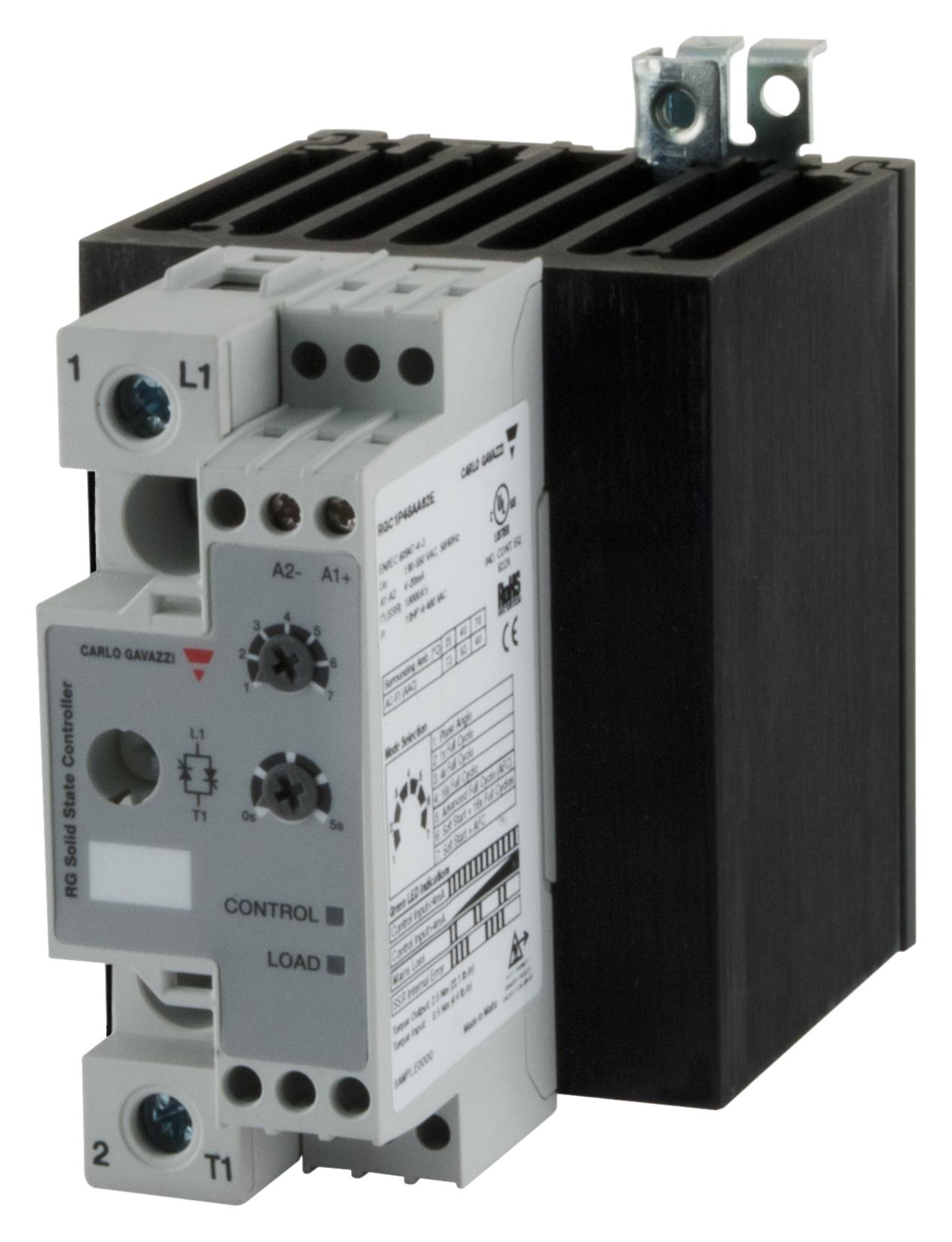

CARLO GAVAZZI RGC1P23AA62E Solid State Contactor
The RGC1P series is a line of solid state contactors with integrated heatsinks designed for controlling 1-phase loads via analog inputs. It supports switching modes including phase angle, full cycle, advanced full cycle, soft starting, and combinations thereof, suitable for infrared heaters and resistive loads. Rated for voltages up to 660 VAC and currents up to 63 A, it features output overvoltage protection, LED indicators, and flexible control inputs such as 4-20 mA, 0-10 V, and potentiometer. Designed for reliable operation and compliance with industry standards, it is ideal for industrial automation applications requiring precise load control.
CARLO GAVAZZI RGC1P23AA62E Solid State Contactor Specifications:
- Operational voltage range: 85-265 VAC or 190-550 VAC or 410-660 VAC depending on model
- Rated operational current: up to 63 AAC
- Blocking voltage: 800 Vp (RGC1P23), 1200 Vp (RGC1P48 and RGC1P60)
- Leakage current: <5 mAAC at rated voltage
- Output protection: Integrated varistor across output
- Control input: 4-20 mA, 0-10 V, 0-5 V, 1-5 V, external potentiometer
- Supply voltage: 24 VDC or 90-250 VAC (varies by model)
- Power factor: > 0.7 @ rated voltage
- Ambient temperature operation: -40°C to +70°C
- Encasing: PA66, RAL7035, UL flammability approved UL 94 VO
- Environmental compliance: EU RoHS, China RoHS
- Dimension range: approx. 225g to 815g depending on model
- Input protection: Yes, against surges with maximum initialisation times of 250-280 ms
- Protection class: IP20
Buy the Carlo Gavazzi Series RGC1P: Solid State Contactor Part 62
Purchase the Carlo Gavazzi Series RGC1P Part 62 solid state contactor online today and enjoy dependable operation with multiple switching modes. This advanced device supports voltages up to 660 VAC and currents up to 63 A, making it ideal for controlling resistive loads and infrared heaters. Its integrated overvoltage varistor, various control inputs, and robust design ensure safety and efficiency. Easily install via DIN rail or panel mount, and benefit from industry-standard certifications. Secure your automation needs now with fast delivery and trusted quality.
Order your Carlo Gavazzi Series RGC1P Part 62 solid state relay today and ensure reliable, precise load control for your industrial systems.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RGC1P23AA62E?
You can click on the BUY or RFQ button to purchase RGC1P23AA62E from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RGC1P23AA62E?
You can download the RGC1P23AA62E datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RGC1P23AA62E?
CARLO GAVAZZI
