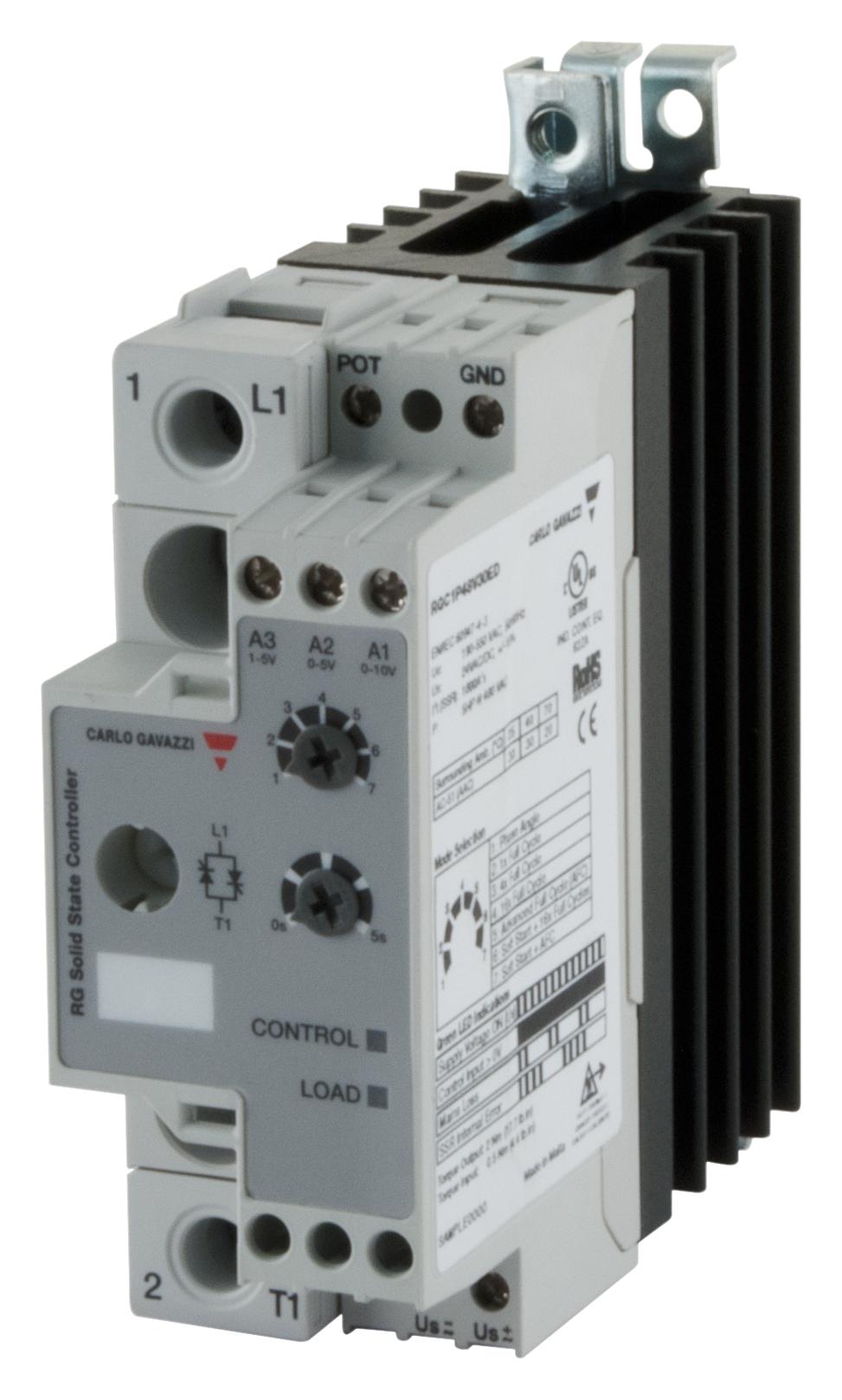

CARLO GAVAZZI RGC1P60V30EA Solid State Contactor
The RGC1P series of solid state contactors with integrated heatsinks are designed to control 1-phase loads using an analog control input. They support multiple switching modes including phase angle, full cycle, advanced full cycle, soft starting, and combined modes for infrared heaters and soft start applications. The output is protected against overvoltages by an integrated varistor, with LED indicators for load and control status. These relays offer rated operational voltages up to 660 VAC and currents up to 63 A, suitable for industrial automation..
CARLO GAVAZZI RGC1P60V30EA Solid State Contactor Specifications:
- Rated operational voltage: up to 660 VAC
- Rated operational current: up to 63 A
- Switching modes: Phase angle, full cycle, advanced full cycle, soft start, combined modes
- Input control: 4-20 mA, 0-5 V, 0-10 V, external potentiometer
- Integrated varistor protection on output
- Output power dissipation: varies with load, typically around 50-60 VA at maximum load
- Surrounding temperature: -40°C to +70°C
- Housing material: PA66, RAL7035
- Impact resistance: 15/11 g/ms
- Vibration resistance: 2 g per axis
- Protection degree: IP20
- Operating frequency: 45-65 Hz
- EMC Immunity: EN 60947-4-3 compliant
- Conformance: UL508, EN/IEC 60947-4-3
- Short circuit current rating: 100 kA, UL508
- Dimensions: approximate length 70 mm, width varies by model, height around 45 mm
- Mounting: DIN rail or panel mount
Buy the Carlo Gavazzi RGC1P60V30EA – Reliable Solid State Contactor for Industrial Applications
Enhance your industrial automation with the reliable solid state contactor from Carlo Gavazzi. Featuring multiple switching modes, overload protection, and a compact design, the RGC1P60V30EA ensures efficient control of 1-phase loads up to 660 VAC and 63 A. Its integrated varistor offers protection against overvoltages, while LED indicators provide easy status monitoring. Perfect for infrared heaters, soft starting, and complex control systems, this relay delivers durability and precision in demanding environments. Order online today for fast delivery and expert support.
Buy Carlo Gavazzi RGC1P60V30EA now and experience unmatched reliability and performance in your industrial controls.
