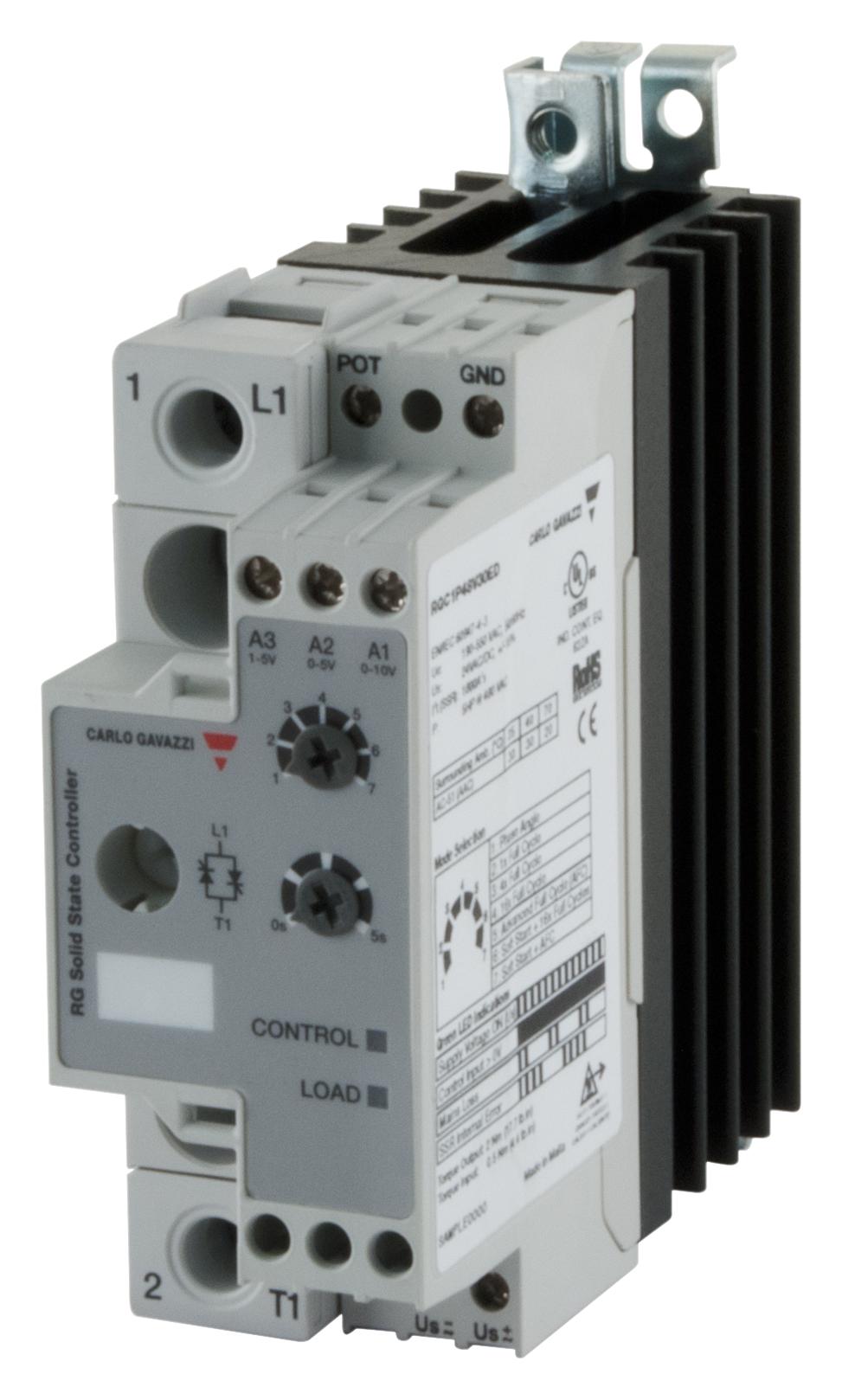

CARLO GAVAZZI RGC1P60V30ED Solid State Contactor
The RGC1P series of solid state contactors features integrated heatsinks for controlling 1-phase loads with an analog control input, suitable for infrared heaters, soft starting, and short wave applications. They support a wide operating voltage of up to 660 VAC, with rated currents up to 63 A. The units include overload protection via a varistor, LED indicators for status, multiple switching modes like phase angle, full cycle, and advanced full cycle, plus soft starting capabilities to reduce inrush current. Overall, these contactors offer high durability, versatile control options, and conform to international standards for safe and efficient operation.
CARLO GAVAZZI RGC1P60V30ED Solid State Contactor Specifications:
- Operational Voltage Range: 85-265 VAC, 190-550 VAC, 410-660 VAC depending on model
- Rated Operational Current: Up to 63 A
- Integrated Varistor Protection: Yes
- Control Inputs: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
- Switching Modes: Phase angle, full cycle, advanced full cycle, soft start, and combinations
- Protection Ratings: IP20 for touch protection, UL listed for short circuit current of 100kA
- Operating Temperature: -40°C to +70°C
- Vibration Resistance: 2g per axis
- Impact Resistance: 15/11 g/ms
- Environmental Compliance: RoHS, IEC/EN 60947-4-3, UL508
- Dimensions vary by model but generally range from approximately 35 mm to 99 mm housing width
- Connection: Rigid and flexible copper conductors, UL/CUL rated, screw and box clamp options
- Weight: Ranges from approximately 225g to 815g depending on model
- Short Circuit Current Rating: 100kA at 600V max
- Enclosure Material: PA66, RAL7035
- Installation: DIN rail mounting, altitude up to 1000m with linear derating above.
- Standards Compliance: IEC/EN 60947-4-3, UL Listed, cUL Listed, RoHS
Buy the Buy Carlo Gavazzi RGC1P60V30ED Part Number RGC1P60V30ED Online
Order the Carlo Gavazzi RGC1P60V30ED solid state contactor online today and enjoy reliable, high-performance control for your industrial applications. Designed for 1-phase loads, it features integrated heatsinks, multiple switching modes including soft start, and extensive protection with overload varistors. Its versatile control inputs, rated for up to 660 VAC, ensure precise operation and durability. Whether for infrared heaters or soft start loads, this contactor provides efficient, safe, and long-lasting performance, ideal for automation systems requiring dependable switching and overload protection.
Get Carlo Gavazzi RGC1P60V30ED today—built for precision, high voltage switching, and long-lasting durability.
