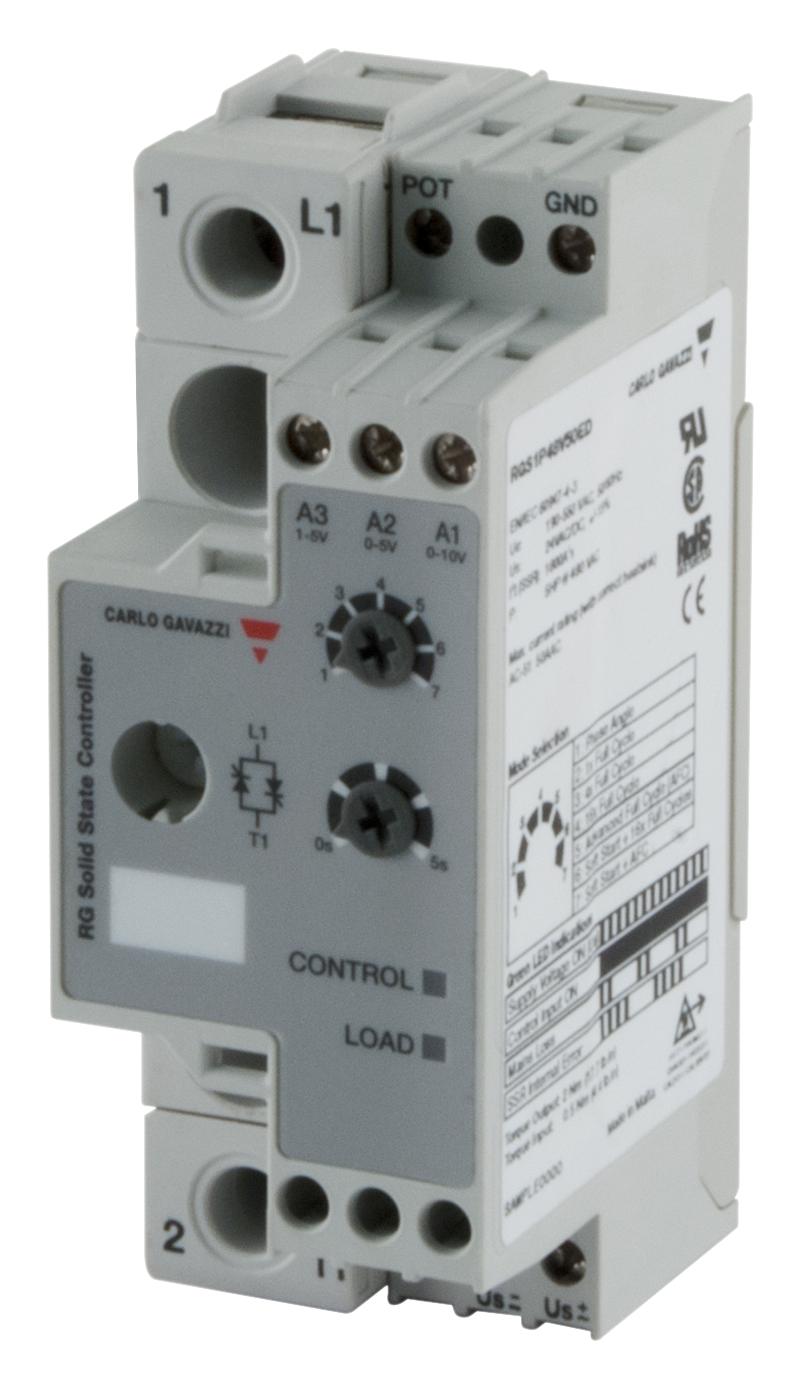

CARLO GAVAZZI RGS1P60V50EA Solid State Relay
The RGS1P series provides 1-phase solid state relays with advanced AC switching capabilities. Designed for proportional, phase angle, and full cycle control modes, these relays can handle up to 660 VAC and 90 AAC currents. Equipped with adjustable control inputs, integrated varistor protection, and LEDs for status indication, they are suitable for resistive loads, short wave infrared heaters, and soft start applications. Suitable for chassis mounting with heatsink compatibility, they ensure reliable performance in industrial automation and power control systems.
CARLO GAVAZZI RGS1P60V50EA Solid State Relay Specifications:
- Operational voltage range: 85-660 VAC
- Rated operational current: up to 90 AAC
- Blocking voltage: 800 Vp to 1200 Vp depending on model
- Leakage current: <5 mAAC
- Integrated varistor protection across output
- Control inputs: 4-20 mA, 0-5 V, 1-5 V, 0-10 V, external potentiometer
- Response time: 2-3 half cycles depending on mode
- Ambient temperature: -40°C to +70°C
- Ingress Protection: IP20
- Maximum junction temperature: 125°C
- Dimensions: Length varies by model, approximately 35-51 mm width, depth around 29-35 mm
- Input impedance: 100kΩ
- Short circuit rating: 100kA
- Conformances: UL, CSA, IEC 60947-4-3
Buy the Buy Carlo Gavazzi RGS1P Series60V50EA Part Number RGS1P60V50EA Online
Purchase the Carlo Gavazzi RGS1P series solid state relay online today for reliable AC power switching with advanced control modes. This high-performance relay handles up to 660 VAC and 90 AAC, suitable for industrial applications, infrared heaters, and soft starting of resistive loads. Equipped with integrated varistor protection, multiple control input options, status LEDs, and IP20 ingress protection, it ensures safe and efficient operation. Enhance your automation systems with a durable, easy-to-install relay designed for precision and long-term reliability.
Order your Carlo Gavazzi Series RGS1P60V50EA today and give your power control projects the dependable quality they deserve.
