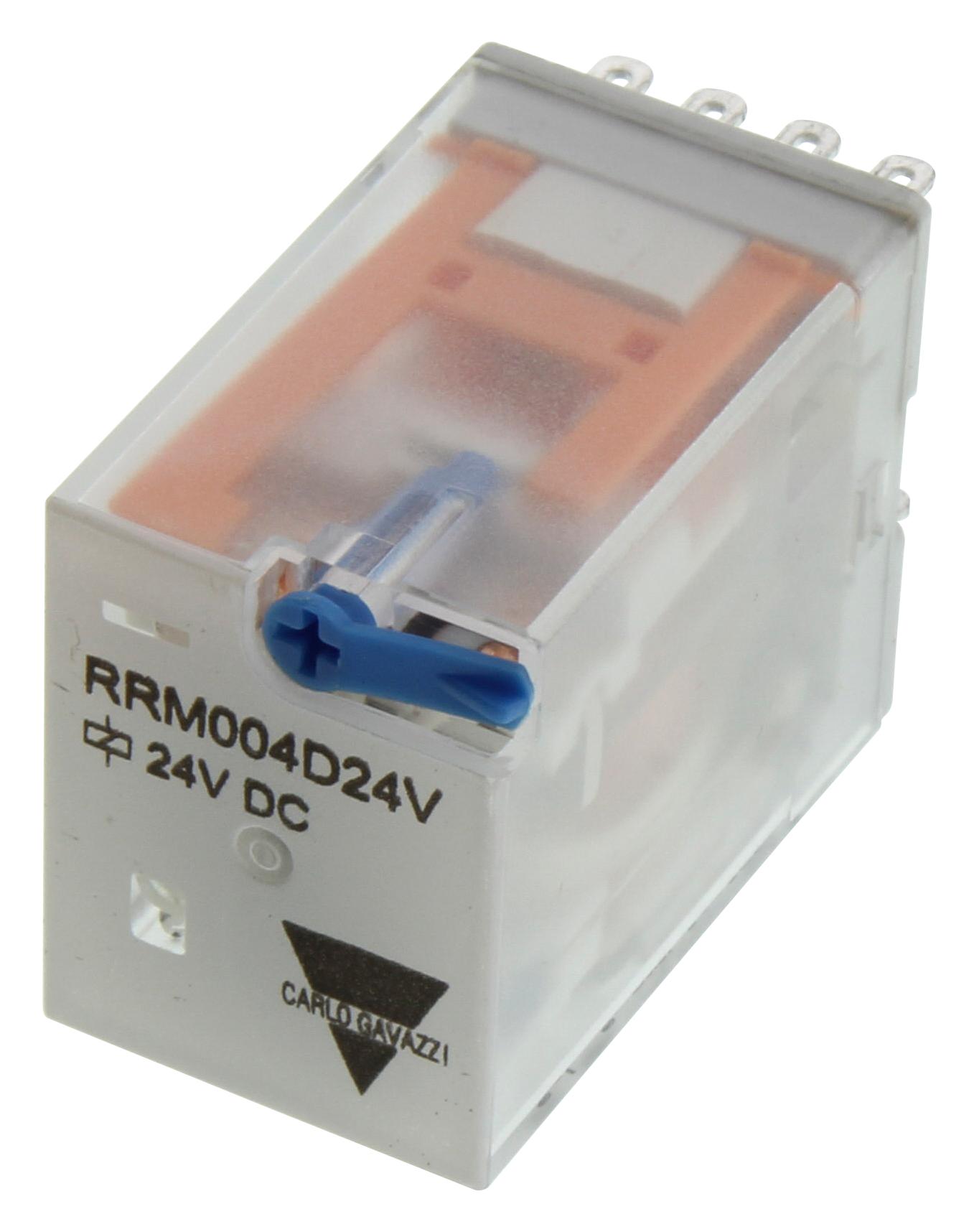

CARLO GAVAZZI RRM004D24V Industrial Relay
The RRM series is a versatile industrial monostable relay suitable for various automation and control applications. It features 2 or 4 changeover contacts, with a maximum switching current of 10A at 250V AC/DC, suitable for demanding industrial environments. The relay supports both AC coils from 12 to 240 VAC and DC coils from 12 to 110 VDC, with a mechanical life reaching 10 million cycles. Equipped with DIN sockets, LEDs, push arms, and test flags, it complies with UL, CSA, CE, and RoHS standards, ensuring safety and reliability.
CARLO GAVAZZI RRM004D24V Industrial Relay Specifications:
- Changeover contacts: 2 or 4
- Contact Rating: 10A at 250VAC/DC
- Maximum Switching Voltage: 250 VAC/VDC
- Coil Voltage: 12 ~ 240 VAC (AC coils), 12 ~ 110 VDC (DC coils)
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40°C to +70°C
- Insulation Voltage: 2500 VAC for 1 minute
- Dimensions: DIN sockets with two terminal layouts, standard indicating LED, push arm, test flag
- Approvals: UL, CSA, CE, RoHS
- Contact Resistance: < 100 mOhms at 6 VDC 1A
- Reaction times: close and open < 20ms
- Reaction voltage: 12V, 24V, 48V, 120V, 240V AC/DC
Buy the Carlo Gavazzi Series RRM Industrial Relay: RRM004D24V
Discover the Carlo Gavazzi RRM004D24V industrial relay, ideal for automation projects requiring reliable switching and durable operation. Featuring 4 changeover contacts, 10A current capacity, and support for various voltages, this relay ensures high performance and safety standards. Its DIN socket mounting allows easy installation, while compliance with UL, CSA, CE, and RoHS guarantees quality. Perfect for controlling equipment in manufacturing, automation, and control panels, this relay offers fast reaction times and long-lasting mechanical durability. Purchase online today for efficient automation solutions.
Buy Carlo Gavazzi RRM004D24V now and experience unmatched reliability and performance in your industrial control systems.
Frequently Asked Questions
Where can I buy CARLO GAVAZZI RRM004D24V?
You can click on the BUY or RFQ button to purchase RRM004D24V from an authorized CARLO GAVAZZI distributor.
How do I troubleshoot issues or seek technical support for part RRM004D24V?
You can download the RRM004D24V datasheet or visit the CARLO GAVAZZI website for support.
Who is the manufacturer of RRM004D24V?
CARLO GAVAZZI
