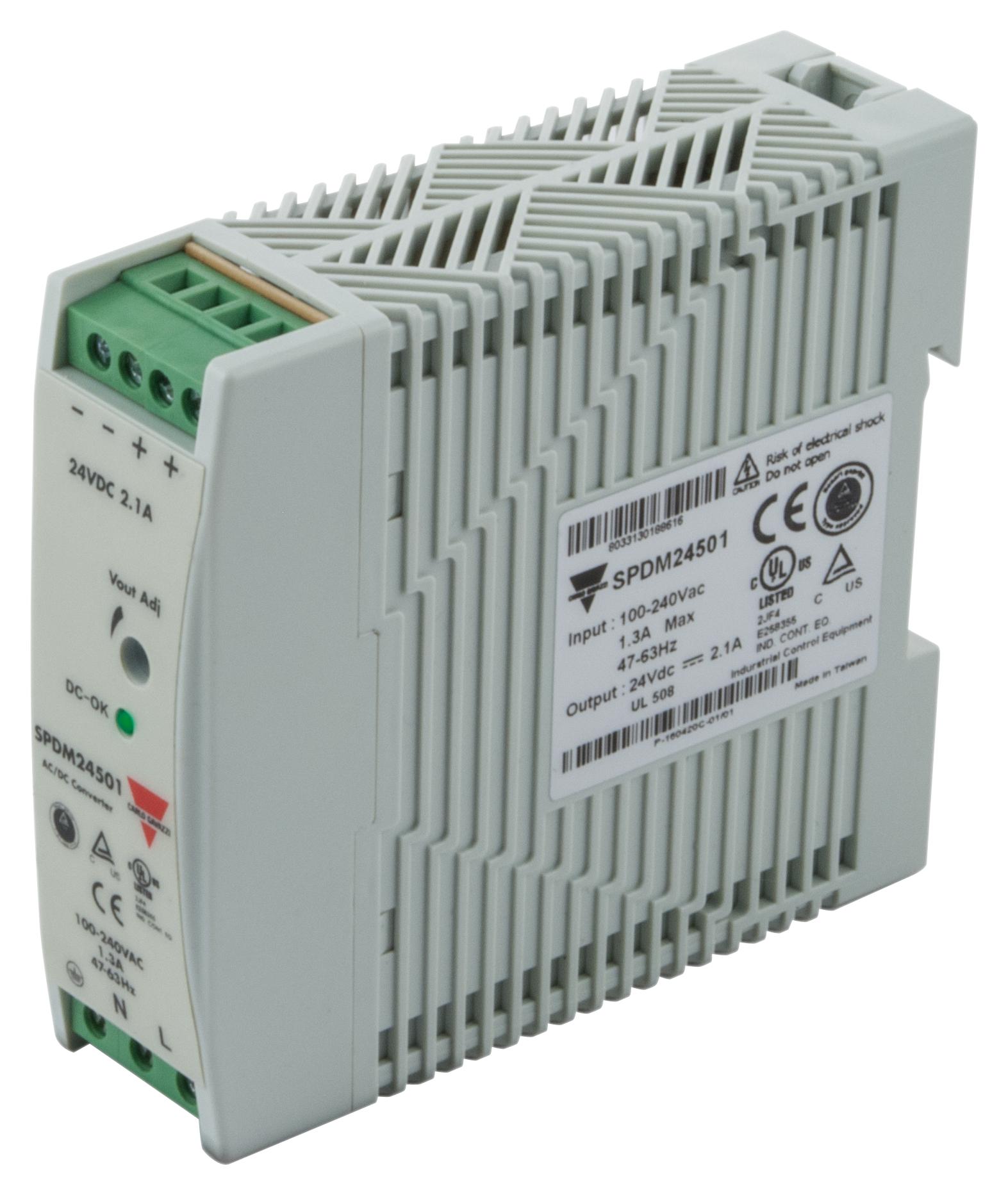

CARLO GAVAZZI SPDM24501 Industrial Power Supply
The SPDM Series switching power supplies are compact, high-efficiency units designed for DIN rail mounting in automation applications. They offer reliable 50W output with options for 12VDC or 24VDC, high efficiency up to 87%, and features like short circuit protection, internal input filters, and low standby power consumption. Suitable for industrial environments, these power supplies are protected against overcurrent, overvoltage, and have a wide input voltage range of 85-264VAC, making them ideal for various automation and control systems with DIN rail installation requirements.
CARLO GAVAZZI SPDM24501 Industrial Power Supply Specifications:
- Input Voltage Range: 85-264VAC or 120-375VDC
- Output Voltage: 12VDC or 24VDC
- Power Output: 50 Watts
- Output Current: 4A at 12V, 2.1A at 24V
- Efficiency: Up to 87%
- Frequency: 47/63Hz
- Power Dissipation: 8.0W at 12V, 8.8W at 24V
- Short Circuit Protection: Hiccup Mode
- Overvoltage Protection: 16.2-18VDC for 12V, 28.8-32.4VDC for 24V
- Operating Temperature: -25°C to +71°C
- MTBF: 556,000 Hours at 40°C
- Dimensions: 90 x 100 x 30mm
- Weight: 200g
- Certifications: CE, UL
- Approvals: IEC 61000-4-5 (Surge Protection), Pollution Degree 2
- Cooling: Free air convection
- Input Protection: Internal fuse T2A / 250VAC
- Inrush Current: 30/60A at 115/230VAC
- Leakage Current: 0.25mA
- Degree of Protection: IP20
- Humidity Range: 20-95% RH
Buy the Buy Carlo Gavazzi Switching Power Supply Part Number SPDM24501 Online
Purchase the Carlo Gavazzi SPDM24501 power supply online today to ensure your automation systems operate seamlessly. Designed for DIN rail installation, this high-efficiency 50W unit offers stable 24VDC output, UL and CE approvals, and advanced protections including overcurrent and overvoltage. With a compact size of 90x100x30mm and energy-saving features, it is ideal for industrial environments requiring reliable and efficient power for control units, sensors, and automation equipment. Secure your supply now and enhance your system's performance.
Buy Carlo Gavazzi SPDM24501 now and experience unmatched reliability and performance in industrial automation applications.
