CORNELL DUBILIER 225P22391WD3 Polyester Film Capacitor
The 225P series Orange Drop polyester film and foil capacitors are reliable, non-inductively wound components with extended aluminum foil, suitable for demanding industrial and electronic applications. Featuring conformal orange epoxy coating, these capacitors operate up to +125°C with proper derating, making them ideal for power supplies, instrumentation, audio amplifiers, and testing equipment. With proven dependability, wide availability through CDE distribution, and configurations for various voltage and capacitance ratings, they ensure consistent performance in fluctuating environments.
CORNELL DUBILIER 225P22391WD3 Polyester Film Capacitor Specifications:
- Capacitance Range: 0.00 to 1.0 uF
- Capacitance Tolerance: +5%, +10%, +20%
- Voltage Ratings: 100 to 600 Volts D-C, 70 to 200 Volts A-C
- Operating Temperature Range: -55°C to +85°C (full voltage), derated at +105°C (70%), +125°C (50%)
- Lead Wire: Tinned copper-clad steel, 0.8 diameter, #20 AWG
- Insulation Resistance: >100,000 MΩ at 25°C for < 0.25 pF, varied for other capacities and temperatures
- Dissipation Factor: 0.75% max at 1 KHz, +25°C
- Encapsulation: Orange, flame-retardant epoxy meets UL94V-0
- Dielectric/Construction: Non-inductive winding, polyester film with aluminum foil
- Maximum Pulse Rise Time (dV/dt): Varies from 600 to 23,300 V/μs depending on capacitance and voltage rating

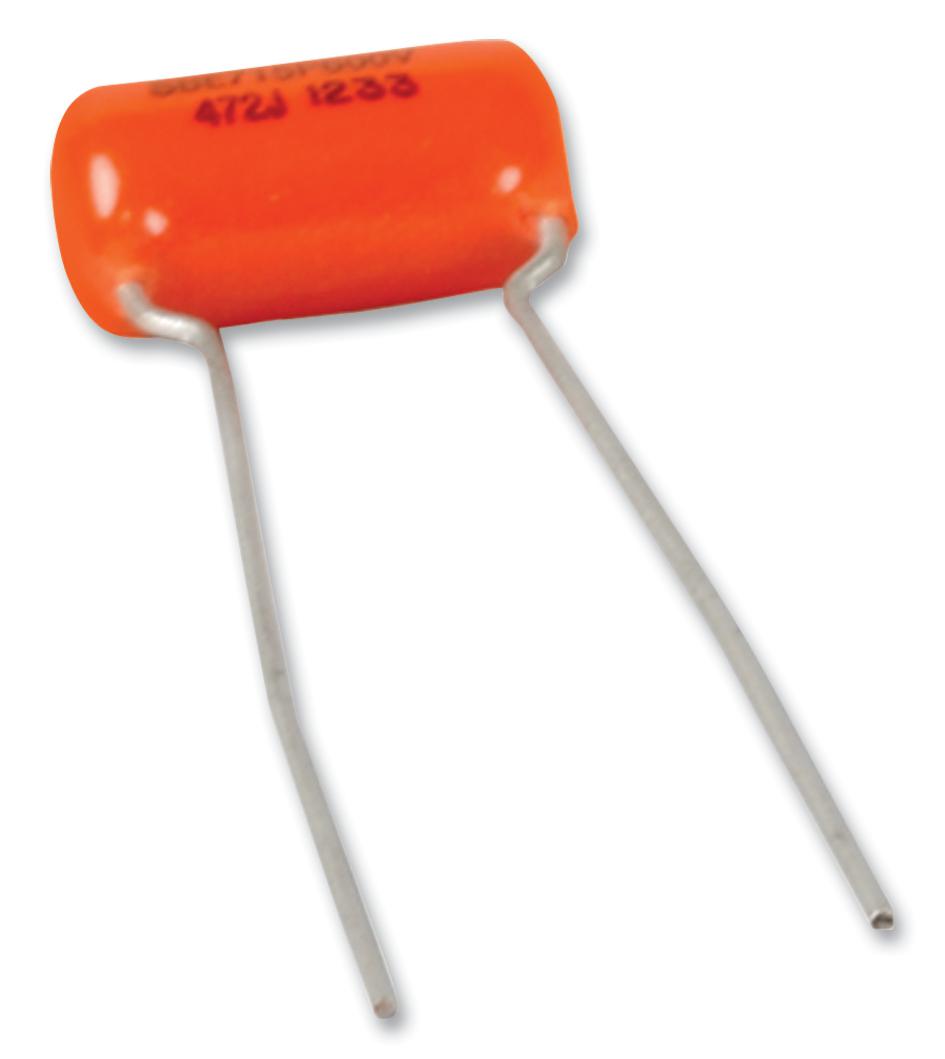

Buy the CDE Series 225P Orange Drop Polyester Capacitor: 225P22391WD3
Secure your application’s performance with CDE Series 225P Orange Drop polyester film capacitors, designed for reliability up to +125°C. Featuring durable orange epoxy encapsulation, high insulation resistance, and a wide voltage and capacitance range, these capacitors excel in power supplies, audio equipment, and industrial electronics. With extensive availability, proven dependability, and configurations for diverse needs, they ensure stable operation even in harsh environments. Order online today to enhance your electronic design with trusted, high-quality components that deliver consistent, long-lasting results.
Buy CDE Series 225P Orange Drop polyester capacitors now and experience unmatched reliability and performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 225P22391WD3?
You can click on the BUY or RFQ button to purchase 225P22391WD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 225P22391WD3?
You can download the 225P22391WD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 225P22391WD3?
CORNELL DUBILIER
