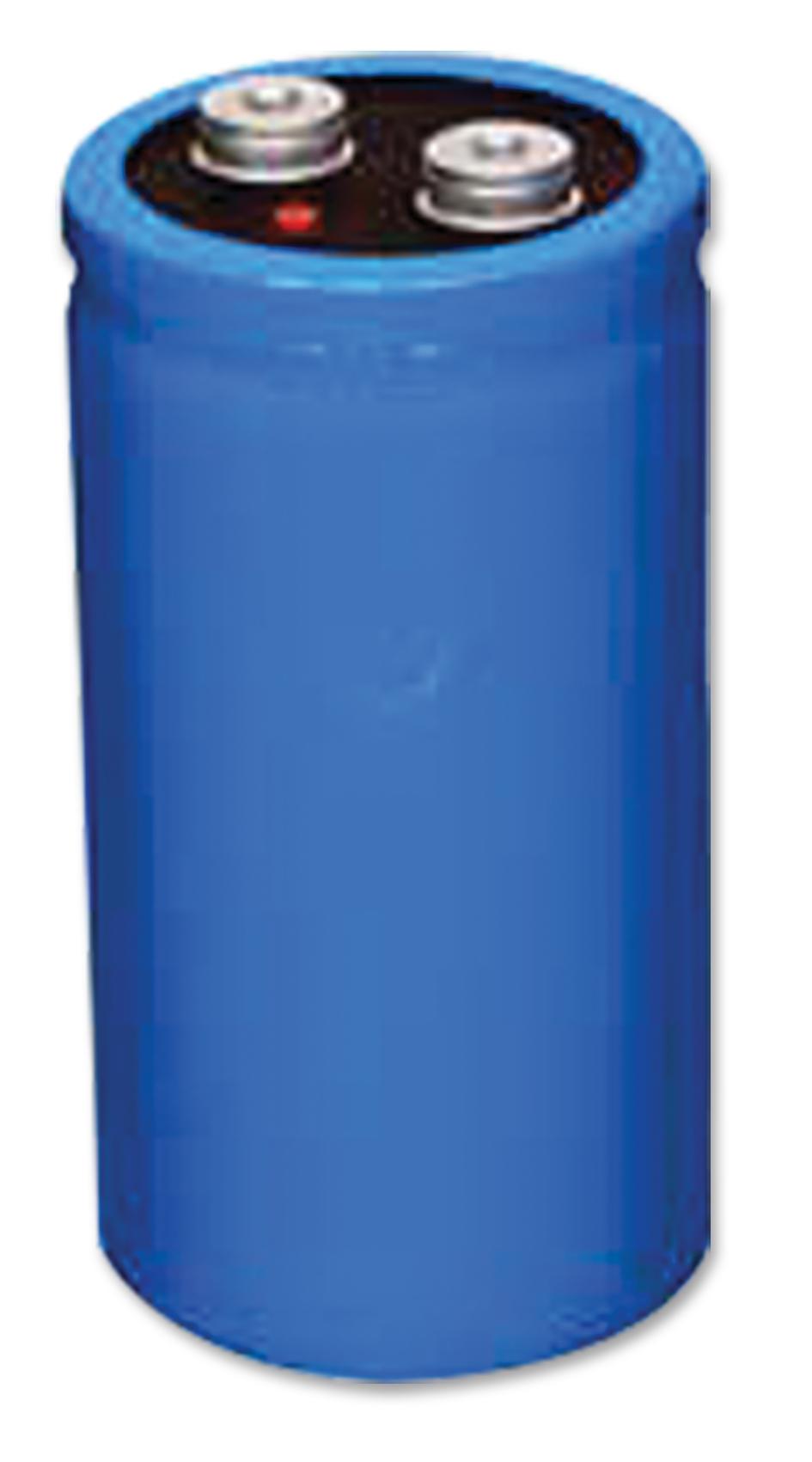

CORNELL DUBILIER DCMC182M400BJ5M High Capacitance Power Capacitor
The product is a high-capacitance screw terminal capacitor designed for power supply filtering and energy storage applications such as UPS systems and welding equipment. Constructed with Thermal-Pak extended cathode technology, it operates efficiently within a temperature range of 40°C to 85°C, with voltage ratings from 6.3 Vdc up to 550 Vdc. It offers a large capacitance range from 110 µF to 2.7 F, low leakage current, and robust ripple current capabilities, ensuring reliable performance in demanding electronic environments.
CORNELL DUBILIER DCMC182M400BJ5M High Capacitance Power Capacitor Specifications:
- Thermal-Pak extended cathode construction
- Temperature Range: 40°C to +85°C
- Rated Voltage Range: 6.3 Vdc to 550 Vdc
- Capacitance Range: 110 µF to 2.7 F
- Leakage Current: < 6 VCVPA, 6 mA max, at 5 min
- Impedance Ratio: < 20 (6.3-10 Vdc), <8 (16-50 Vdc), <4 (63-100 Vdc), <3 (150-550 Vdc)
- Endurance Life Test: 2000 h @ full load, 85°C, Capacitance +20%
- Shelf Life Test: 500h @85°C, Capacitance 100% of limit
- Vibration: 5 to 55 Hz, 0.06” and 10 g max, 1.5 h each axis
- RoHS Compliant
- Case diameters range from 1.375 inches to 3.5 inches with various lengths and terminal styles
- Stud dimensions vary from M6 to M12 with torque specifications between 25 and 60 Nm
- Low ESR and ripple capabilities at 120 Hz and 120°C
- Operating life in years vs ripple current performance
Buy the CDC Series High Capacitance ESR Capacitor: DCMC182M400BJ5M
Order the Cornell Dubilier high-capacitance screw terminal capacitor online today. Designed for power supply and energy storage circuits, with extensive voltage and capacitance options, it ensures reliable operation within 40°C to 85°C. Featuring robust construction with Thermal-Pak extended cathode technology, it provides low leakage, high ripple current capacity, and excellent endurance. Perfect for industrial equipment, UPS systems, welding equipment, and other demanding power applications, this capacitor guarantees efficiency, durability, and ease of installation for your electronics projects.
Buy Cornell Dubilier DCMC182M400BJ5M now and experience unmatched reliability and performance for your power and energy storage needs.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER DCMC182M400BJ5M?
You can click on the BUY or RFQ button to purchase DCMC182M400BJ5M from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part DCMC182M400BJ5M?
You can download the DCMC182M400BJ5M datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of DCMC182M400BJ5M?
CORNELL DUBILIER
