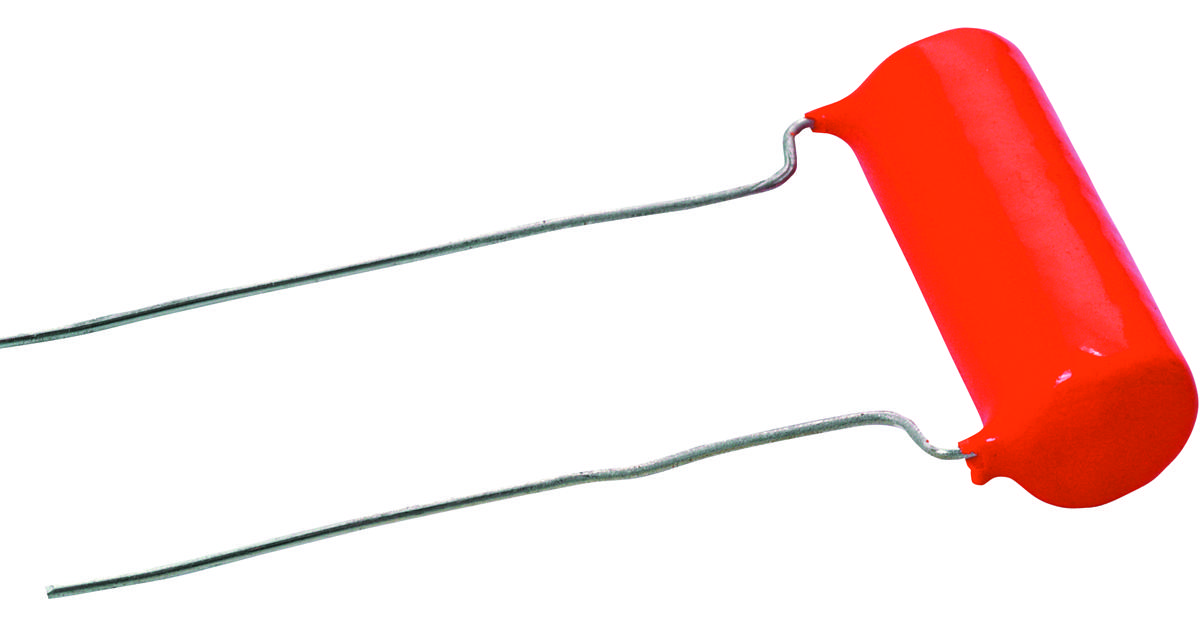

CORNELL DUBILIER 715P22356KD3 Orange Drop Capacitor
The 715P series Orange Drop film capacitor features polypropylene film with extended foil, ensuring low dissipation factor and excellent capacitance stability. Its round profile and direct lead connection make it suitable for high current, high pulse applications such as switching power supplies, resonant converters, and electronic lighting ballasts. It offers tight tolerances of ±1%, durable flame-retardant orange epoxy encapsulation, and proven reliability over decades. Ideal for demanding environments, it provides near-linear temperature coefficient and robust performance in resonant, inverter, and snubber circuits.
CORNELL DUBILIER 715P22356KD3 Orange Drop Capacitor Specifications:
- Capacitance Range: .00 to 1.0 uF
- Voltage Ratings: 100 to 600 Volts D-C, 70 to 200 Volts A-C
- Operating Temperature Range: -55°C to +85°C (full voltage), up to +125°C with derating
- Lead Wire: Tinned copper-clad steel, 032 (0.8) diameter, #20 AWG
- Insulation Resistance: 100,000 MO at +25°C for < .25 pF, 25,000 MO at +25°C for > .25 uF
- Dissipation Factor: Max 0.75% @ 1 KHz, +25°C
- Encapsulation: Flame-retardant orange epoxy conformal coating, UL94V-0
- Dielectric/Construction: Polypropylene film, extended foil, non-inductively wound
- Maximum Pulse Rise Time (dV/dt): See applicable voltage and capacitance values for specific ratings
- Temperature Coefficient: Near-linear, stable over temperature range
- Application: Suitable for snubbers, resonant circuits, high voltage inverters, power supplies, electronic lighting
- Reliability: Proven dependability over 35 years, certified for demanding electronics environments
Buy the CDE Series 225P Orange Drop Capacitors: 715P22356KD3
Enhance your electronic projects with the CDE Orange Drop Polyester Film Capacitor. Designed for high current and high pulse environments, it offers outstanding stability, low dissipation factor, and durability. Perfect for switching power supplies, resonant circuits, inverters, and lighting ballasts, this capacitor ensures reliable performance with tight tolerances and robust encapsulation. Order online today to benefit from proven dependability, easy availability, and advanced features that meet demanding industrial and commercial needs for high efficiency and safety.
Buy CDE Series 225P Orange Drop capacitors now and experience unmatched reliability and performance in high pulse, high voltage applications.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 715P22356KD3?
You can click on the BUY or RFQ button to purchase 715P22356KD3 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 715P22356KD3?
You can download the 715P22356KD3 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 715P22356KD3?
CORNELL DUBILIER
