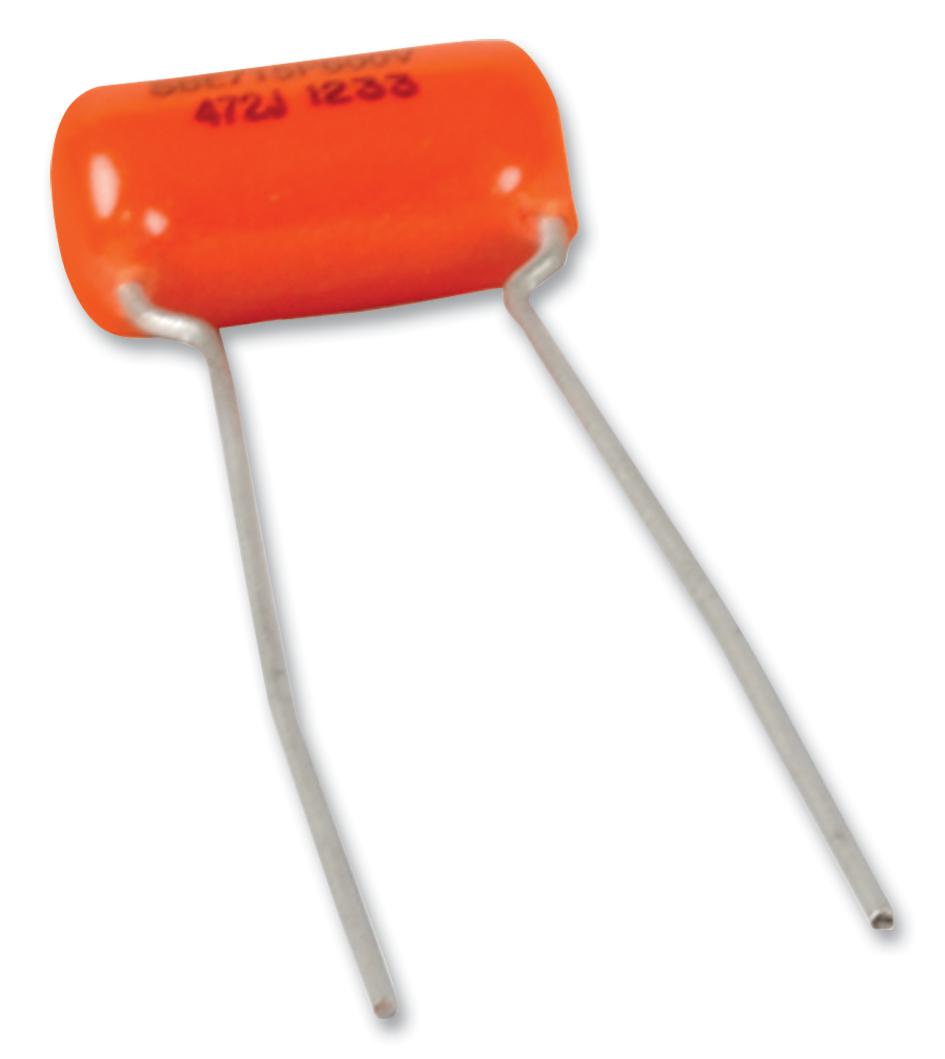

CORNELL DUBILIER 715P47354LD3 Polypropylene Capacitor
The 715P series Orange Drop polypropylene film capacitors are reliable, high-performance components designed for switching, high voltage power supplies, inverters, and resonant converters. Constructed with polypropylene film and extended foil, these capacitors offer excellent stability, low dissipation factor, and tight tolerances as close as +1%. Available in round and pressed profiles, they endure operating temperatures up to +105°C with proper voltage derating. Their flame-retardant conformal coating, high insulation resistance, and robust construction make them suitable for demanding electronic applications requiring high pulse capability and high-frequency performance.
CORNELL DUBILIER 715P47354LD3 Polypropylene Capacitor Specifications:
- Capacitance Range: 001 pF to 0.47 uF
- Capacitance Tolerance: +1% to 10%
- Voltage Ratings: 100 to 2000 Volts D-C, 70 to 500 Volts A-C
- Operating Temperature Range: -55°C to +85°C, up to +105°C with voltage derating
- Lead Wire: Tinned copper-clad steel, 032 (0.8 mm) diameter, #20 AWG
- Insulation Resistance: ≥400,000 MΩ at +25°C, ≥20,000 MΩ at +85°C, ≥2,000 MΩ at +105°C
- Dielectric: Polypropylene film
- Encapsulation: Flame-retardant orange epoxy conformal coating (UL94V-0)
- Construction: Non-inductively wound with extended foil
- Maximum Pulse Rise Time: See data, varies with voltage
- Corona Start Voltage: See data, varies with voltage
- Maximum Dissipation Factor: 0.01% to 0.093% depending on voltage and frequency
- Temperature Coefficient: -180 ppm/°C
- Maximum Operating Temperature: +105°C
Buy the CDE Cornell Dubilier 715P – Reliable Polypropylene Capacitors for Industrial Applications
Purchase your CDE Series polypropylene film capacitor online today and ensure your electronic systems are protected with dependable, high-quality components. Designed for demanding high pulse, high voltage applications, these polypropylene capacitors deliver excellent stability, low dissipation factor, and extended operational life up to +105°C. Featuring flame-retardant epoxy coating, tight tolerances, and various lead styles, they are perfect for switching power supplies, resonant converters, and electronic lighting ballasts. Order now to upgrade your projects with reliable, certified components for optimal performance and safety.
Order your CDE Series715P polypropylene film capacitor today and enhance your high pulse, high voltage electronic projects with proven reliability.
