CORNELL DUBILIER 953BXW12KSFF Metallized Polypropylene Film Capacitor
The 953B series metallized polypropylene film capacitors are designed for AC applications like UPS systems and output filtering. They feature UL 810 fail-safe recognition, fuse protection, low dissipation factor, and self-healing properties. These radial leaded boxes operate at temperatures up to 85°C with a service life of approximately 10,000 hours at rated voltage and 85°C. Made with UL94V-0 plastic cases, tin-plated copper terminals, and dry resin, they offer reliable performance for demanding electrical environments, ensuring safety and durability in industrial applications.
CORNELL DUBILIER 953BXW12KSFF Metallized Polypropylene Film Capacitor Specifications:
- Capacitance Range: 2.5 uF to 50 uF
- Capacitance Tolerance: +10% (±5% optional)
- Rated Voltage: 160 Vac, 250 Vac, 275 Vac
- Operating Temperature Range: -40°C to 85°C
- IEC Climatic Category: 40/85/56
- Service Life: 10,000 hours at rated voltage and 85°C
- Case Material: UL94V-0 plastic
- Resin Material: Dry Resin UL 94V-0
- Terminal Material: Tin Plated Copper
- Dimensions vary by model, typical case heights 20-57.5 mm and case widths 24-35 mm
- Protection: UL 810 fail-safe, fuse protection
- RoHS Compliant
- Type: Radial Leaded Box Capacitors

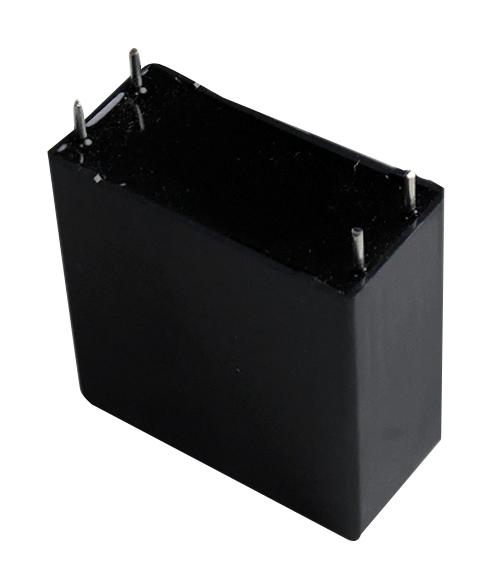

Buy the CDE Series 953B Metallized Polypropylene Capacitors: 953BXW12KSFF
Secure your electrical projects with the CDE 953BXW12KSFF metallized polypropylene capacitor. Designed for AC applications like UPS systems and output filtering, it features UL 810 recognition with fuse protection and a long 10,000-hour lifespan at 85°C. Constructed from high-quality UL94V-0 plastic and tin-plated copper terminals, this capacitor ensures durability, safety, and consistent performance. Perfect for demanding industrial environments, it offers reliable operation, low dissipation factor, and self-healing properties, making it an ideal choice for engineers and technicians seeking robust electrical components.
Buy CDE 953BXW12KSFF metallized polypropylene film capacitor now and ensure reliable surge filtering and fail-safe performance for your AC applications.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 953BXW12KSFF?
You can click on the BUY or RFQ button to purchase 953BXW12KSFF from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 953BXW12KSFF?
You can download the 953BXW12KSFF datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 953BXW12KSFF?
CORNELL DUBILIER
