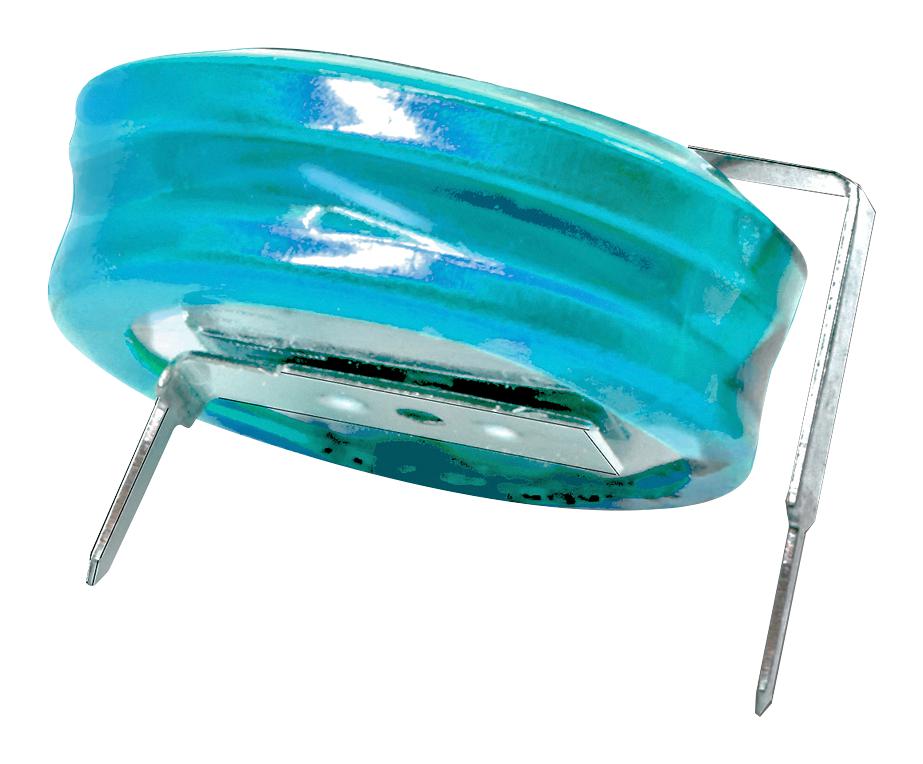

CORNELL DUBILIER EDC224Z5R5H Supercapacitor
The EDC224Z5R5H is a long-life electric double layer supercapacitor designed for high efficiency energy storage and backup applications. It offers high capacitance ranging from 0.047 F to 1.5 F in a thru-hole stacked coin type package, suitable for integrated circuit voltage backup and initial power delivery from batteries. Operating within -25°C to +70°C, it boasts excellent moisture, temperature cycling resistance, and high discharge current capabilities, making it ideal for reliable, long-term energy storage in demanding environments.
CORNELL DUBILIER EDC224Z5R5H Supercapacitor Specifications:
- Operating Temperature Range: -25 °C to +70 °C
- Rated Voltage Range: 5.5 Vdc to 6.3 Vdc
- Capacitance Range: 0.047 F to 1.5 F
- Life Test: Capacitance change +30% after 1000 h at +70°C, ESR <4 times initial
- Shelf Life: Capacitance change +30% after 1000 h without voltage at +70°C
- Moisture Resistance: Capacitance change +30% after 240h at +40°C, 90-95% RH
- Temperature Cycling: Maintains capacitance and ESR within +30% and less than 5x ESR change, respectively
- RoHS Compliant without Exemptions
- Case Code: 5R5, Capacitance Tolerance: +80/-20%, Voltage: 5.5V, Shape: Radial
Buy the Buy Cornell Dubilier EDC Series 0.22F Part Number EDC224Z5R5H Online
Enhance your energy backup and power delivery solutions with the Cornell Dubilier supercapacitor series. The EDC224Z5R5H offers high capacitance, long life, and reliable performance across a wide temperature range. Its compact thru-hole design ensures easy integration into various circuits, making it ideal for high discharge applications and continuous operation. Purchase online to benefit from fast delivery and expert support, ensuring your projects maintain optimal energy storage efficiency and durability over the long term.
Order your Cornell Dubilier EDC224Z5R5H supercapacitor today and ensure your energy storage systems achieve dependable long-term performance and stability.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER EDC224Z5R5H?
You can click on the BUY or RFQ button to purchase EDC224Z5R5H from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part EDC224Z5R5H?
You can download the EDC224Z5R5H datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of EDC224Z5R5H?
CORNELL DUBILIER
