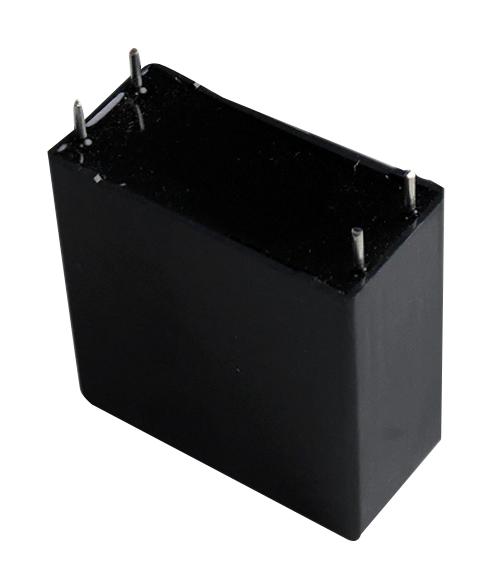

CORNELL DUBILIER 953BXW3P5KSFF AC Output Filter Capacitor
The 953B metallized polypropylene film capacitor is designed for AC output filtering and UPS systems, featuring fuse protection, UL 810 recognition, low dissipation factor, and self-healing properties. Rated for voltages up to 275 Vac and operating temperatures up to 85°C, it ensures fail-safe performance with a service life of 10,000 hours. Constructed with a UL94V-0 plastic case, dry resin, and tin-plated copper terminals, this capacitor offers reliable, high-performance filtering suitable for industrial and electronic applications.
CORNELL DUBILIER 953BXW3P5KSFF AC Output Filter Capacitor Specifications:
- Capacitance Range: 2.5 uF to 50 uF
- Capacitance Tolerance: +10% (±5% optional)
- Rated Voltage: 160 Vac, 250 Vac, 275 Vac
- Operating Temperature Range: -40°C to 85°C
- IEC Climatic Category: 40/85/56 (40°C, 93% RH, 1000 hours)
- Service Life Objective: 10,000 hours at rated voltage and 85°C
- Case Material: Plastic UL94V-0
- Resin Material: Dry Resin UL 94V-0
- Terminal Material: Tin Plated Copper
- Dimensions vary by case code, typically around 24-35 mm W, 37-57.5 mm H, and 37.5-52.5 mm L
- Protection: UL 810 recognized, Fail-safe fuse pattern
- Mounting: Radial leaded box style
- RoHS Compliant
Buy the CDE Cornell Dubilier 953BXW3P5KSF – Reliable AC Output Filter Capacitor for Industrial Applications
Enhance your electronic or industrial systems with the high-quality 953BXW3P5KSF capacitor, engineered for AC output filtering. Featuring fuse protection, UL 810 fail-safe recognition, and rated for voltages up to 275 Vac, this capacitor ensures reliable operation at temperatures up to 85°C. Its self-healing design and long service life of 10,000 hours make it ideal for critical filtering applications. Constructed with durable UL94V-0 plastic, dry resin, and tin-plated copper terminals, it guarantees high performance and safety in demanding environments.
Buy Cornell Dubilier 953BXW3P5KSF now and experience unmatched reliability and high-performance filtering for your industrial and electronic applications.
