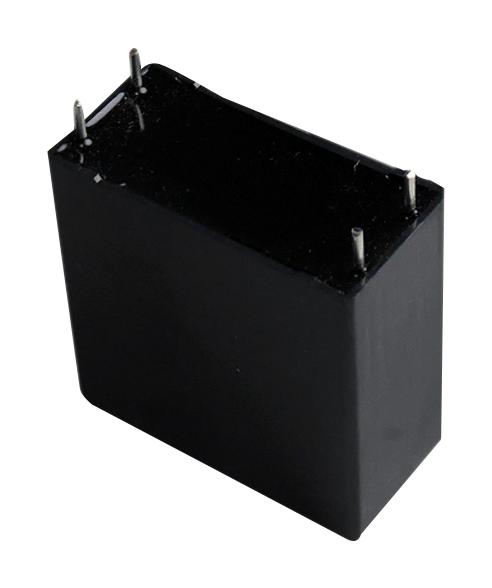

CORNELL DUBILIER 953BXW4KSFF Industrial Capacitor
The 953B metallized polypropylene film capacitors are designed for AC applications like UPS systems and output filtering. Featuring fuse protection and UL 810 recognition, these capacitors operate reliably at temperatures up to 85°C. They have a capacitance range of 2.5 to 50 uF with ±10% tolerance, rated voltages of 160, 250, and 275 Vac, and a service life of 10,000 hours. Constructed with UL94V-0 plastic cases, tin-plated copper terminals, and dry resin, they ensure self-healing and low dissipation factor for durable operation in industrial environments.
CORNELL DUBILIER 953BXW4KSFF Industrial Capacitor Specifications:
- Capacitance Range: 2.5 uF to 50 uF
- Capacitance Tolerance: +10 % (±5% optional)
- Rated Voltage: 160 Vac, 250 Vac, 275 Vac
- Operating Temperature Range: -40 °C to 85 °C
- IEC Climatic Category: 40/85/56
- Service Life: 10,000 hours at 85 °C and rated voltage
- Protection: UL 810 fail-safe, UL file number E71645
- Construction: Plastic case UL94V-0, dry resin UL 94V-0
- Terminal Material: Tin plated copper
- Dimensions vary by case code; typical case sizes are A, B, C, D, E, F with width from 20mm to 35mm
Buy the CDE Cornell Dubilier 953BXW4KSF – Reliable Metallized Polypropylene Capacitors for Industrial Applications
Order the Cornell Dubilier 953BXW4KSF online today to ensure high reliability and safety in your industrial applications. Designed with fuse protection and UL recognition, these metallized polypropylene capacitors operate efficiently up to 85°C. Available in various capacitance values from 2.5 to 50 uF and rated voltages of 160, 250, and 275 Vac, they are ideal for UPS systems, output filtering, and other AC applications. Experience quick delivery, trusted quality, and superior performance by purchasing online now.
Get Cornell Dubilier 953BXW4KSF today—built for fail-safe operation and long-lasting durability in UPS and filtering circuits.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER 953BXW4KSFF?
You can click on the BUY or RFQ button to purchase 953BXW4KSFF from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part 953BXW4KSFF?
You can download the 953BXW4KSFF datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of 953BXW4KSFF?
CORNELL DUBILIER
