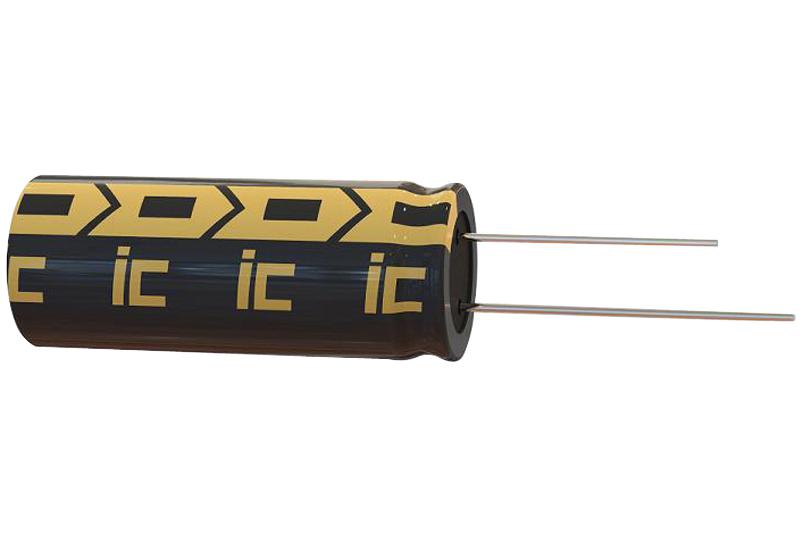

CORNELL DUBILIER DGH335Q2R7 Supercapacitor
This low ESR supercapacitor is designed for rapid charge and discharge cycles, providing high power density and extended durability. Suitable for energy harvesting, backup power, pulse applications, displays, actuators, and audio systems, it operates across a temperature range of -40°C to +85°C and features a capacitance of 100F to 470F. Encased in a robust case with vent and insulator, it ensures low leakage current, long service life, and high reliability, making it ideal for industrial and electronic applications requiring fast energy delivery and efficient energy storage.
CORNELL DUBILIER DGH335Q2R7 Supercapacitor Specifications:
- Capacitance: 100F to 470F
- Voltage: 2.7V to 5.8V DC
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +70°C
- ESR: <200% of initially specified values
- Leakage Current: <100% of rated maximum
- Life: 1000 hours at 65°C with rated voltage
- Cycle Life: 500,000 cycles at 25°C
- Case Diameter: D=8 to 18mm
- Dimensions: Varies with capacitance, typical size 17x15x8.5mm to 26x27x13mm
- Lead Spacing: 12mm to 18mm
- Maximum Temperature: +85°C
- RoHS Compliant
- Application: Energy harvesting, backup power, pulse power, displays, actuators, audio systems
Buy the Satsuma DGH335Q2R7 – Reliable Supercapacitor for Industrial Applications
Purchase the Satsuma supercapacitor DGH335Q2R7 today for your energy storage needs. With high capacitance ranging from 100F to 470F, low ESR, robust construction, and wide operating temperature range, it is designed for energy harvesting, backup, pulse applications, and more. Its long cycle life and reliability make it ideal for industrial applications, electronics, and energy management systems. Order online now and ensure your projects benefit from durable, high-performance supercapacitors with fast charge/discharge capabilities.
Get Satsuma DGH335Q2R7 today—built for rapid charge/discharge cycles and long-lasting performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy CORNELL DUBILIER DGH335Q2R7?
You can click on the BUY or RFQ button to purchase DGH335Q2R7 from an authorized CORNELL DUBILIER distributor.
How do I troubleshoot issues or seek technical support for part DGH335Q2R7?
You can download the DGH335Q2R7 datasheet or visit the CORNELL DUBILIER website for support.
Who is the manufacturer of DGH335Q2R7?
CORNELL DUBILIER
