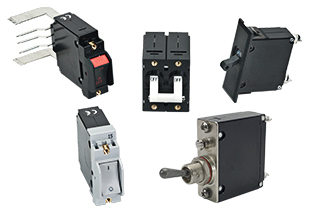

Carling Technologies AB4X0024581D1C Hydraulic-Magnetic Circuit Breaker
CARLING TECHNOLOGIES' A-Series hydraulic-magnetic circuit breakers are designed for precise operation in a compact form factor. These breakers are ideal for a wide range of applications, including marine, telecom, renewable energy, and industrial automation. They offer configurations from one to six poles, rated up to 50 amps, 277VAC/80VDC, and a maximum interrupting capacity of 7,500 amps. The Visi Rocker® and recessed paddle actuators provide clean front panel designs, while the metal toggle configuration is suitable for harsh environments. The breakers incorporate trip-free mechanisms and auxiliary switch options for enhanced functionality and monitoring.
Carling Technologies AB4X0024581D1C Hydraulic-Magnetic Circuit Breaker Specifications:
- Operating Temperature: −40° C to +85° C
- Maximum Voltage: 277VAC, 50/60 Hz; 80VDC
- Max IC: 7,500 amps
- Poles: 1-6
- Amps: Up to 50
- Insulation Resistance: Minimum: 100 Megohms at 500 VDC
- Dielectric Strength: UL, CSA - 1500V 60 Hz for one minute
- Auxiliary Switch Rating: SPDT; 10.1 A - 250VAC, 1.0 A-65VDC/0.5 A - 80 VDC, 0.1A - 125VAC (with gold contacts)
- Weight: Approximately 65 grams/pole (Approximately 2.32 ounces/pole)
Buy the AB4-X0-02-458-1D1-C CARLING TECHNOLOGIES Hydraulic-Magnetic Circuit Breaker | myMectronic
Purchase the CARLING TECHNOLOGIES AB4-X0-02-458-1D1-C Hydraulic-Magnetic Circuit Breaker securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Carling Technologies AB4X0024581D1C?
You can click on the BUY or RFQ button to purchase AB4X0024581D1C from an authorized Carling Technologies distributor.
How do I troubleshoot issues or seek technical support for part AB4X0024581D1C?
You can download the AB4X0024581D1C datasheet or visit the Carling Technologies website for support.
Who is the manufacturer of AB4X0024581D1C?
Carling Technologies
